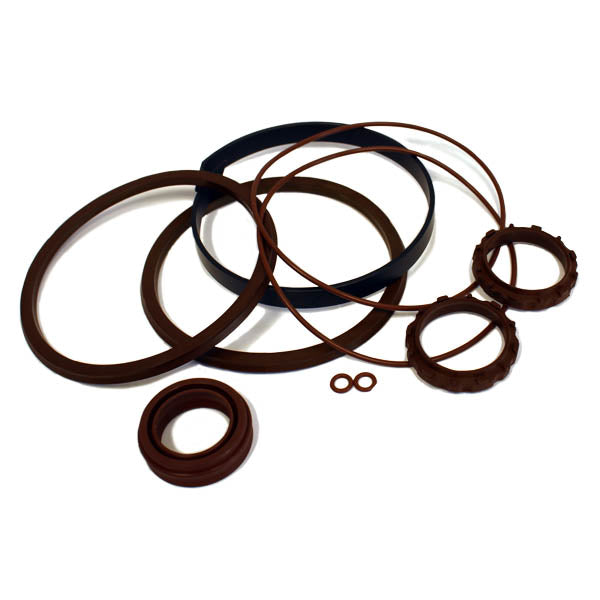

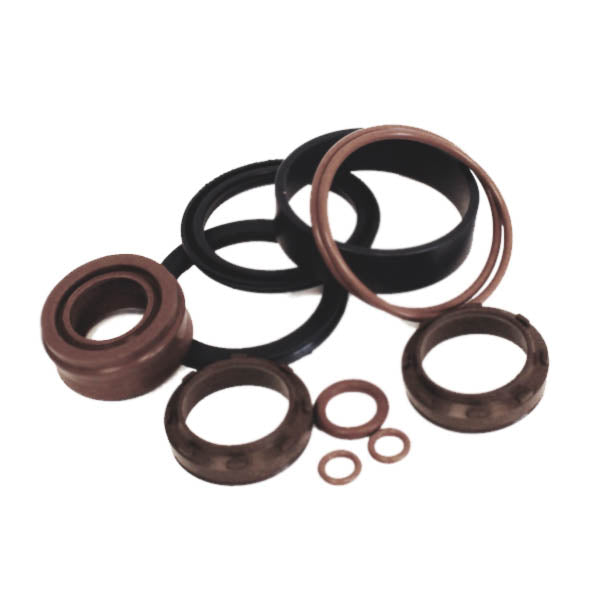

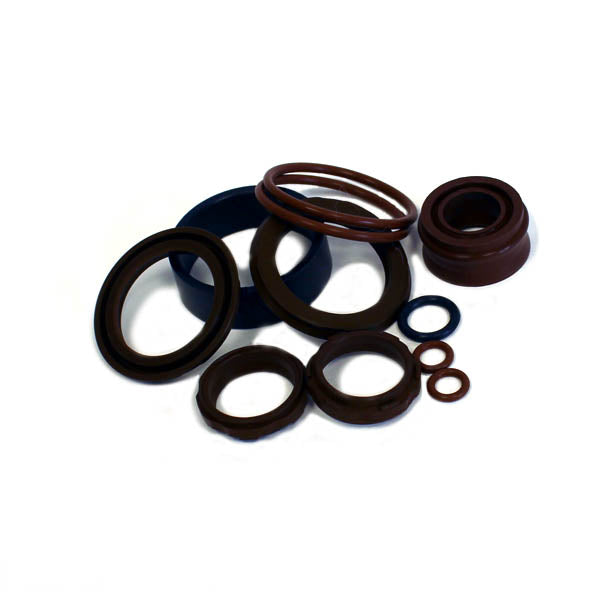

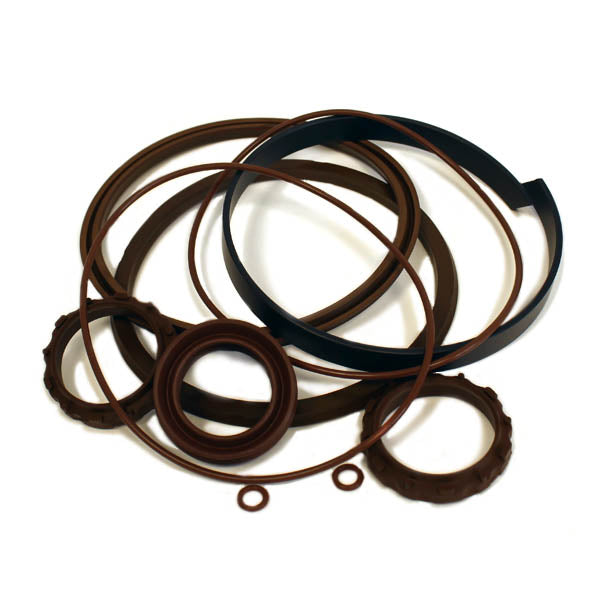

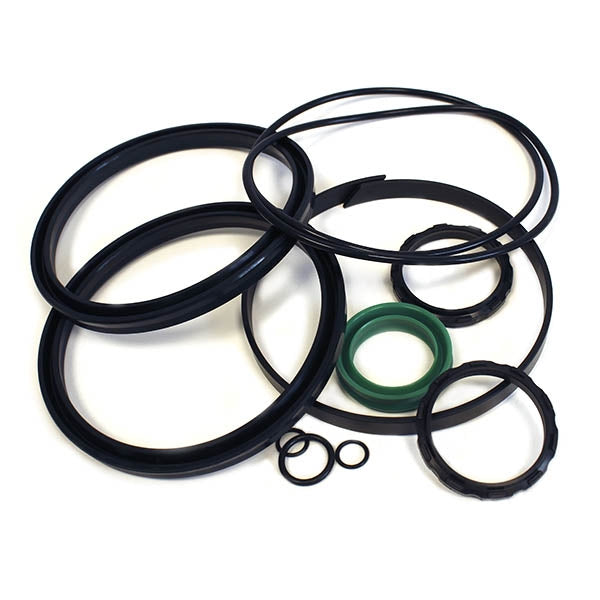

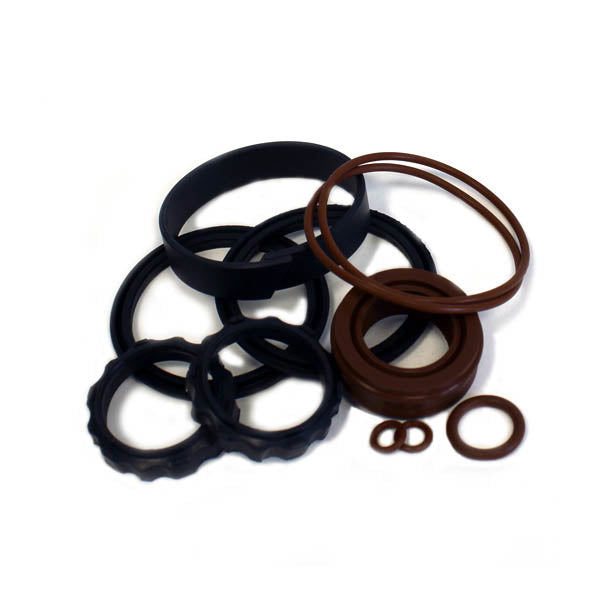

Seal repair kits are intended for repairing dismantlable pneumatic cylinders of series SC-CPI produced by 'Specialist'.
| Name | Material | Quantity | Code |
|---|---|---|---|
| Rod Seal Ring | NBR | 1 | — |
| Rod Collar | Polyurethane | 1 | SC-SE-Diameter-6 |
| Piston Collar | NBR | 2 | SC-SE-Diameter-7 |
| Anti-friction Ring | PTFE | 1 | SC-SE-Diameter-11 |
| Cover Seal Ring | NBR | 2 | SC-SE-Diameter-12 |
| Rubber Shock Absorber Washers | NBR | 2 | SC-SE-Diameter-13 |
| Air Damping Seal | NBR | 2 | — |
To choose rubber seals and collars, you need to select the diameter of the pneumatic cylinder from 32 to 100 mm. For example, to order a seal repair kit for a pneumatic cylinder SC-CPI-32×200-S, you need to select diameter 32. The stroke of the cylinder does not matter when choosing collars.
By default, we sell kits of rubber rings and collars made of NBR, but upon request, we can supply seals made of VITON.
| Material | NBR (Nitrile Rubber) | Viton (Fluorocarbon Rubber) |
|---|---|---|
| Temperature | from -30 to +100° C | from -20 to +210° C At a temperature of -15° C Viton becomes hard and non-flexible, which can cause breakages |
| Resistance | Resistant to water, petroleum-based oils, aliphatic hydrocarbons. Resistance to tearing and abrasion. | Wider range of resistance: to mineral acids, oxidation, ozone, petroleum-based oils, most fuels and lubricants, halogenated hydrocarbons, silicone fluids and aromatic gases. Resistant to mold and fungi, UV radiation. |
| Price | Lower cost | More expensive than NBR |
You can order other cylinder parts for SC-CPI and SC-DNG by calling the online store hotline.
