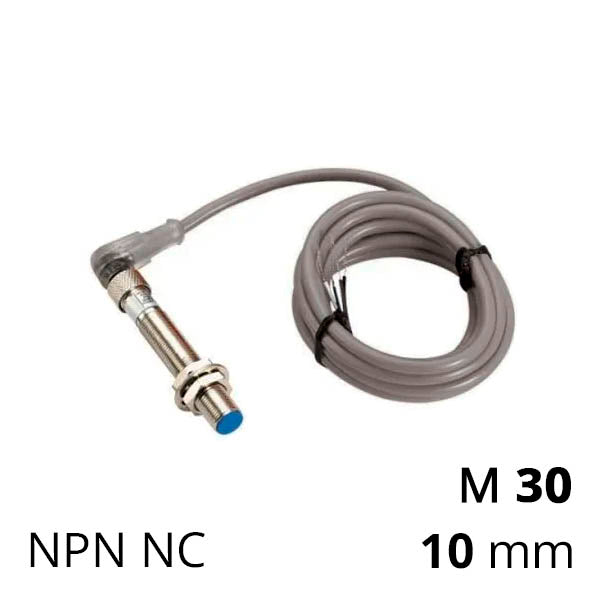

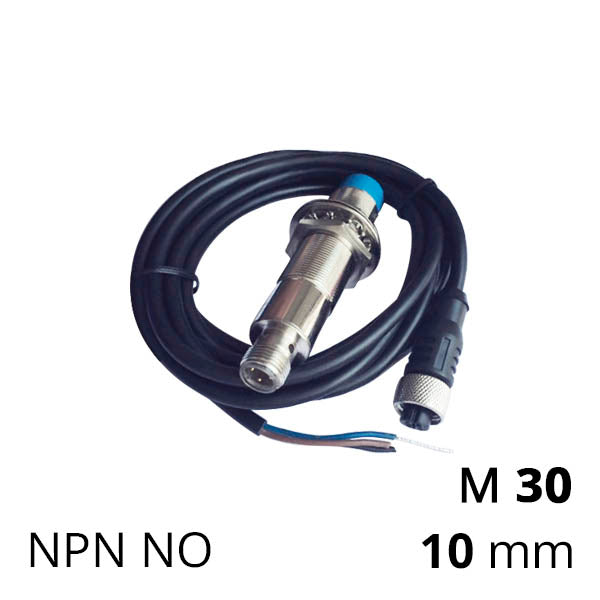

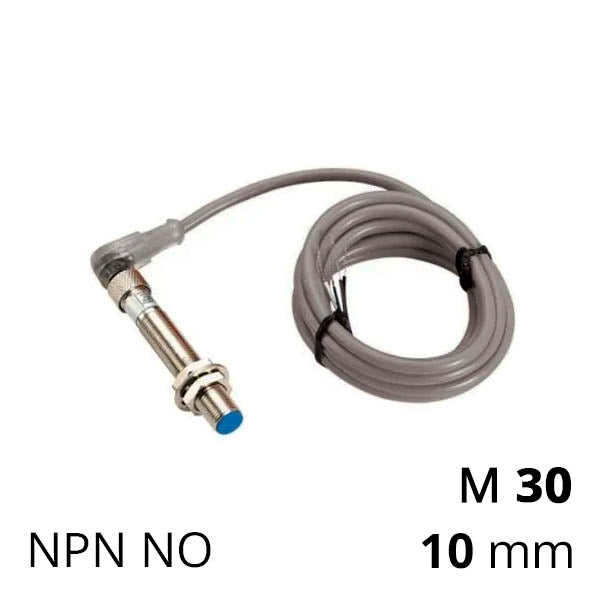

Inductive proximity sensor NPN, M30, distance up to 10 mm (TKI/TKL series)

Do you have any questions about the product?
We will be happy to answer them in messengers

Inductive proximity sensor NPN, M30, distance up to 10 mm (TKI/TKL series)

Name: Inductive proximity sensor NPN, M30, distance up to 10 mm (TKI/TKL series)
Brand: Specialist
SKU: SPLC-TKI/TKL-30N10C/30NC10C
Price: 831.90 UAH
Availability: BackOrder

On order

Type of transistor output

NPN NC NPN NO

Роз'єм

Кутовий Прямий

Model

SPLC-TKI/TKL-30N10C/30NC10C

Manufacturer

Specialist

1 280,77 UAH

-35%

from 831,90 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SPLC-TKI-30N10C

Inductive proximity sensor NPN, M30, distance up to 10 mm (TKI/TKL series)

Type of transistor output=NPN NO Роз'єм=Прямий

SPLC-TKI-30N10C

1 280,77 UAH 831,90 UAH

Pre-Order

SPLC-TKL-30N10C

Inductive proximity sensor NPN, M30, distance up to 10 mm (TKI/TKL series)

Type of transistor output=NPN NO Роз'єм=Кутовий

SPLC-TKL-30N10C

1 280,75 UAH 831,90 UAH

Pre-Order

SPLC-TKI-30NC10C

Inductive proximity sensor NPN, M30, distance up to 10 mm (TKI/TKL series)

Type of transistor output=NPN NC Роз'єм=Прямий

SPLC-TKI-30NC10C

1 280,77 UAH 831,90 UAH

Pre-Order

SPLC-TKL-30NC10C

Inductive proximity sensor NPN, M30, distance up to 10 mm (TKI/TKL series)

Type of transistor output=NPN NC Роз'єм=Кутовий

SPLC-TKL-30NC10C

1 280,75 UAH 831,90 UAH

Pre-Order

Technical specifications

Transistor output type

NPN NC, NPN NO

Роз'єм

Кутовий, Прямий

Delivery time

60 днів

Description

Non-contact inductive sensor with 24V DC NPN-type SE-SEN-TKІ(L)-30N(C)10C is used for proximity detection, position control, counting, and speed determination of metallic target objects. The actuation distance of the limit switch for metals — up to 10 mm. This model includes a transistor and electronic components capable of withstanding an external load of up to 200 mA, high resistance to electromagnetic interference thanks to the optimal frequency of 100 Hz, moisture-resistant IP66 housing, visible 360-degree light indication, round pin-3 or pin-4 connector for cable connection — quality 3-core signal cable of 2 m length included.

Technical specifications table of magnetic-inductive proximity sensor SE-SEN-TKІ(L)-30N(C)10C
Output type	3-wire NPN NO or NPN NC
Detector	Metal detection (steel, stainless steel, chrome, nickel, copper, aluminium, etc.)
Standard detection object	Iron plate 30×30×1 mm
Detection distance	Sn = 10 mm
Effective operating distance	from 0 to 8 mm
Frequency	≤100 Hz
Power supply	DC 10…30 Volt
Max. load	≤200 mA
Housing	Screw-threaded cylindrical with M30 thread
Connection	Cable 2 metres long
IEC Protection class	IP66

NPN Type VBI Sensor Connection Diagram
