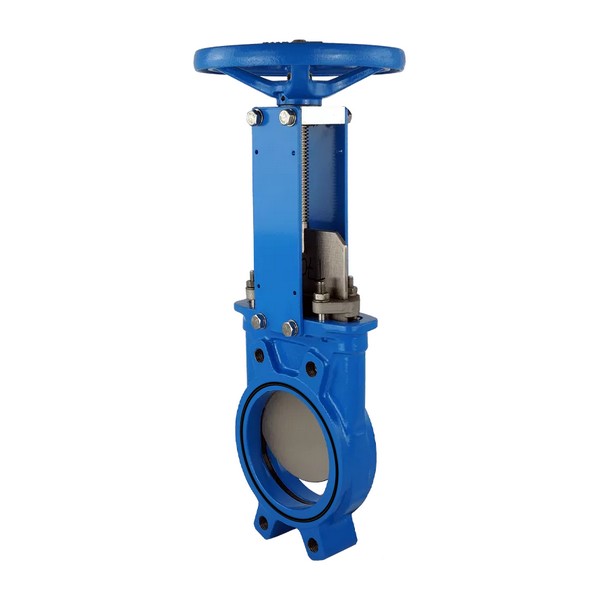

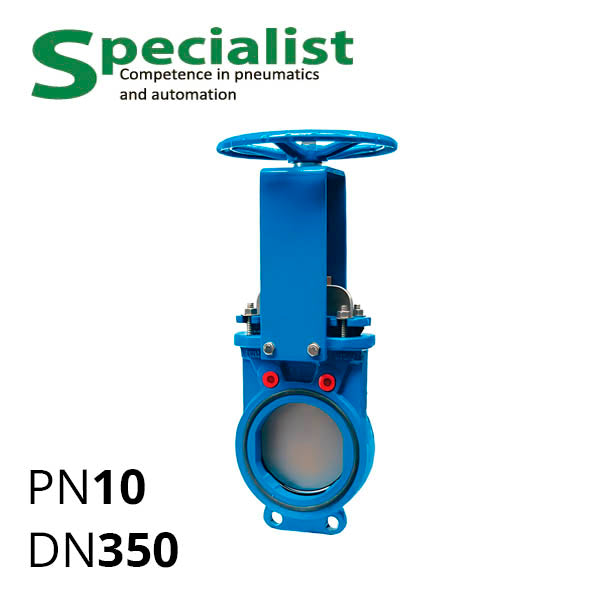

Knife gate latch DU 350 cast iron SCBF-PZ673X-10JC-350 with flywheel

The SCBF-PZ673X-10JC-350-M model is a cast iron wedge gate valve, wafer type DN350 PN10 with rising stem and handwheel for manual closure. This bidirectional knife gate valve DN 350 made of cast iron is designed to operate with media without pressure or under pressure 9.8 bar and temperature up to 80°C, including for gas, liquids, and bulk materials.

The company “Specialist” offers production of knife gate valves based on series from the online store, but with customer-required modifications: with rubberized wedge, made of stainless steel, more compact without rising stem, with high-temperature rubber EPDM or Viton. We will select materials suitable for your working environment

Features of the standard knife gate valve SCBF-PZ673X-10JC-350-M with DN350

• Reinforced NBR. Rubber seal reinforced with steel wire around the entire perimeter of the seat under the wedge — helps maintain shape, increases lifespan, and ensures tightness.
• Rising stem. Serves as an indication of the position of the DN 350 gate valve and is a more reliable construction.
• WCB. Although WCB is called cast iron, in fact, it is cast carbon steel — it is more impact-resistant and withstands high pressure, which is essential for industrial shutdown valves.
• Standard flange connection: PN10, PN16, 10K, 150LB, TABLED, DIN.
• Working pressure: 10 kg/cm² for DN350. This is when converting pressure into other units 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Designation PN 10.
