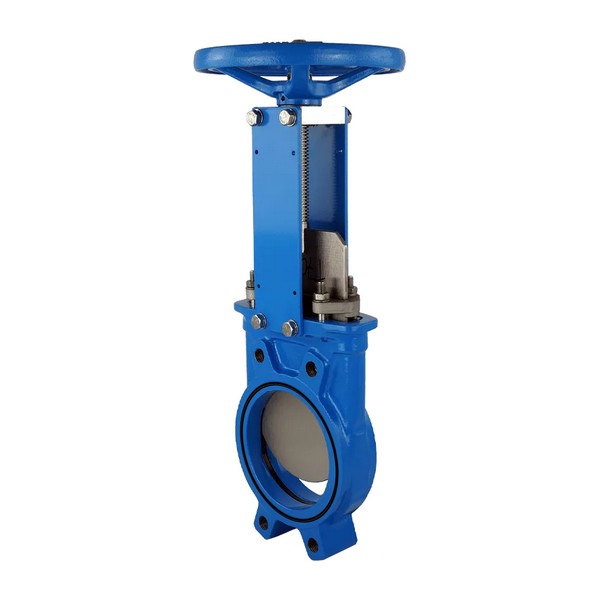

Knife gate latch DU 100 cast iron SCBF-PZ673X-10JC-100 with flywheel

Model SCBF-PZ673X-10JC-100-M is a cast iron wedge gate valve flanged DN100 PN10 with non-rising stem and handwheel for manual closure. This bidirectional knife gate valve DN 100 made of cast iron is designed to operate with working media without pressure or under pressure 9.8 bar and temperature up to 80°C, including for gases, liquids, and bulk materials.

The company “Specialist” offers production of knife gate valves based on series from the online store, but with customer-required modifications: with rubber coating of the wedge, made of stainless steel, more compact without rising stem, with high temperature rubber EPDM or Viton. We will select materials for your working environment

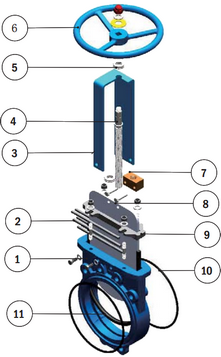

Standard Gate Valve Design Features SCBF-PZ673X-10JC-100-M with DN100

• Reinforced NBR. Rubber sealing reinforced with steel wire around the entire perimeter of the seat under the wedge — helps maintain shape, increases durability and tightness.
• Rising Stem. Serves as an indicator for the position of the gate valve DN 100, and is also a more reliable construction.
• WCB. Although WCB is called cast iron, in fact it is cast carbon steel — it is more impact resistant and withstands high pressure, which is important for industrial valve equipment.
• Standard Flanged Connection: PN10, PN16, 10K, 150LB, TABLED, DIN.
• Operating Pressure: 10 kg/cm² for DN100. This translates to 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Designation PN 10.
