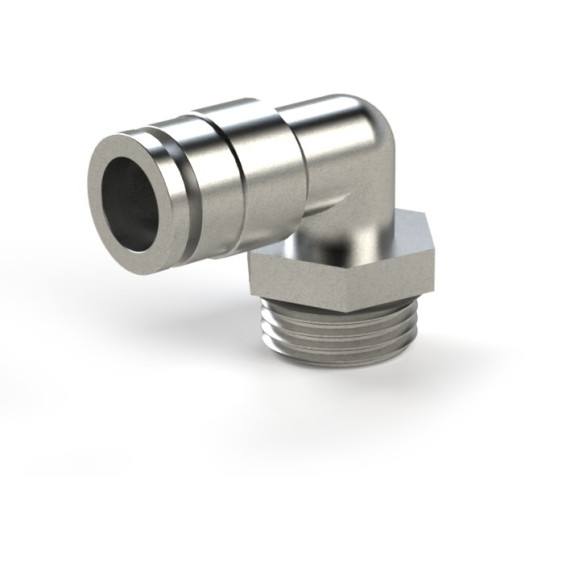

Bronze fitting SF-MPL series angle collet adapter with external thread

Name: Bronze fitting SF-MPL series angle collet adapter with external thread
Brand: Specialist
SKU: SF-MPL 4-G01
Price: 92.34 UAH
Availability: InStock

In Stock

Tube O.D.

12 mm 10 mm 8 mm 6 mm 4 mm

Thread

G 1/2 G 1/4 G 1/8 G 3/8

Model

Manufacturer

Specialist

from 92,34 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 16 variants


Name

Model Price Availability Qty

Action

SF-MPL 4-G01

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=4 mm Thread=G 1/8

SF-MPL 4-G01

92,34 UAH

In Stock

SF-MPL 4-G02

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=4 mm Thread=G 1/4

SF-MPL 4-G02

100,26 UAH

In Stock

SF-MPL 6-G01

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=6 mm Thread=G 1/8

SF-MPL 6-G01

102,90 UAH

In Stock

SF-MPL 6-G02

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=6 mm Thread=G 1/4

SF-MPL 6-G02

102,90 UAH

In Stock

SF-MPL 6-G03

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=6 mm Thread=G 3/8

SF-MPL 6-G03

116,04 UAH

In Stock

SF-MPL 8-G01

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=8 mm Thread=G 1/8

SF-MPL 8-G01

122,64 UAH

In Stock

SF-MPL 8-G02

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=8 mm Thread=G 1/4

SF-MPL 8-G02

123,96 UAH

In Stock

SF-MPL 8-G03

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=8 mm Thread=G 3/8

SF-MPL 8-G03

137,16 UAH

In Stock

SF-MPL 8-G04

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=8 mm Thread=G 1/2

SF-MPL 8-G04

154,32 UAH

In Stock

SF-MPL 10-G01

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=10 mm Thread=G 1/8

SF-MPL 10-G01

150,36 UAH

In Stock

SF-MPL 10-G02

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=10 mm Thread=G 1/4

SF-MPL 10-G02

168,84 UAH

In Stock

SF-MPL 10-G03

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=10 mm Thread=G 3/8

SF-MPL 10-G03

168,84 UAH

In Stock

SF-MPL 10-G04

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=10 mm Thread=G 1/2

SF-MPL 10-G04

158,28 UAH

In Stock

SF-MPL 12-G02

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=12 mm Thread=G 1/4

SF-MPL 12-G02

200,46 UAH

In Stock

SF-MPL 12-G03

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=12 mm Thread=G 3/8

SF-MPL 12-G03

191,22 UAH

In Stock

SF-MPL 12-G04

Bronze fitting SF-MPL series angle collet adapter with external thread

Tube O.D.=12 mm Thread=G 1/2

SF-MPL 12-G04

211,02 UAH

In Stock

Technical specifications

Tube O.D.

4 мм, 6 мм, 8 мм, 10 мм, 12 мм

Connection type

Collet fitting, With external thread

Thread

G 1/2", G 1/4", G 1/8", G 3/8"

Body material

Nickel-plated bronze

Variations

Union

Delivery time

1 день, 60 днів

Fitting type

Angular 90°

Description

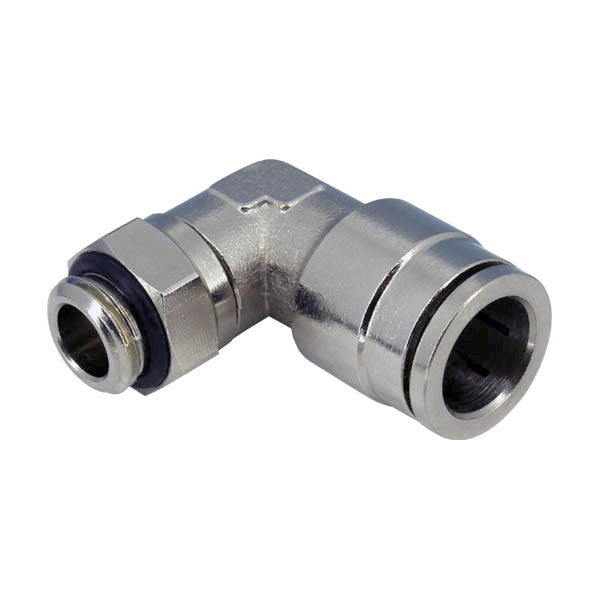

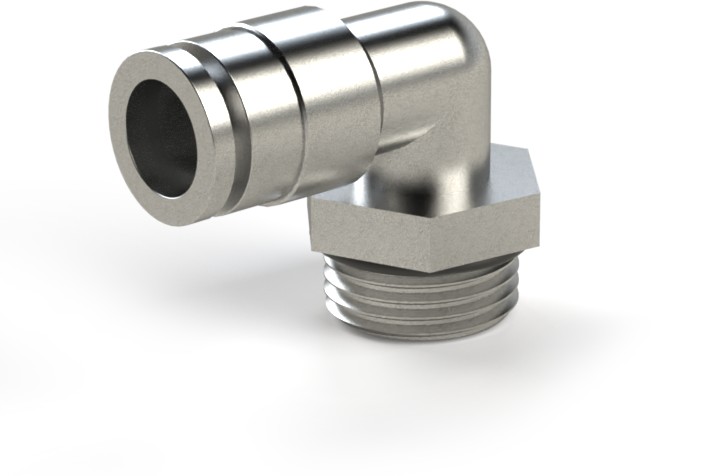

The Bronze Quick-Release Fitting SF-MPL Series is an L-shaped Angle Adapter with External Thread featuring a metal body and a push-in coupler. Designed for multiple and quick push-in connections of flexible polyethylene, polyurethane, and polyamide tubes, designed to transport compressed air, water, or other fluids or gases compatible with NBR seals.

SF-MPL Series Fittings have inlet-outlet:

Cylindrical External Thread (male) G1/8", 1/4", 3/8", or 1/2"
Quick-Release Push-in Connection for Pneumatic Tube with Outer Diameter of 4, 6, 8, 10, or 12 mm

The metallic fittings are made of nickel-plated bronze. The push-in has an NBR seal, and the thread also has an NBR O-ring. These metal fittings are designed to work with compressed air at a pressure 0-10 bar, with a maximum allowable pressure of up to 16 bar.

Table — Operating Parameters and Materials of SF-MPL Fittings
Type of Fitting	90° Elbow, L-shaped
Thread	G1/8", G1/4", G3/8", or G1/2"
Outer Diameter of the Tube	4, 6, 8, 10, or 12 mm
Operating Medium	Compressed Air, Water
Operating Pressure Range (air)	0-10 bar
Maximum Pressure (air)	16 bar
Body Material, Push-in Part	Nickel-plated Bronze
Seal Material	NBR

Advantages of SF-MPL Pneumatic Fittings

Quick-release push-in connections reduce the time for installation and maintenance of the pneumatic system
When using the push-in clamp, the tube retains its shape, and can be reused immediately after disconnection for further connections
Compared to plastic fittings SF-EPL, metal SF-MPL withstands higher compressed air pressure (up to 16 bar)
Bronze fittings with NBR seals are compatible with various liquids and gases
