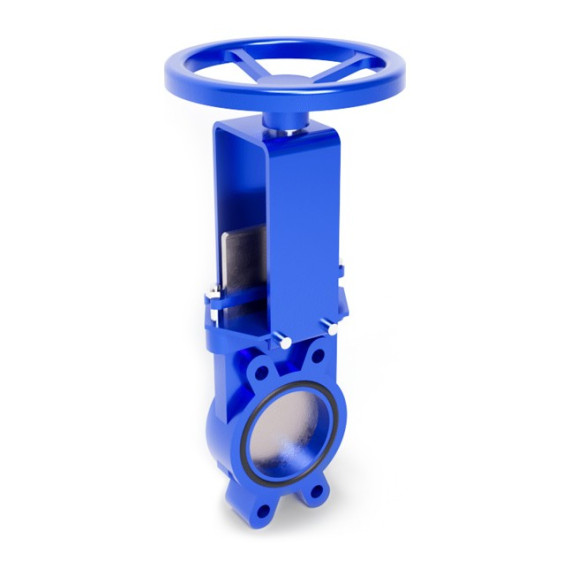

Knife gate latch DU 150 cast iron SCBF-PZ673X-10JC-150 with flywheel

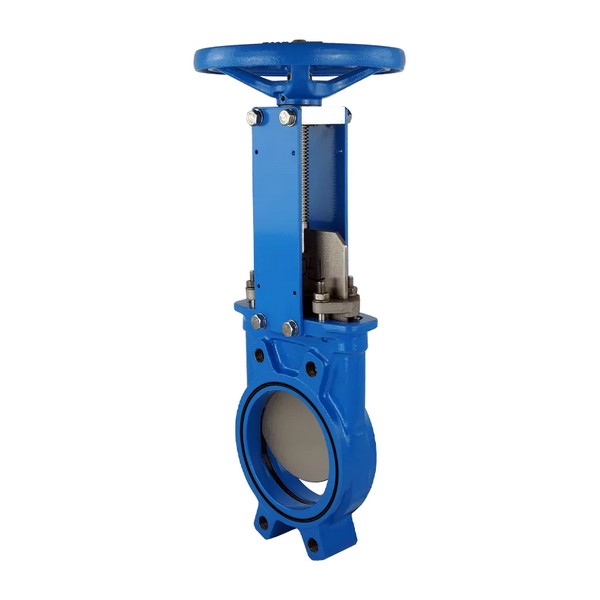

Model SCBF-PZ673X-10JC-150-M is a cast iron flange connected wedge gate valve DN150 PN10 with a rising stem and handwheel for manual closure. This bi-directional knife gate valve DN 150 made of cast iron is designed for operation with working media either under or without pressure 9.8 bar and temperature up to 80°C, including for gas, liquids and bulk materials.

The company “Specialist” offers production of knife gate valves based on series from the online store, but with necessary customer modifications: rubber-clad wedge, stainless steel, more compact without rising spindle, with high-temperature rubber EPDM or Viton. We will select materials for your working environment

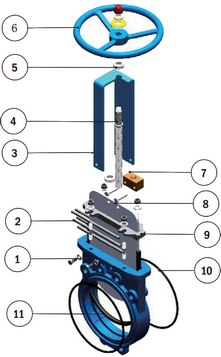

Design features of the standard gate SCBF-PZ673X-10JC-150-M with DN150

• Reinforced NBR. Rubber sealing is reinforced with steel wire around the edge of the wedge seat - it helps maintain shape, increases durability and sealability.
• Rising Spindle. Serves as an indicator of the position of the gate valve DN 150 and is a more reliable construction.
• WCB. Although WCB is called cast iron, it is actually cast carbon steel - it is more impact-resistant and withstands high pressure, which is important for industrial shut-off valves.
• Standard Flange Connection: PN10, PN16, 10K, 150LB, TABLED, DIN.
• Working pressure: 10 kg/cm² for DN150. This translates to 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Designation PN 10.
