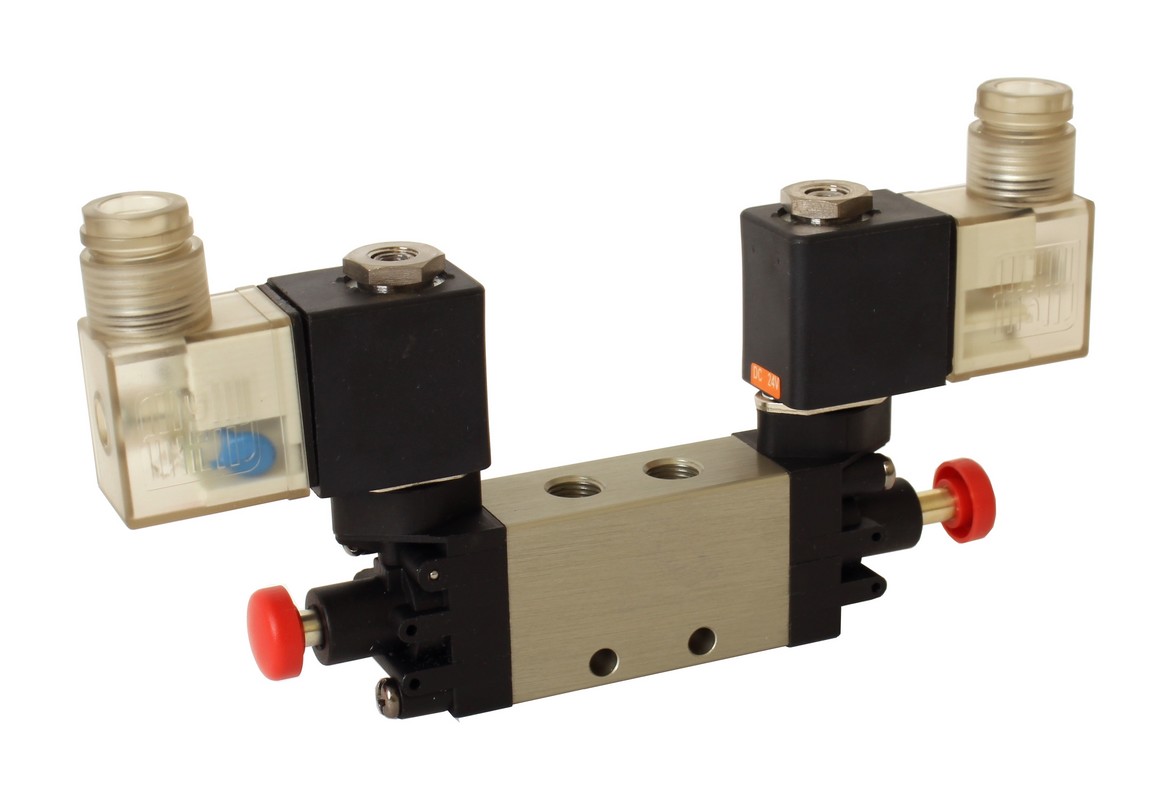

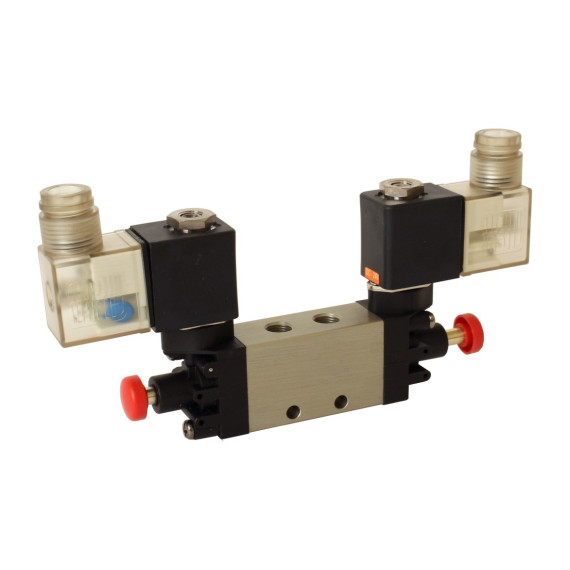

Pneumatic distributors 5/2 door opening with electromagnets 12 or 24V

Specialised pneumatic distributors (valves) for semi-automatic door opening mechanisms are used for buses like PAZ-3205, Etalon, Bogdan, Liaz and other brands. These pneumatic distributors 5/2 with solenoids DC24V operate from an electric signal of 24 V and have additional mechanical control for emergency door opening, vehicle battery discharge and maintenance. They operate with compressed air at a working pressure of from 1.5 to 8.5 bar.

PAZ door pneumatic valves have five ports with thread G 1/8″ designed for:

1. "P" — main inlet port for compressed air supply;
2. "A" – outlet 1;
3. "S" or "ExA" – air release to the atmosphere to relieve pressure from outlet 1 (a pneumatic silencer can be mounted on it);
4. "B" – outlet 2
5. "R" or "ExB" – exhaust port to relieve pressure from outlet 2

When purchasing a pneumatic distributor, you receive it complete with two DC solenoid coils 24VDC or others upon request. For an additional fee, you can purchase 3 bronze angled fittings with locknuts of the SF-NPL series or with metal collet SF-MPL for connecting tubes to the valve, as well as pneumatic silencers with throttling SF-BESLD for adjusting the smoothness of door opening.

The Specialist warehouse is located in Kamianske (near Dnipro). You can also order delivery via Nova Poshta to any city in Ukraine.
