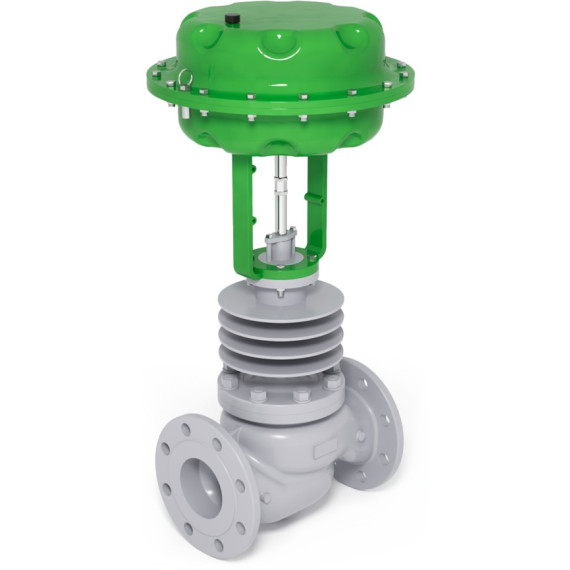

Shut-off valve for steam DU 100 PN25 with pneumatic drive

Specialised reducing valve for steam with pneumatic actuator “Specialist” is a two-way seat valve stainless steel 304 with WCB body with flanged connection, allowing remote control of shutting off the pipe of high-temperature medium in “open-close” mode.

You can view and purchase stainless steel steam shut-off valve DN 100 PN25 from our warehouse near Dnipro or order the assembly you need based on this valve.

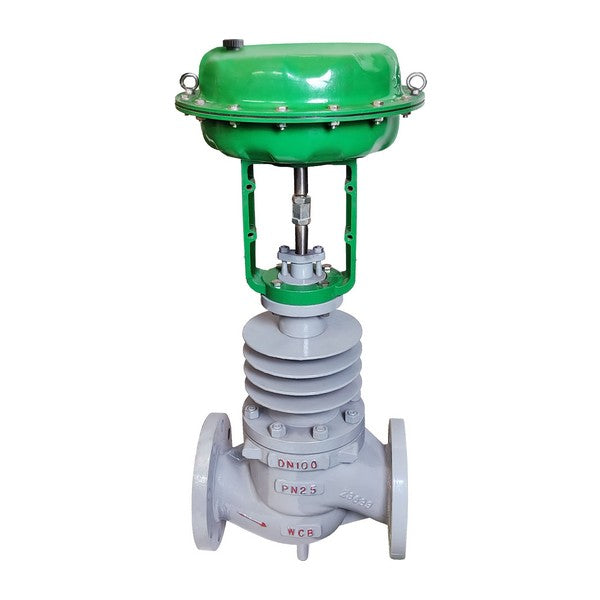

Technical parameters and design of the steam valve:

• Nominal diameter — 100 mm, DN 100
• Nominal pressure — 25 bar, PN 25. High-pressure steam valves PN40 and PN100 are available on request.
• Flow capacity KVS 160 m³/hour (when fully open, the valve will pass 400 cubic meters of water per hour with a pressure drop of 1 bar)
• Maximum temperature — 400°C
• Internal shut-off element - stainless steel AISI 304 (ANSI CF8)
• Seal metal-to-metal
• Body made of cast carbon steel WCB is a superior quality alternative to cheap cast iron EN-JS1049. WCB body has greater strength at high temperatures, better withstands hydraulic shocks and thermal shocks typical for the start-up of the steam system and its emergency shutdown.

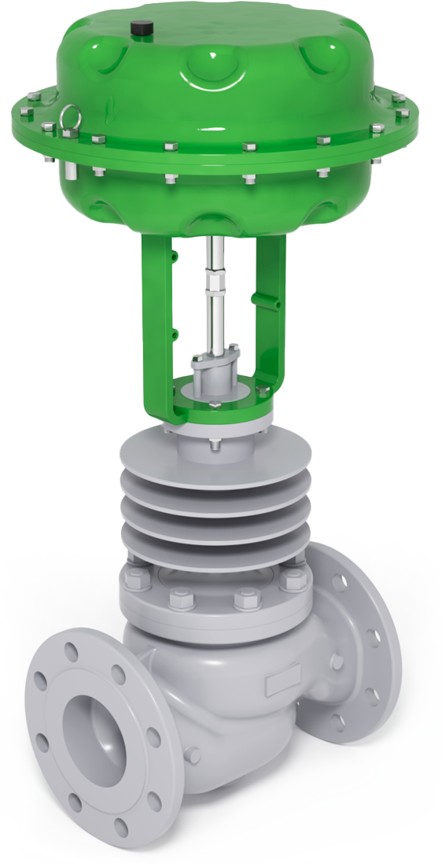

• Special body design with extended top cover and ribs for heat dissipation and cooling of the gland when the valve is operated with saturated and superheated steam
• Flanged installation is preferable for working with steam, as bolt tightening ensures better connection reliability and reduces the risk of leakage
• The valve is equipped with an automatic control kit:
  • pneumatic diaphragm actuator (diaphragm made of EPDM)

Before ordering, you can contact the sales department to ask them to select a diaphragm actuator for you. We not only sell shut-off and regulating fittings and reducing valves for boilers but also manufacture and directly import pneumatic equipment and electronics for automation to Ukraine. We can design and assemble control cabinets for valves and gates based on our range.
