Pneumatic shut-off valve with drive, thread 1 inch (SV-HD-AA-22-25)

Do you have any questions about the product?
We will be happy to answer them in messengers

Pneumatic shut-off valve with drive, thread 1 inch (SV-HD-AA-22-25)

Name: Pneumatic shut-off valve with drive, thread 1 inch (SV-HD-AA-22-25)
Brand: Specialist
SKU: SV-HD-AA-22-25
Price: 2114.40 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1

Model

Manufacturer

Specialist

from 2 114,40 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HD-AA-22-25

Pneumatic shut-off valve with drive, thread 1 inch (SV-HD-AA-22-25)

Diameter of conditional passage=25 Thread size=G 1

SV-HD-AA-22-25

2 114,40 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1"

Матеріал диску

Bronze

Body material

Bronze

Nominal diameter

TWO 25

Тип засувки

Valve

Nominal diameter

Тип контролю

With pneumatic drive

Description

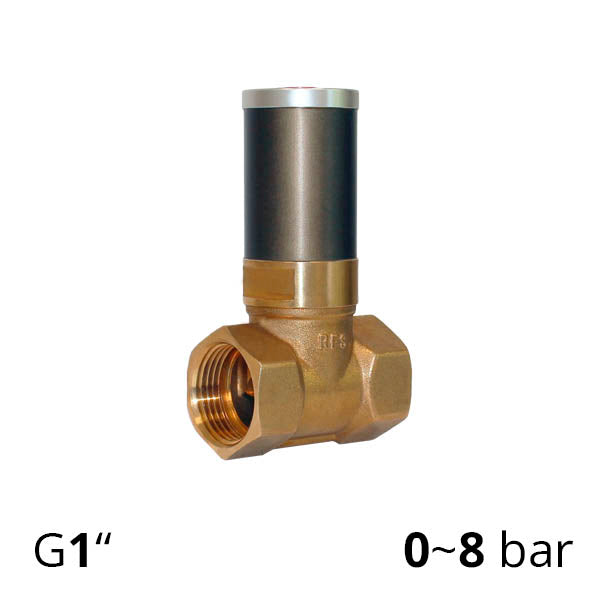

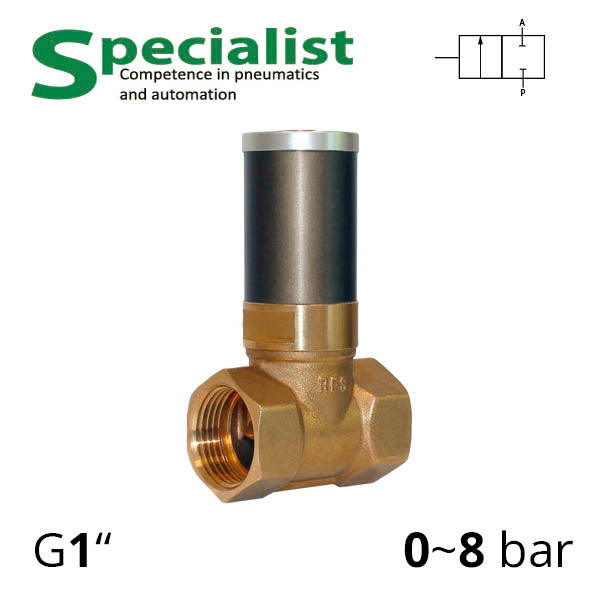

The pneumatic valve SV-HD-AA-22-25 is a bronze cut-off valve with a pneumatic actuator, featuring a threaded connection to the pipeline — internal thread 1 inch. Flow capacity Kv 10. The pneumatically controlled seat valve is characterized by reliability and rapid action — a built-in pneumatic cylinder with a diameter of 40 mm develops a force of about 770 N at an air pressure of 7 bar, which makes the pneumatic actuator cope efficiently with resistance from both viscous substances and pressurized hydraulic fluids, enabling quick flow cut-off. Air supply for control is connected through two ports with threads 1/8″.

These cut-off valves are suitable for water, air, viscous lubricants, oil, certain solutions, some acids and bases. Before use, check the compatibility of the POM seal material and the bronze body with the chemicals used.

Technical specifications of pneumatic valve SV-HD-AA-22-25
Parameter	Value
Pipeline connection thread	internal G 1″
Flow capacity	Kv = 10
Valve materials	Bronze body, POM (polyacetal) seals
Working medium	Water, air, hydraulic fluids, lubricant, oils, solutions that do not react with valve materials
Working medium pressure	from 0 to 8 bar
Control	Pneumatic double-sided control
Piston diameter	40 mm
Pneumatic drive pressure	from 2 to 8 bar
Pneumatic drive connection	2 ports with internal thread G 1/8″
