Control valve for steam DU 100 PN25 with pneumatic drive

Specialised reduction steam valve with pneumatic actuator and positioner "Specialist" is a two-way seat valve stainless steel 304 with WCB flanged body connection, enabling automated control of high-temperature media flow through the possibility of partial opening and intermediate throttling positions.

You can view and purchase the adjustable stainless steel steam valve with DN 100 PN25 from our warehouse near Dnipro or order the required assembly based on this valve.

Technical parameters and design of the steam valve:

• Nominal diameter — 100 mm, DN 100
• Nominal pressure — 25 bar, PN 25. High-pressure steam valves PN40 and PN100 are available upon request.
• Flow capacity KVS 160 m³/hour (when the valve is fully open, 400 cubic meters of water will pass through it per hour with a pressure drop of 1 bar)
• Maximum temperature — 350°C
• Inner shut-off element - stainless steel AISI 304 (ANSI CF8)
• Sealing metal-to-metal
• The body is made of cast carbon steel WCB and is a higher quality analogue of cheaper cast iron EN-JS1049. WCB body has greater strength reserve at high temperatures, better withstands hydraulic and thermal shocks typical for steam system startup and emergency shutdown.
• Special body design with an extended bonnet and fins for heat dissipation and cooling of the gland when operating with saturated and superheated steam
• Flanged installation is preferred for steam work, as the bolt tightening ensures better connection reliability and less leakage risk

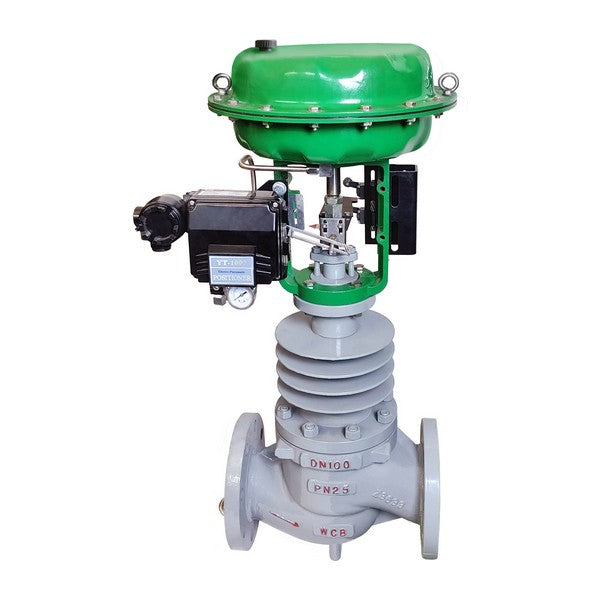

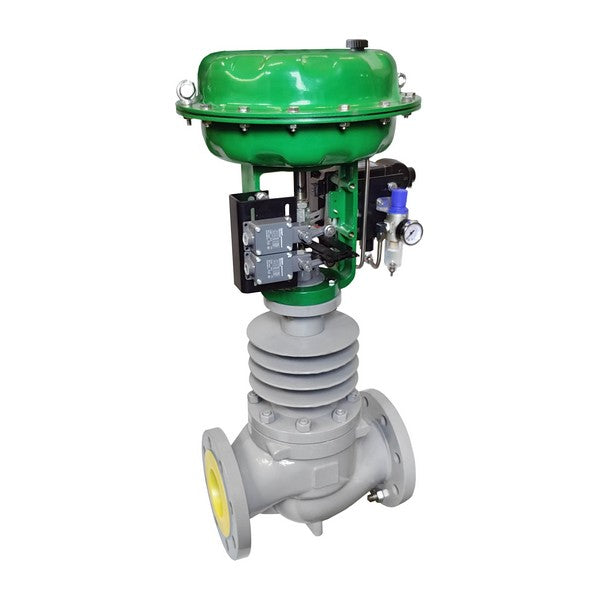

• The valve is equipped with an automatic control set:
  • pneumatic diaphragm actuator (diaphragm made of EPDM)
  • pneumopositioner - receives 4...20 mA signal from the controller and proportionally manages the compressed air source, achieving a 0...100% pneumatic actuator position proportional to the signal
  • limit switch block
  • air preparation filter-regulator

Before ordering, you can contact the sales department to request assistance in selecting a diaphragm actuator. We not only sell shut-off and control valves and reduction valves for boiler rooms but also manufacture and directly import pneumatic equipment and electronics for automation in Ukraine. We can design and assemble valve and gate control cabinets based on our range.
