Special

Ball valve 1/2″ with internal thread bronze (SCBV-Q201-16FB-15-FF)

Do you have any questions about the product?
We will be happy to answer them in messengers

Ball valve 1/2″ with internal thread bronze (SCBV-Q201-16FB-15-FF)

Name: Ball valve 1/2″ with internal thread bronze (SCBV-Q201-16FB-15-FF)
Brand: Specialist
SKU: SCBV-Q201-16FB-15-FF
Price: 306.00 UAH
Availability: InStock

In Stock

Product Code:

SCBV-Q201-16FB-15-FF

Brand:

Specialist

342,27 UAH

-10%

306,00 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Connection type

With internal thread

Thread

G ½"

Матеріал диску

Bronze

Body material

Bronze

Nominal diameter

TWO 15

Тип засувки

Ball valve

Inlet pressure

There are 12

Тип контролю

Handled

Description

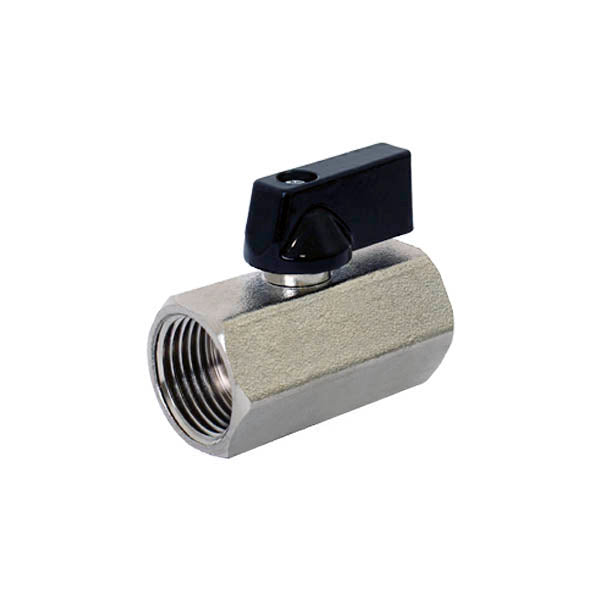

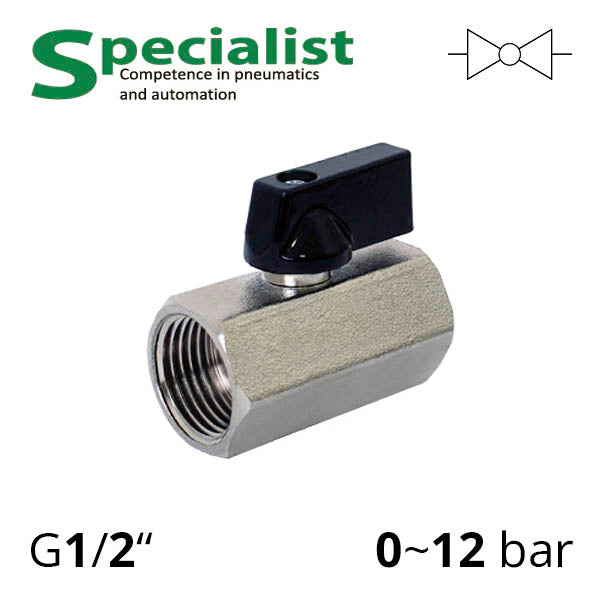

Nickel-plated bronze ball valve 1/2″ female-female series SCBV-Q201-16FB-15-FF is a type of two-way semi-pass bronze ball valve with a plastic "flag" handle for quarter turn. Thread pipe cylindrical type "G" size 1/2 by 1/2 inch full bore internal (female). Diameter DU 15 mm.

Bronze couplings ball valves ½ are designed for installation on any pipelines: air, water, oil, other liquids, suspensions or gases compatible with the materials. Often used as air valves for rotary and piston compressors.

The body is monolithic (single-piece type of ball valve). Can be used in the temperature range from 0 to +80 °C, under pressure up to 12 bar (for air).

The manual lever must be turned to the end position (90° turn) — the shut-off device is intended only for full opening or closing of the flow, without intermediate positions.
