Solenoid valve stainless high temperature G 1/2″ series SV-SH-ES-22NC-15

Do you have any questions about the product?
We will be happy to answer them in messengers

Solenoid valve stainless high temperature G 1/2″ series SV-SH-ES-22NC-15

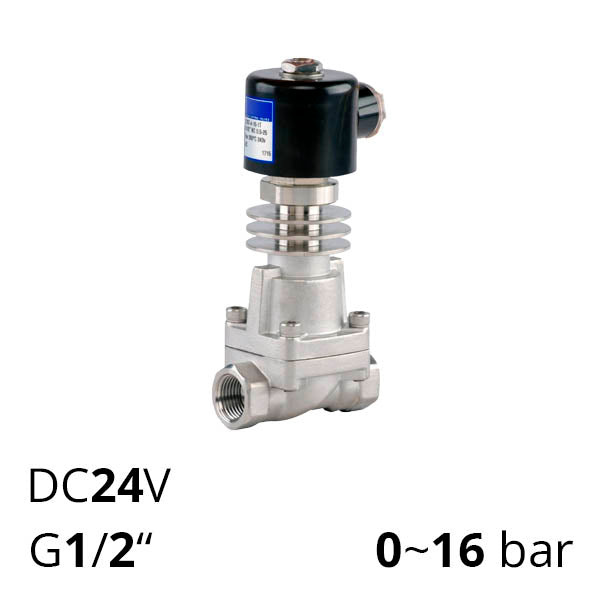

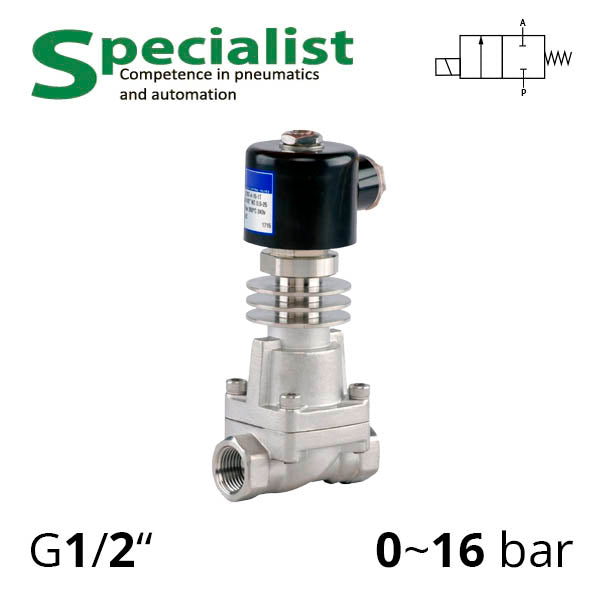

Name: Solenoid valve stainless high temperature G 1/2″ series SV-SH-ES-22NC-15
Brand: Specialist
SKU: SV-SH-ES-22NC-15-DC24V
Price: 5215.02 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Час доставки

60 днів

Thread size

G ½

Model

Manufacturer

Specialist

from 5 215,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-SH-ES-22NC-15-DC24V

Solenoid valve stainless high temperature G 1/2″ series SV-SH-ES-22NC-15

Power Voltage=DC24V Час доставки=60 днів Thread size=G ½

SV-SH-ES-22NC-15-DC24V

5 215,02 UAH

In Stock

SV-SH-ES-22NC-15-AC220V

Solenoid valve stainless high temperature G 1/2″ series SV-SH-ES-22NC-15

Power Voltage=AC220V Час доставки=60 днів Thread size=G ½

SV-SH-ES-22NC-15-AC220V

5 215,02 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ½"

Coil voltage

AC220V, DC24V

Матеріал диску

Stainless steel AISI 316 SS

Матеріал ущільнення

PTFE

Body material

Stainless steel AISI 316 SS

Nominal diameter

TWO 15

Тип засувки

Valve

Тип контролю

Electromagnetic

Delivery time

60 днів

Description

The stainless steel high temperature solenoid valve series SV-SH-ES-22NC-15 are two-way two-position normally closed stop valves of the piston type, specially designed for operation with media at high temperatures up to 250° C and high pressure up to 16 bar. They are often used in industry as cutoff solenoid valves for steam, hot water pipelines, air, and more.

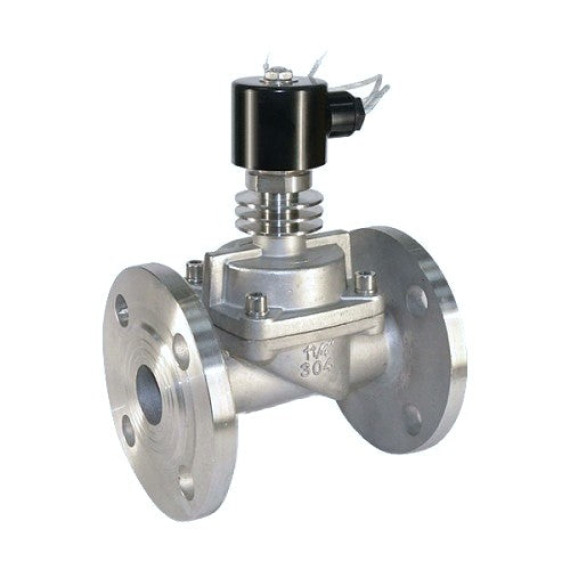

The solenoid valve has an internal cylindrical thread G 1/2″ and solenoid voltage AC 220V or DC 24V. These stainless steel valves can be supplied not only with threaded connections but also with flanged ones. If necessary, we can supply valves with electric or pneumatic actuators for working with viscous substances.

Technical specifications for high temperature valves SV-SH-ES-22NC-15
Construction		Two-way two-position normally closed valve with unidirectional pilot solenoid control
Materials		Stainless steel, Teflon
Connection	Threaded	G ½″
Connection	Flanged	F25,F32,F40,F50
Mounting		Vertical
Operating temperature range		from 0 to 250° C
Power supply voltage		AC 220V, AC 110V (power 33VA), DC 24V (power 24W)
Allowable voltage variation		±10%
Working medium		Air, water, steam and other substances compatible with valve materials
