Ball valve 1/2″ ext. - external threaded bronze (SCBV-Q201-16FB-15-SF)

Do you have any questions about the product?
We will be happy to answer them in messengers

Ball valve 1/2″ ext. - external threaded bronze (SCBV-Q201-16FB-15-SF)

Name: Ball valve 1/2″ ext. - external threaded bronze (SCBV-Q201-16FB-15-SF)
Brand: Specialist
SKU: SCBV-Q201-16FB-15-SF
Price: 350.82 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Тип різьби

Внутрішня-зовнішня

Thread size

G ½

Model

Manufacturer

Specialist

from 350,82 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q201-16FB-15-SF

Ball valve 1/2″ ext. - external threaded bronze (SCBV-Q201-16FB-15-SF)

Diameter of conditional passage=15 Тип різьби=Внутрішня-зовнішня Thread size=G ½

SCBV-Q201-16FB-15-SF

350,82 UAH

In Stock

Technical specifications

Тип різьби

Внутрішня-зовнішня

Connection type

With internal thread, With external thread

Thread

G ½"

Матеріал диску

Bronze

Body material

Bronze

Nominal diameter

TWO 15

Тип засувки

Ball valve

Nominal diameter

Inlet pressure

There are 12

Тип контролю

Handled

Description

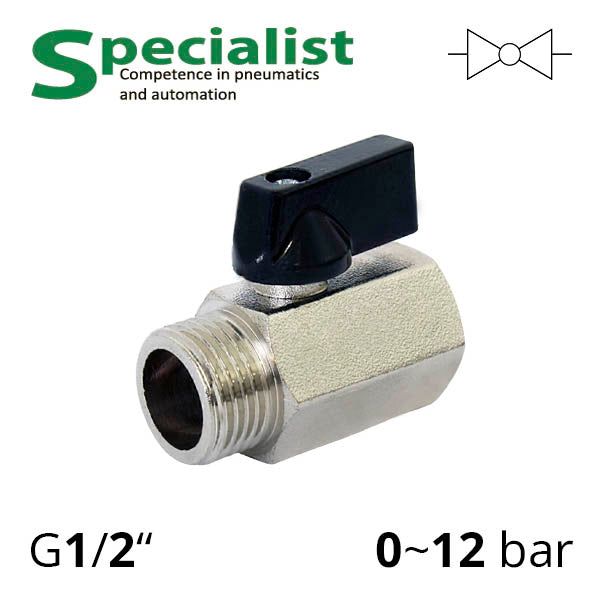

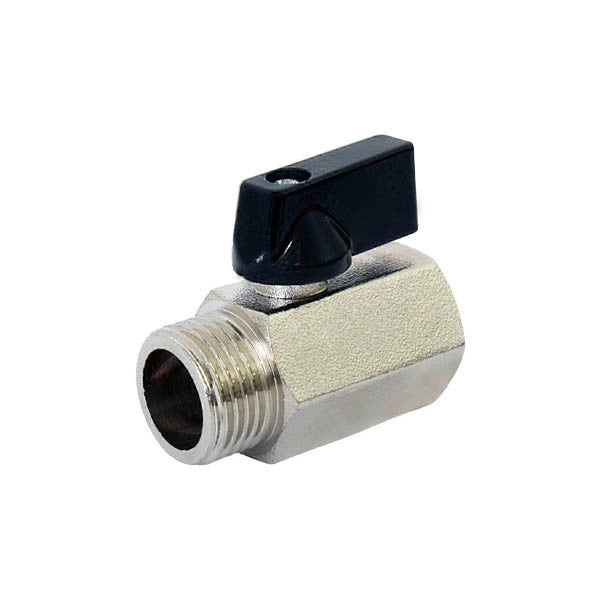

Miniature two-way ball valve 1/2 by 1/2 inch female-male series SCBV-Q201-16FB-15-SF features a nickel-plated bronze one-piece cast body with external threading on one side and internal on the other. The thread type is "G" - a cylindrical pipe thread. The valve has two positions: "open" and "closed," which change by turning the handle by 90 degrees. The handle is made of technical polymer.

Ball valves model SCBV-Q201-16FB-15-SF can be used for water, compressed air, oils, other liquids, suspensions, or gases compatible with bronze. They are popular for plumbing for piston and screw compressors, used to manually drain condensate from receivers, filters, and pneumatic pipelines.

Operating temperature range — from 0 to +80 °C, under pressure up to 12 bar (for air working environment).
