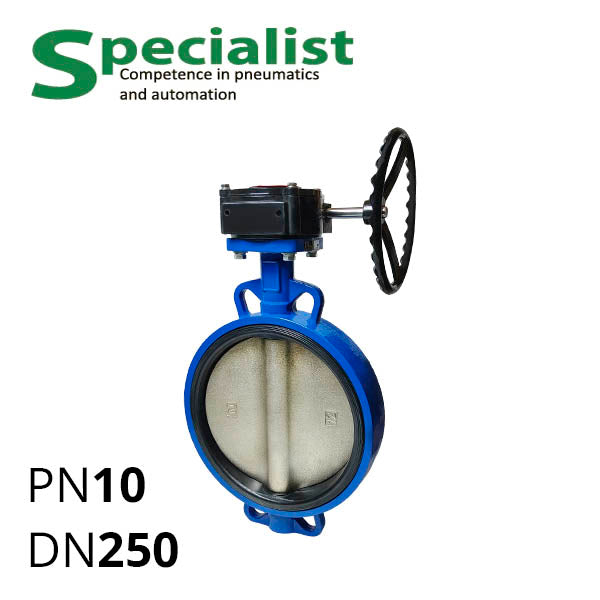

Disc rotary valve DU 250 cast iron inter-flange non-dismountable with SCBF-D673 series reducer

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 250 cast iron inter-flange non-dismountable with SCBF-D673 series reducer

Name: Disc rotary valve DU 250 cast iron inter-flange non-dismountable with SCBF-D673 series reducer
Brand: Specialist
SKU: SCBF-D673-10XEX-250-G
Price: 7862.04 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 7 862,04 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-250-G

Disc rotary valve DU 250 cast iron inter-flange non-dismountable with SCBF-D673 series reducer

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-250-G

7 862,04 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

67 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 250

Тип засувки

disc rotary shutter

Inlet pressure

Rooster (10 bars)

Тип контролю

With a gearbox

Description

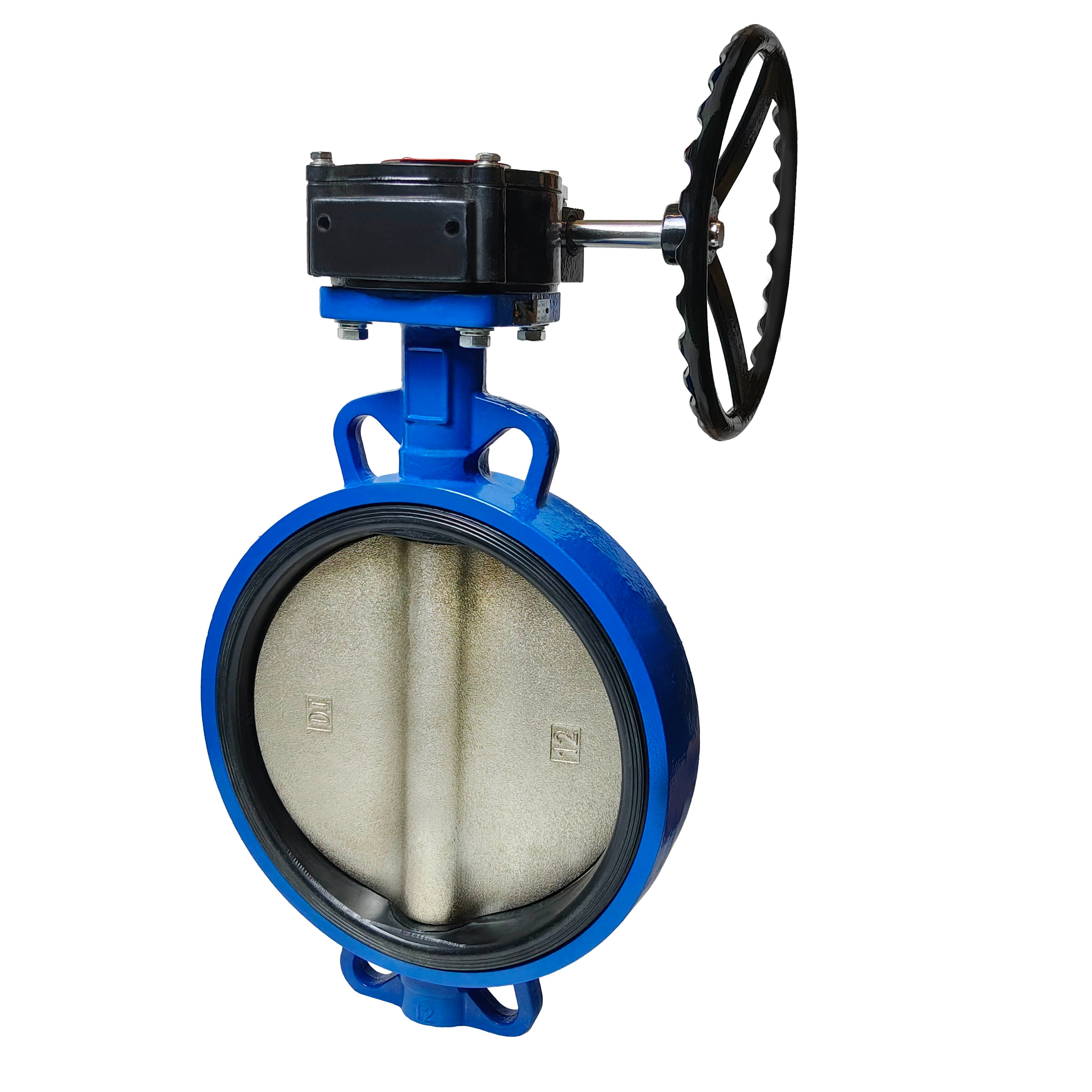

The manual cast iron valve model SCBF-D673-10XEX-250-G is a regulated disk butterfly valve type PN10 DN250 with a cast steel body and WCB disc, EPDM seals. Unlike grey and ductile iron, butterfly valves with WCB can operate under pressure and with hot water, non-aggressive gas, liquids, weak alkalis, and most organic acids. The operating media are checked for compatibility with WCB and EPDM.

The manual worm gearbox can be stopped at intermediate positions of the valve DN250 SCBF-D673-10XEX-250-G for throttling and regulating the flow of substances through the pipeline. The device is marked every 10°.

Table — Main characteristics of the cast iron disc butterfly valve SCBF-D673-10XEX-250-G
Nominal Diameter	DN250 (250 mm)
Nominal Pressure	PN10 (1 MPa, 10 Bar)
Body Material	Cast Iron WCB (cast carbon steel)
Disc Material	Cast Iron WCB
Seal Material	EPDM
Temperature Range	from −30 to 95°C
Control Type	Manual Control
Installation Thickness	67 mm

This manual cast iron butterfly valve is installed on a pipe with a nominal diameter of 250 millimetres between pre-welded collar flanges ISO 7005-1(EN 1092-2). The body has lugs with holes ("ears") for centring the butterfly valve between the flanges.

The manual drive can be replaced with a pneumatic or electric one. On request, we supply this type of damper with PN16.
