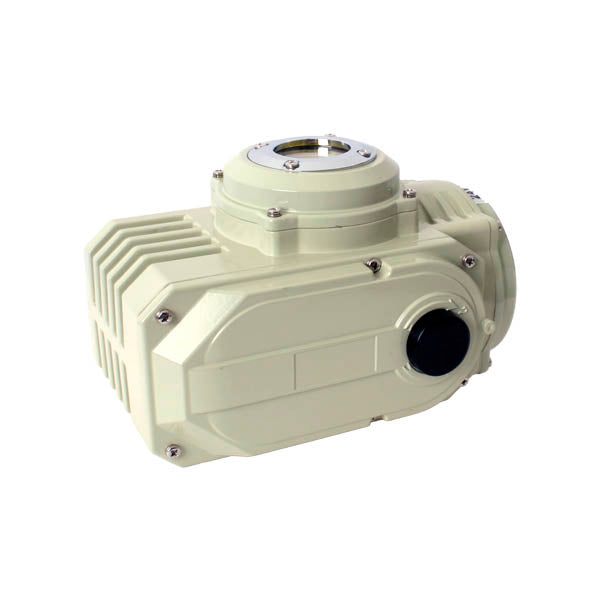

Rotary electric drive for 90° shut-off valves SCBF-HL-10
In Stock
Product Code:
SCBF-HL-10
Brand:
Specialist
8 820,60 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Rotary electric actuator for shut-off valves SCBF-HL-10 has a rotation angle of 90 degrees and a torque of up to 100 N⋅m. This electric actuator is designed for "open-close" operation with industrial ball valves or butterfly disk valves with DN 50~125mm, featuring a standardized mounting platform for the actuator F05/F07 according to ISO 5211/DIN3337.
Model SCBF-HL-10 is powered by alternating current voltage AC220V. Available on request with other power supplies, with heating. You may also be interested in the model with 4-20 mA regulation.
| Output Torque | 100 N⋅m |
|---|---|
| Motor Power | 23 W |
| Rated Current | 0.24 A |
| Operation Time | 30 s |
| Rotation Angle | from 0 to 90° (open and close) |
| Power Supply Voltage | AC 220 Volts (standard), on request DC24V, AC24V, AC110V |
| Protection | IP67 |
| Ambient Temperature | from −25 to 60 °C |

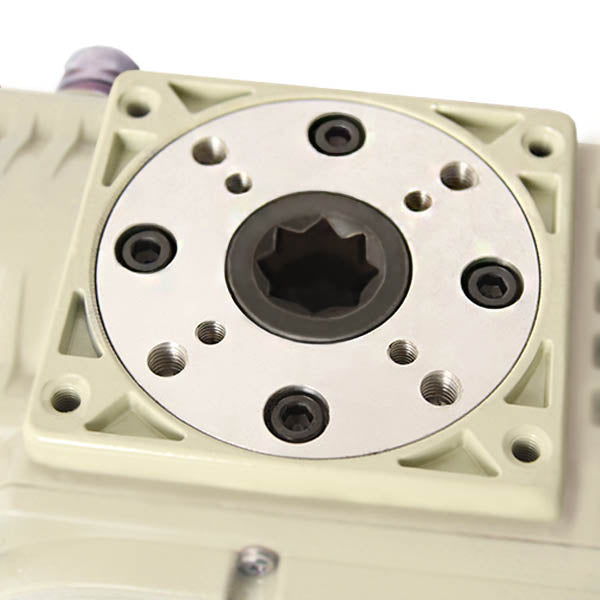

| Shaft Slot | Square 14×14 mm |
| Flange Size | F05/F07 |
| Weight | 4 kg |
