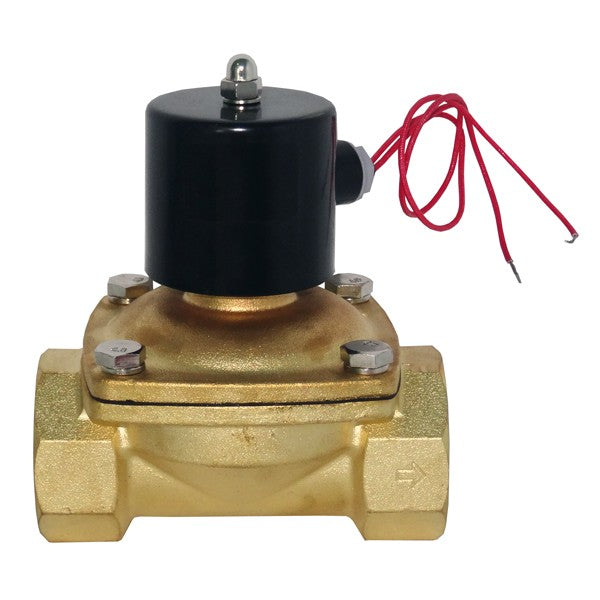

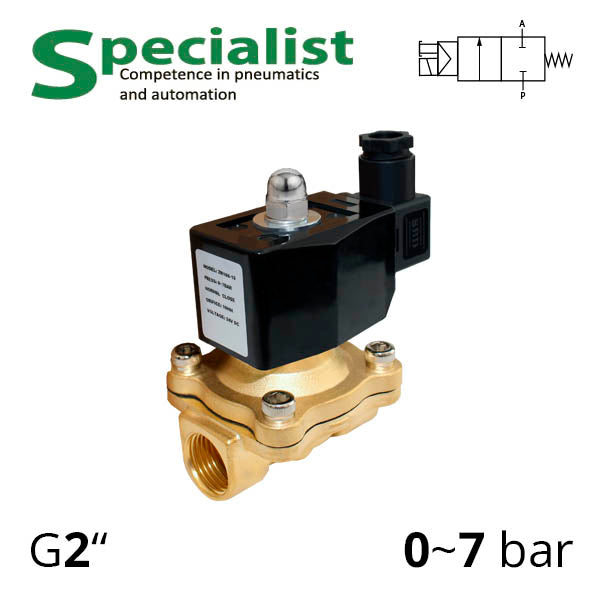

Solenoid valve 2/2 normally closed with thread G 2” series SV-ZS11-ES-22NC-50

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve 2/2 normally closed with thread G 2” series SV-ZS11-ES-22NC-50

Name: Solenoid valve 2/2 normally closed with thread G 2” series SV-ZS11-ES-22NC-50
Brand: Specialist
SKU: SV-ZS11-ES-22NC-50-DC24V
Price: 8070.96 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G 2

Model

Manufacturer

Specialist

from 8 070,96 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-ZS11-ES-22NC-50-DC24V

Solenoid valve 2/2 normally closed with thread G 2” series SV-ZS11-ES-22NC-50

Power Voltage=DC24V Thread size=G 2

SV-ZS11-ES-22NC-50-DC24V

8 070,96 UAH

In Stock

SV-ZS11-ES-22NC-50-AC220V

Solenoid valve 2/2 normally closed with thread G 2” series SV-ZS11-ES-22NC-50

Power Voltage=AC220V Thread size=G 2

SV-ZS11-ES-22NC-50-AC220V

8 070,96 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 2"

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 50

Тип контролю

Electromagnetic

Description

Valves of the series SV-ZS11-ES-22NC-50 are two-position normally closed diaphragm type valves with one-directional pilot electric control and feature a G 2” pipe thread. Our company supplies ZS valves on order with various body and seal materials. This allows a wide range of applications for different media and working temperatures. Operating pressure from 0 bar, and power supply DC24V or AC220V. They can operate in gravity systems without pressure.

Technical Specifications of 2/2 NC Solenoid Valves Series SV-ZS11-ES-22NC-50
Construction	Two-line two-position normally closed valve with one-directional pilot electric control
Material	Bronze, NBR (standard) Stainless steel AISI304 or AISI316, VITON (on order)
Connection	G2”
Mounting	Vertical
Operating Temperature Range	from −5 to +80 °C (with dry air without moisture)
Power Supply Voltage	AC220V, DC24V
Allowable Voltage Variation	±10%
Working Medium	Air, water, oils (up to 20CTS viscosity), gas
Operating Pressure Range	0—5 bar (water), 0—7 bar (air), 0—5 bar (oil)
