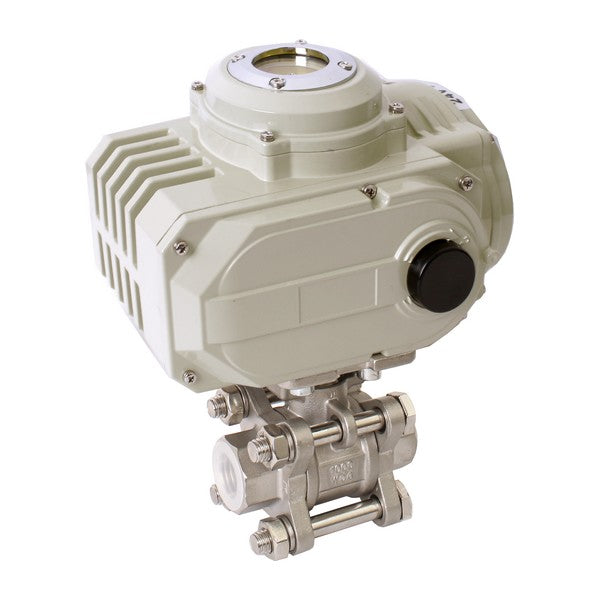

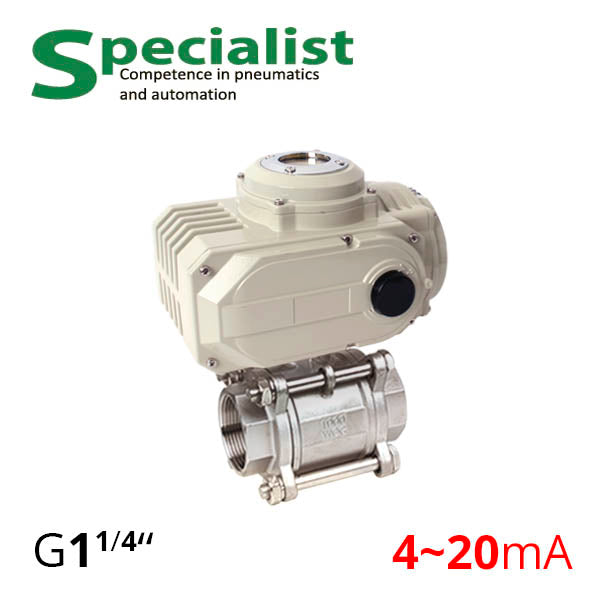

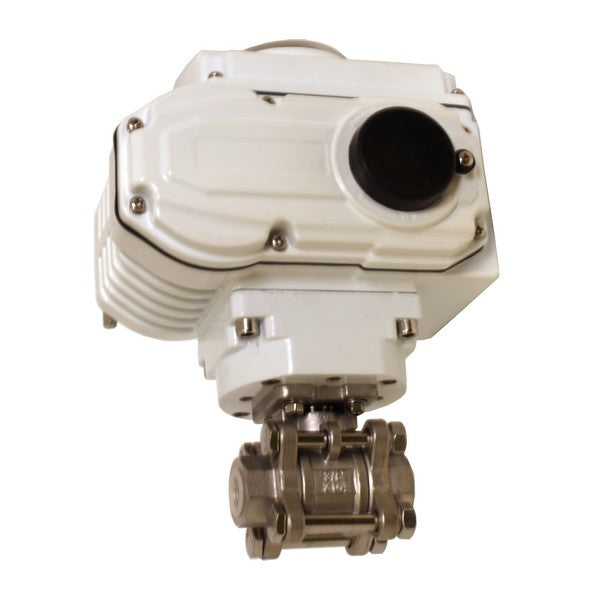

Adjustable ball valve 1 ¼″ stainless PN16 DN32 with electric drive SCBV-Q611

The three-piece ball valve DN 32 with female thread 1 ¼″ and electric actuator SCBV-Q611F-16FC-32-HL-10-A is made of stainless steel by default and is used for automated control and regulation of flow proportional to the 4-20 mA signal in water supply, drinking water and food mixtures distribution lines, petroleum products, and chemical substances. It is crucial to check the compatibility of the liquid or gas composition with the valve materials: PTFE and AISI 304. If necessary, contact and order a similar ball valve assembly with an electric actuator from Specialist, but made from other materials.

Design Features of Electric Actuated Ball Valve DN32 1 ¼ Inch

Standard configuration SCBV-Q611F-16FC-32-HL-10-A includes:

• Full bore ball valve, providing the highest flow capacity as the valve ball size matches the pipe diameter.
• Three-piece valve body comprised of the casing and two detachable threaded couplings (threaded part) with internal threads for 1 ¼″. We also offer flanged ball valves, weld fittings, or clamped fittings on request.
• Standardised mounting F05/F07. The ball valve and actuator have flanges connected according to ISO 5211/DIN 3337, ensuring full compatibility and interchangeability of equipment and secure, EU and Ukrainian standards-compliant mounting.
• Flow regulation proportional to 4-20 mA. Nearly any industrial PLC supports 4-20 mA output and can control the actuator, though we also supply 1-5 V and 0-10 V as needed.
• Antistatic device and leakage protection through shaft
