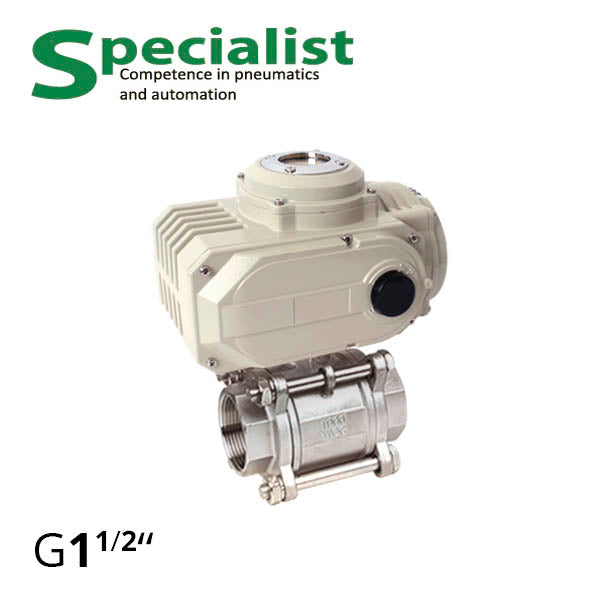

Shut-off ball valve 1 ½″ stainless PN16 DN40 with electric drive SCBV-Q611

SCBV-Q611F-16FC-40-HL-10 is a three-piece ball valve DN 40 with ff 1 ½″ threading and electric actuator made of stainless steel and designed for automated control of water supply openings, drinking water dispensing lines and food mixtures, petroleum products and chemicals. Compatibility of the fluid or gas composition with the materials of the valve must be checked: PTFE-teflon and AISI 304. If necessary, call and order the same assembly with an electric actuator from Specialist in different materials.

Features of Ball Electric Valve DN40 1 ½ Inch

The standard configuration of SCBV-Q611F-16FC-40-HL-10 includes:

• A full bore ball valve with the highest throughput capacity because the size of the ball matches the pipeline diameter.
• A three-piece valve body consisting directly of a shell and two removable threaded sleeves (threading) with internal thread size 1 ½″. We also offer flange ball valves, welding or clamping inserts on request.
• Standardised fittings F05/F07. The ball valve and the actuator have flanges for connection according to ISO 5211/DIN 3337, ensuring full compatibility and interchangeability of equipment and reliable installation that complies with EU and Ukraine standards.
• Control “open-close”
• Anti-static device and shaft leakage protection
