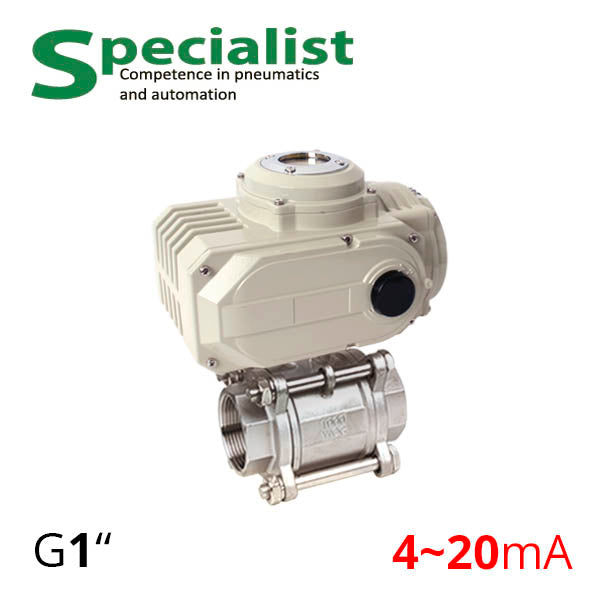

Regulating ball valve 1″ stainless PN16 DN25 with electric drive SCBV-Q611

Three-piece ball valve DN 25 with thread 1″ and electric actuator SCBV-Q611F-16FC-25-HL-05-A comes with a stainless steel ball by default and is used for automated control and regulation of flow in proportion to the 4-20 mA signal in water mains, lines dispensing drinking water and food mixtures, petrochemical and chemical products. It is essential to check the compatibility of the liquid or gas composition with the valve materials: PTFE Teflon and AISI 304. If necessary, call and order from Specialist the same ball valve assembly with electric actuator, but with other materials.

Features of the electric actuator ball valve DN25 1 inch

The standard package SCBV-Q611F-16FC-25-HL-05-A includes:

• Full-bore ball valve, which has the highest throughput because the size of the shut-off component ball matches the diameter of the pipeline.
• Three-piece valve body consists of the actual shell and two removable threaded couplings (threaded part) with internal thread 1″. We also offer flanged ball valves, weld-in or clamp-in inserts to order.
• Standardised mountings F05/F07. The ball valve and electric actuator have flanges connected according to ISO 5211/DIN 3337, ensuring full compatibility and interchangeability of equipment, and provide reliable installation, compliant with EU and Ukraine standards.
• Flow regulation in proportion to the 4-20 mA signal. Virtually any industrial PLC supports 4-20 mA output and can control the electric actuator, but if necessary, we also supply 1-5 V and 0-10 V.
• Antistatic device and leak protection through the shaft
