Specialist series SCC-ZAY-15 compressors are a ready assembly of an oil-filled screw compressor with 11 kW capacity up to 1.7 cubic metres of air per minute. Designed for stationary installation and high-pressure air compression — from 7 to 10 bar (default), up to 12 bar — on request.
The compressor is controlled via a controller with a touch screen display, which supports Cyrillic. By connecting via Wi-Fi, you can view compressor parameters and receive notifications about filter replacements on a mobile device or computer. The body has dust and moisture protection rating of IP23.
The feature of this series is the presence of an integrated frequency converter to allow regulation of not only the discharge pressure but also the compressor capacity. This saves energy and increases the compressor's service life.
The performance of any compressor depends on the output air pressure.
| Model | SCC-ZAY-15 | |
|---|---|---|
| Power, kW | 11 | |
| Capacity, m3/min (at specified discharge pressure) | 0.7 MPa | 1.7 |
| 0.8 MPa | 1.6 | |
| 1.0 MPa | 1.4 | |
| 1.2 MPa | 1.2 | |

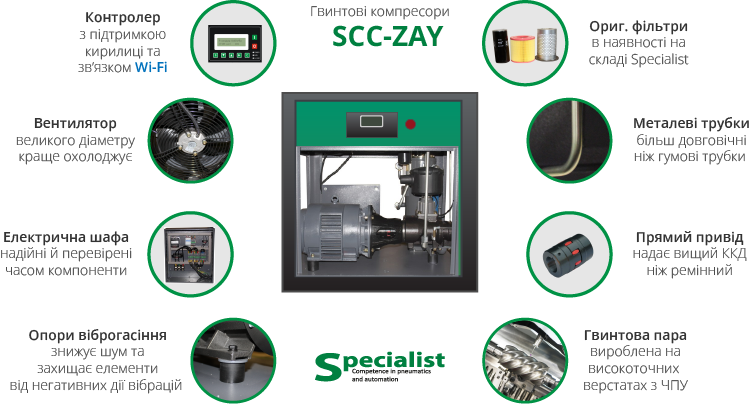

The single-stage compressor consists of the following main components:
Compared to similar products on the Ukrainian market, Specialist's industrial screw compressors are assembled from high-quality and durable components. We have filters and spare parts available for post-warranty service in stock.

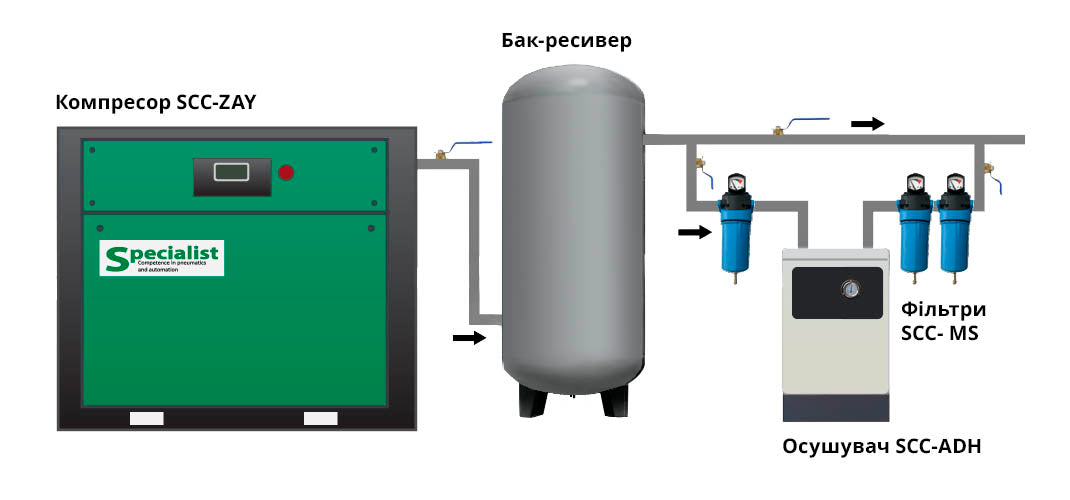

We supply SCC-ZAY-15 series screw compressors ready for connection and operation. To power the compressor, it must be connected to a three-phase AC power grid with a voltage of 380 V and a frequency of 50 Hz. To the air pipeline — via a tube fitting with cylindrical thread (size depends on the model).
More detailed installation requirements for the compressor (room ventilation, distance to walls) are provided in the instruction manual.
Some models of SCC-ZAY compressors are available in stock at "Specialist" in Ukraine, others we offer for delivery on order within 60 days. Our company also supplies both single compressors and comprehensive equipment for working with compressed air — receivers, dryers, filters, pressure boosters, valves, regulators, distributors, cylinders, etc.
Call us to get a commercial offer with price and a detailed presentation of the equipment we can provide upon your request.
