The Specialist SCC-ZAY-100 series compressors are a complete assembly of oil-injected screw compressors for stationary installation. Designed for high-pressure air compression — from 7 to 10 bar (default), up to 12 bar — on request.
The compressor is controlled through a controller with a Touch Screen display supporting Cyrillic script. Through Wi-Fi connection, compressor parameters can be viewed and notifications for filter changes can be received on a mobile device or computer. The casing has a dust and moisture protection rating of IP23.
The special feature of this series is the built-in variable frequency drive allowing not only pressure adjustment but also compressor performance. This saves energy and extends the compressor's working life.
When choosing a model, consider that the performance of any compressor depends on the output air pressure. Use the table to buy the SCC-ZAY-100 screw compressor with the required power.
| Model | SCC-ZAY-100 | |
|---|---|---|
| Power, kW | 75 | |
| Performance, m3/min (at specified discharge pressure) | 0.7 MPa | 13.8 |
| 0.8 MPa | 12.6 | |
| 1.0 MPa | 11.2 | |
| 1.2 MPa | 10.0 | |

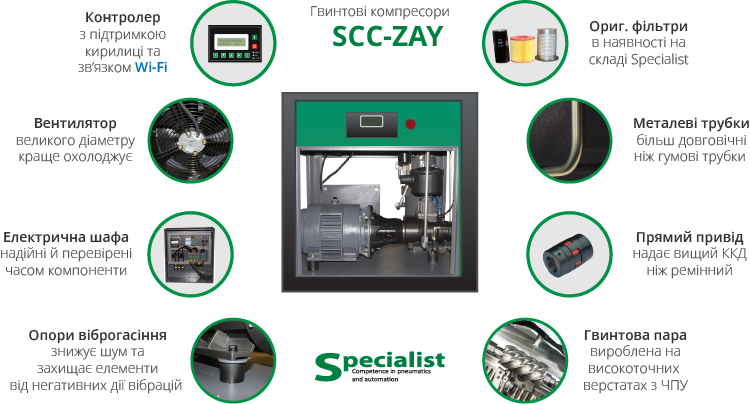

The compressor consists of the following main elements:
Compared to analogs on the Ukrainian market, the Specialist industrial screw compressors are assembled from high-quality and durable components. We have filters and spare parts available for post-warranty service in stock.

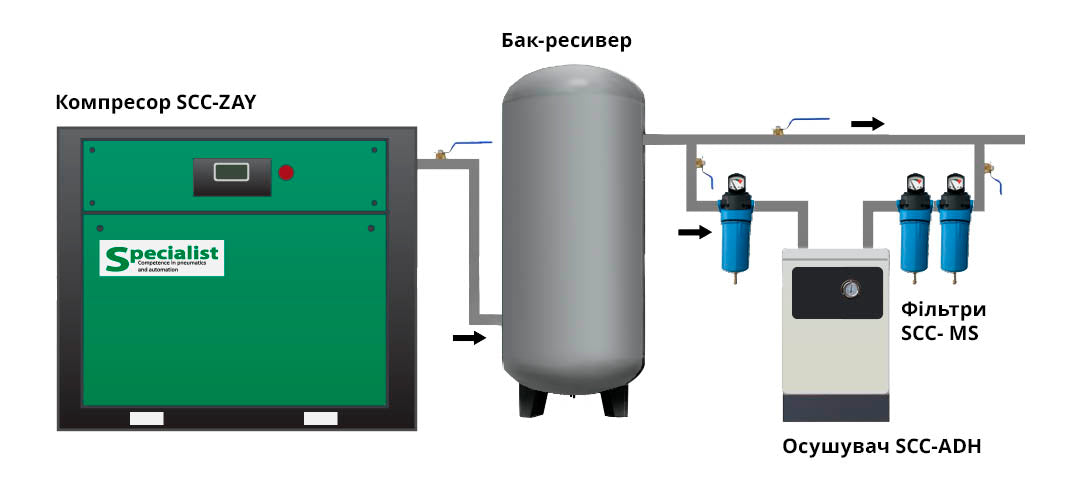

We supply SCC-ZAY-100 series screw compressors, which are ready to connect and operate. The compressor must be connected to a three-phase AC network with a voltage of 380 V and a frequency of 50 Hz. To the air duct — via a fitting with a cylindrical pipe thread (size depends on the model).
More detailed installation requirements for the compressor (room ventilation, distance to walls) are provided in the manual.
Some models of SCC-ZY compressors are available in stock at "Specialist" in Ukraine, others we offer to supply on order in 60 days. Our company also supplies individual compressors and a full set of equipment for working with compressed air — receivers, dryers, filters, pressure amplifiers, valves, regulators, distributors, cylinders, etc.
Call us to get a commercial offer with pricing and a detailed presentation of the equipment we can offer per your request.
