Specialist series compressors SCC-ZAY-75 are ready-to-install screw oil-filled compressors for stationary use. They are designed for high-pressure air delivery — from 7 to 10 bar (standard), up to 12 bar — on request.

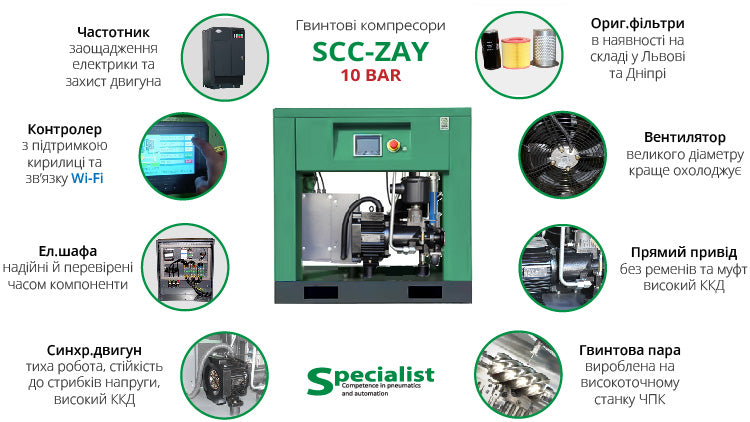

The compressor is controlled via a touch screen display controller that supports Cyrillic. With Wi-Fi connectivity, you can monitor compressor parameters and receive notifications about filter replacements on a mobile device or computer. The casing has a dust and moisture protection rating of IP23.
The distinctive feature of this series is the integrated variable frequency converter which allows adjustment not only of the delivery pressure but also of the compressor's performance. This saves electricity and extends the compressor's operating life.
When selecting a model, consider that the performance of any compressor depends on the outlet air pressure. Use the table to buy the screw compressor SCC-ZAY-75 with the required power.
| Model | SCC-ZAY-75 | ||
|---|---|---|---|
| Power, kW | 55 | ||
| Performance at specified delivery pressure | 0.7 MPa | 10.8 m³/min | 10800 l/min |
| 0.8 MPa | 9.6 m³/min | 9600 l/min | |
| 1.0 MPa | 8.5 m³/min | 8500 l/min | |
| 1.2 MPa | 7.6 m³/min | 7600 l/min | |
The compressor consists of the following main elements:
Compared to other models on the market in Ukraine, Specialist industrial screw compressors are assembled from high-quality and durable components. We have filters and spare parts available in stock for post-warranty service.

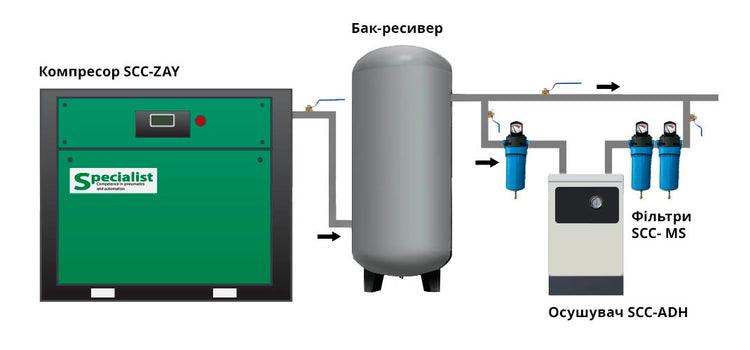

We supply ready-to-connect and ready-to-use screw compressors series SCC-ZAY-75. The compressor should be connected to a three-phase alternating current network with a voltage of 380 V and a frequency of 50 Hz. Connect to the air pipeline using a pipe with a cylindrical thread (size depends on the model).
More detailed installation requirements (room ventilation, distances to walls) are provided in the manual.
Some models of SCC-ZY compressors are in stock at the "Specialist" in Ukraine, others are available to order in 60 days. Our company also supplies both individual compressors and complete compressed air equipment packages — receivers, dryers, filters, pressure boosters, valves, regulators, distributors, cylinders, etc.
Call us to get a commercial offer with a price and a detailed presentation of the equipment we can provide per your request.
