Specialist series compressors SCC-ZAY-40 are a complete assembly of a screw oil-injected compressor 30 kW with a capacity of ~5 cubic meters of air per minute. The compressor is intended for stationary installation and high-pressure boosting — from 7 to 10 bar (by default), up to 12 bar — on order.

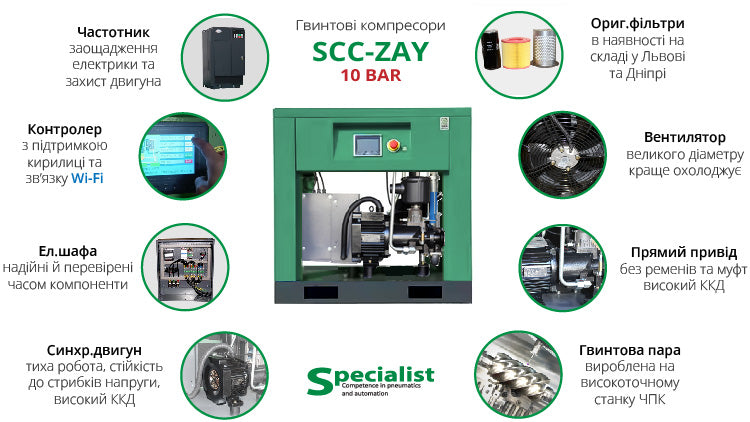

The compressor is controlled via a controller with a touch-screen display that supports Cyrillic. By connecting through Wi-Fi you can monitor the compressor's parameters and receive notifications for filter replacement on a mobile device or computer. The casing has a dust and moisture protection degree of IP23.
The unique feature of this series is the integrated frequency converter allowing regulation not only of discharge pressure but also output of the compressor. This saves electricity and increases the compressor’s operational lifespan.
The performance of any compressor varies with outlet air pressure.
| Model | SCC-ZAY-40 | ||
|---|---|---|---|
| Power, kW | 30 | ||
| Performance at the Stated Discharge Pressure | 0.7 MPa | 5.2 m3/min | 5200 L/min |
| 0.8 MPa | 5.0 m3/min | 5000 L/min | |
| 1.0 MPa | 4.3 m3/min | 4300 L/min | |
| 1.2 MPa* | 3.7 m3/min* | 3700 L/min* | |
Note that the controller can be set to 11-12 bar, but operation at maximum allowable pressure values is not recommended by the manufacturer. For continuous pressure boosting consider 1.2 MPa compressors.
The compressor is comprised of the following main elements:
Compared to similar products in Ukraine, Industrial screw compressors by Specialist are assembled using high-quality and durable components. We have filters and spare parts in stock for post-warranty service.

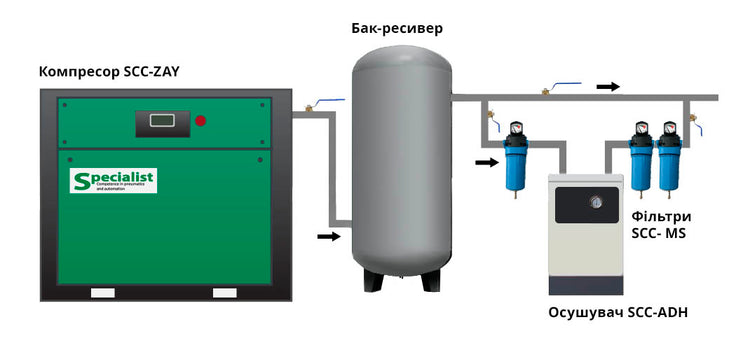

We deliver series SCC-ZAY-40 screw compressors ready for connection and operation. To power the compressor, connect it to a three-phase alternating current electrical network with a voltage of 380 V and frequency of 50 Hz. To the air pipeline — using a fitting with a cylindrical pipe thread (size depends on the model).
More detailed requirements for compressor installation (room ventilation, clearance to walls) are provided in the instructions.
Part of the SCC-ZAY compressor models are available in stock at "Specialist" in Ukraine, others are offered for delivery on order in 60 days. Our company also supplies both individual compressors and a comprehensive set of equipment for compressed air operations — receivers, dryers, filters, pressure amplifiers, valves, regulators, distributors, cylinders, etc.
Call us to receive a commercial offer with pricing and a detailed presentation of the equipment we can provide according to your requirements.
