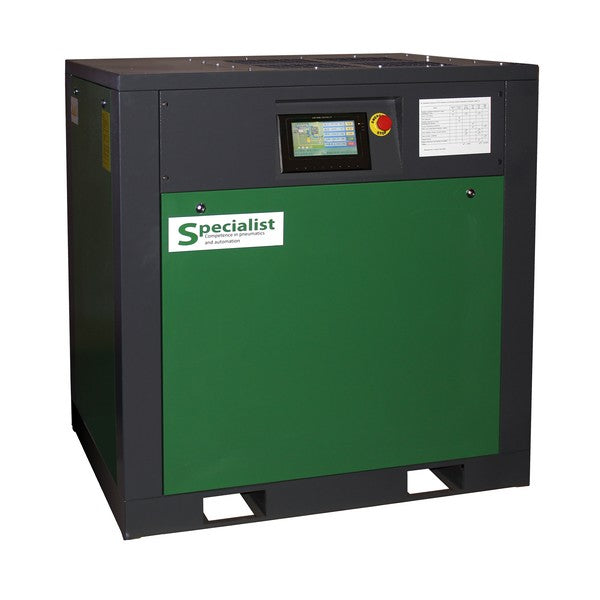

Screw compressor 7~10 bar, max. 3800 l/min, 22 kW (SCC-ZA-30)

SCC-ZA-30 is a single-stage screw compressor 22 kW with performance of up to 3800 l/min Specialist, a ready assembly of screw oil-filled compressor for stationary installation. Designed for high-pressure air compression — from 7 to 10 bar (by default), up to 12 bar — on request.

Compressor control is via a controller with a touch Touch Screen display, supporting Cyrillic. With Wi-Fi connection, you can view compressor parameters and receive filter replacement notifications on a mobile device or computer. The casing has a dust and moisture protection rating of IP23.

Performance of SCC-ZA Series Screw Compressors and Model Selection

When selecting a model, consider that the performance of any compressor depends on the outlet air pressure. Use the table to buy the necessary power ZA screw compressor.

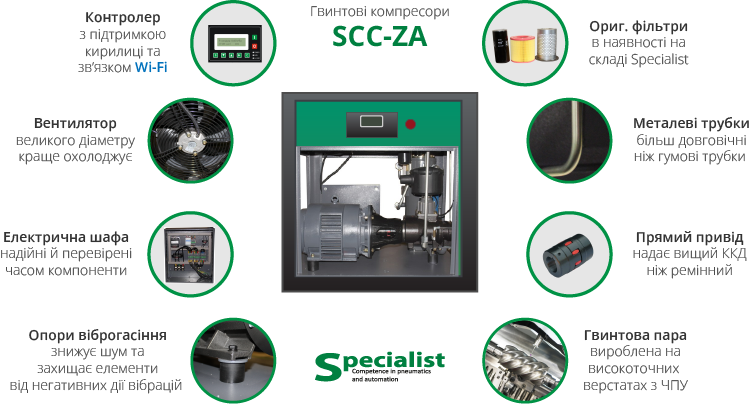

Design and Advantages of SCC-ZA Screw Compressor

The compressor consists of the following main components:

• screw assembly (pair)
• direct drive electric motor
• air-oil separator
• oil pipe system
• cooling system
• air pipeline system
• electrical control system (controller and built-in electrical cabinet)

Compared to similar products on the Ukrainian market, Specialist industrial screw compressors are assembled from high-quality and durable components. We have filters and spare parts in stock for after-sales service.

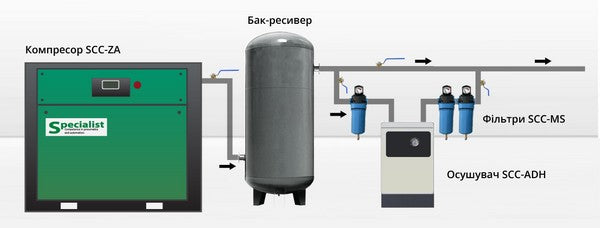

Connecting SCC-ZA Compressor

We supply SCC-ZA series screw compressors, ready for connection and operation. The compressor should be connected to a three-phase AC power supply with a voltage of 380 V and a frequency of 50 Hz. To the air duct — via a pipe with a cylindrical thread (size depends on the model).

More detailed installation requirements (room ventilation, distances to walls) are provided in the manual.
