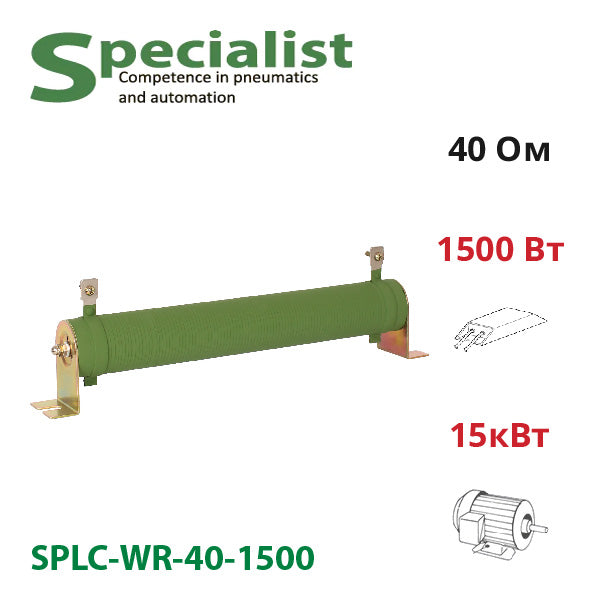

Braking resistor 40 Ohm 1500 W SPLC-WR-40-1500 for frequency converter 15 kW
In Stock
Product Code:
SPLC-WR-40-1500
Brand:
Specialist
1 598,76 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-40-1500 is commonly used as a braking resistor for 15 kW frequency converters for three-phase motors 380 V — selection should be based on the characteristics recommended by the frequency converter manufacturer and the calculated braking power of the motor. This wire-wound resistor has a resistance of 40 Ohm and power of 1500 W.
Braking resistors of the WR series are made from a ceramic tube, around which wire made from an iron-chrome-aluminum alloy (by default) or nichrome (on request) is wound. The ceramic body serves as an insulator and heat sink, resistant to high temperatures and corrosion. The wire has high specific electrical conductivity, allowing efficient dissipation of heat generated during motor braking.
| Model | SPLC-WR-40-1500 |
|---|---|
| Rated Power | 1500 W |
| Rated Resistance | 40 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Rated Load | 50-200 W, surface temperature less than 275°C; more than 200 W — 350°C |
| Short Term Overload | without visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, DC 1000 V |
| Dielectric Strength | Without visible damage, no arcing ΔR ≤ ±(0.1%R + 0.05 Ohm), AC 3000 V, 5 s |
| Terminal Strength | without visible damage, 45 N 30 s |
| Material | 0Cr25AL5/Cr20Ni80 |
| Protection Class | IP00 |
| Storage Temperature | from -40 to 50°C (dry conditions) |
