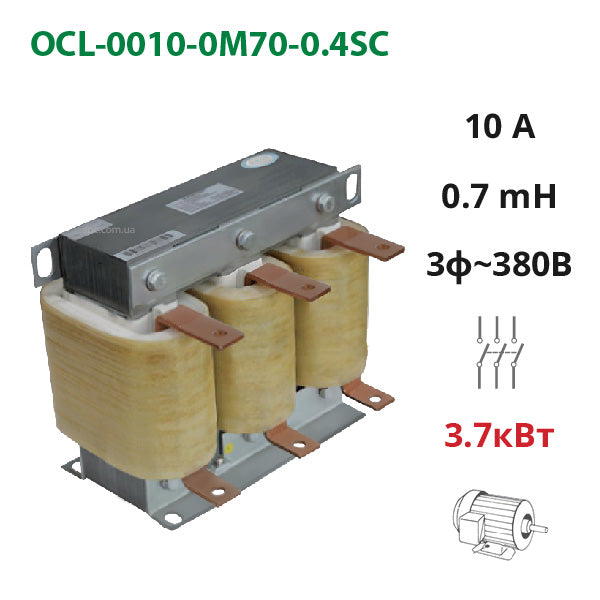

Motor (output) choke 10A, 380V, 3.7 kW, 0.7 mH (OCL-0010-0M70-0.4SC)
In Stock
Product Code:
SPLC-OCL-0010-0M70-0.4SC
Brand:
Specialist
5 024,28 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Three-phase motor choke 10A, 380V, 3.7 kW, 0.7 mH OCL-0010-0M70-0.4SC is installed at the output of the frequency converter to filter the current supplied to three-phase electric motors of 380 V. The purpose of the output choke is as follows:
- Creating inductive resistance, which limits the motor's power supply current and thus prevents its overload and damage;
- Preventing sharp current surges during motor start-up, which may damage the equipment;
- Cleaning the current sine wave from unwanted high harmonics (high-frequency noise) generated in the electric drive.
Use the AC output choke in the circuit between the frequency converter and the asynchronous electric motor to improve the quality of the drive's power supply, as well as for safe and long-term equipment operation.
Technical specifications of the motor output choke OCL-0010-0M70-0.4SC
| Operating voltage | 3 phases 380 V |
|---|---|
| Voltage drop | 1% for 380 V (less than 4%) |
| Operating frequency | 50/60 Hz |
| Operating current | 10 A |
| Maximum current | can exceed the operating current by no more than 150% for 60 seconds |
| Inductance | 0.7 mH |
| Insulation class | F, H |
| Protection class | IP00 - IP22 |
| Noise | ≤65 dB |
| Temperature rise | ≤85 K |
| Dielectric permeability | AC 3000 V/50 Hz/5 mA/10 s |
| Insulation resistance | 100 VDC, ≤100 MΩ |
| Operating ambient temperature | -25 ~ +45℃ |
Operating conditions of the motor choke (line reactor) OCL-0010-0M70-0.4SC
- Within the temperature range from minus 10 to 45℃ the nominal parameters of the choke are tabulated. At temperatures above 55℃, the nominal current decreases by approximately 2% with each additional +1℃.
- Altitude should not exceed 2000 m above sea level.
- Air humidity less than 90%.
- Environment: free from harmful gases, flammable materials, with good ventilation.
When placing the choke in a cabinet, ventilation must be provided for sufficient equipment cooling.
