Ball valve coupling 3/4″ stainless steel DU20 with handle SCBV-Q601-16FA-20

Do you have any questions about the product?
We will be happy to answer them in messengers

Ball valve coupling 3/4″ stainless steel DU20 with handle SCBV-Q601-16FA-20

Name: Ball valve coupling 3/4″ stainless steel DU20 with handle SCBV-Q601-16FA-20
Brand: Specialist
SKU: SCBV-Q601-16FA-20
Price: 467.76 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 3/4

Model

Manufacturer

Specialist

from 467,76 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q601-16FA-20

Ball valve coupling 3/4″ stainless steel DU20 with handle SCBV-Q601-16FA-20

Diameter of conditional passage=20 Thread size=G 3/4

SCBV-Q601-16FA-20

467,76 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 3\4"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Body material

SS201 stainless steel

Nominal diameter

TWO 20

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

Handled

Description

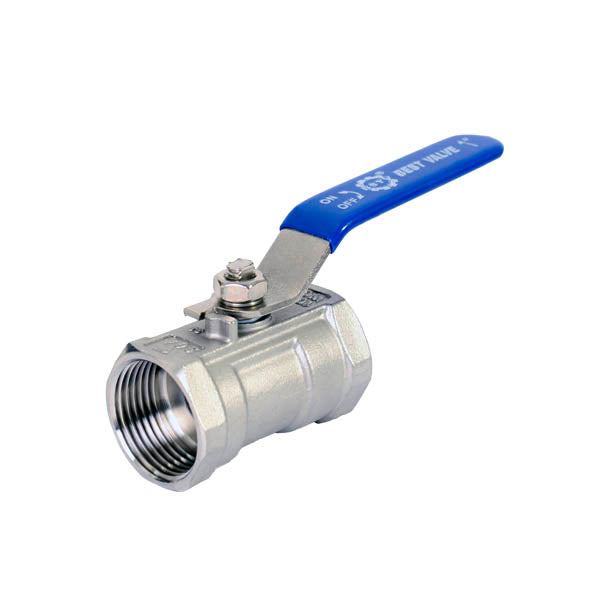

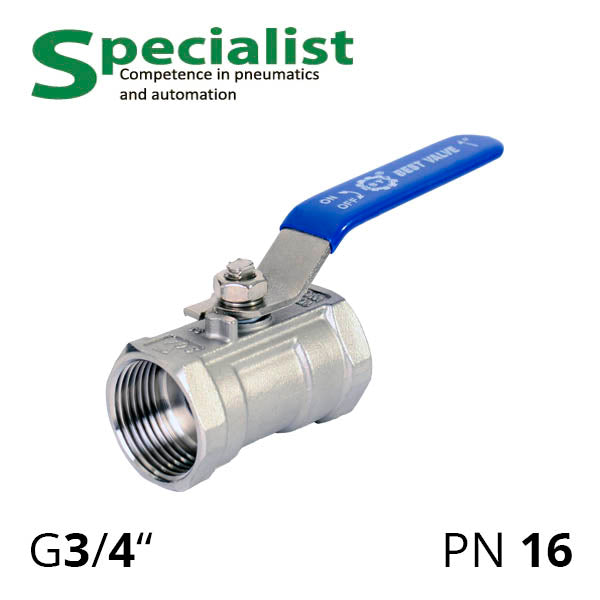

The SCBV-Q601-16FA-20 series is a ball valve v-v size 3/4″, diameter — reduced bore, with manual operation, made of stainless steel AISI 304. Installation of these ball valves is allowed on cold and hot water pipes, for steam, for food (beverages, drinking water, syrup), industrial pipelines for a range of petroleum products (without sulfur, chlorine and other aggressive impurities, as well as substances incompatible with PTFE)

The semi-pass-through type of socket welded ball valve SCBV-Q601-16FA-20 has a narrowing and smaller ball size relative to the pipeline diameter. The body is solid and non-detachable, made of stainless steel 201. Marking on the shut-off valve:

3/4″ (corresponds to DU 20 mm)
304 (grade of stainless steel of the ball)
1000 WOG - intended for water, oils and gaseous substances; maximum pressure - 16 bar (1.6 MPa) (depending on temperature).

PTFE ball valve with teflon seals withstands operating temperatures from minus 40 to 180 degrees Celsius (without liquid freezing).
