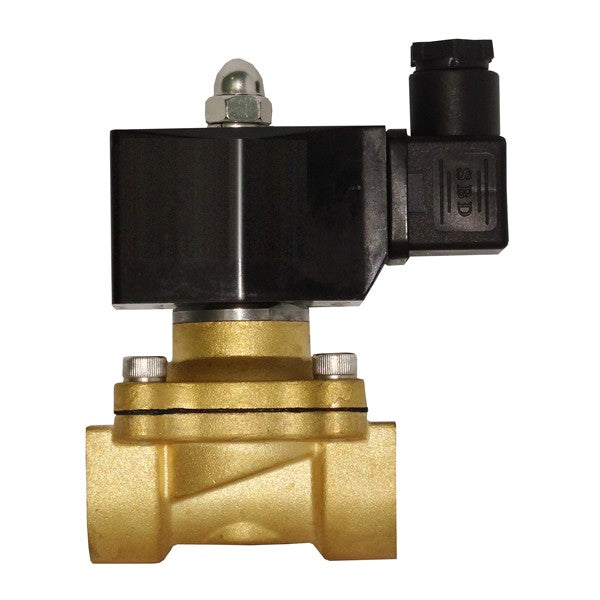

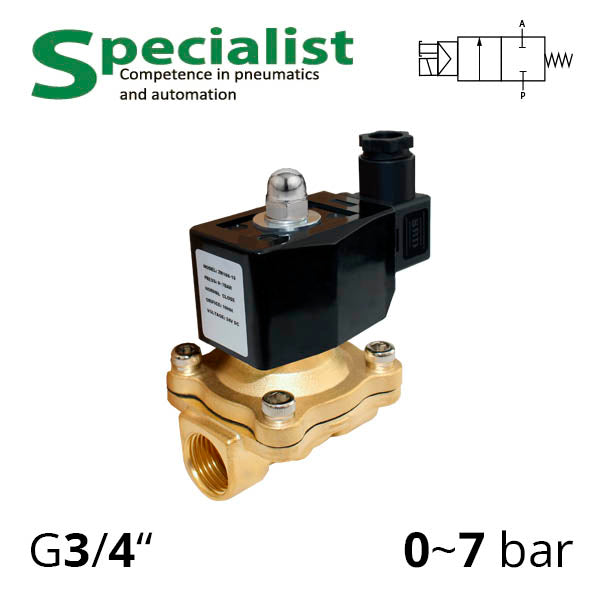

Solenoid valve 2/2 normally closed with thread G ¾” series SV-ZS11-ES-22NC-20

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve 2/2 normally closed with thread G ¾” series SV-ZS11-ES-22NC-20

Name: Solenoid valve 2/2 normally closed with thread G ¾” series SV-ZS11-ES-22NC-20
Brand: Specialist
SKU: SV-ZS11-ES-22NC-20-DC24V
Price: 1978.02 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G ¾

Model

Manufacturer

Specialist

from 1 978,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-ZS11-ES-22NC-20-DC24V

Solenoid valve 2/2 normally closed with thread G ¾” series SV-ZS11-ES-22NC-20

Power Voltage=DC24V Thread size=G ¾

SV-ZS11-ES-22NC-20-DC24V

1 978,02 UAH

In Stock

SV-ZS11-ES-22NC-20-AC220V

Solenoid valve 2/2 normally closed with thread G ¾” series SV-ZS11-ES-22NC-20

Power Voltage=AC220V Thread size=G ¾

SV-ZS11-ES-22NC-20-AC220V

1 978,02 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ¾"

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 20

Тип контролю

Electromagnetic

Description

SV-ZS11-ES-22NC-20 is often used as an electromagnetic valve for water 3/4″ and other fluids. The device belongs to two-position normally closed valves with DN 20 diaphragm type with single-sided pilot electric control, featuring a pipe cylindrical thread G ¾”. Our company supplies ZS valves on order with various body and seal materials. This allows covering a wide range of valve applications for different working environments and temperatures. Working pressure from 0 bar, and solenoid voltage DC 24V or AC 220V. The valves can work in gravity-fed systems without pressure.

Technical Specifications of Solenoid Valves 2/2 NC Series SV-ZS11-ES-22NC-20
Design	Two-line two-position normally closed valve with single-sided pilot electric control
Material	Bronze, NBR (standard) Stainless Steel AISI304 or AISI316, VITON (on request)
Connection	G3/4”
Mounting	Vertical
Operating Temperature Range	from −5 to +80 °C (at dry air without moisture)
Power Supply Voltage	AC220V, DC24V
Allowable Voltage Variation	±10%
Working Medium	Air, water, oils (viscosity up to 20CTS), gas
Operating Pressure Range	0—5 bar (water), 0—7 bar (air), 0—5 bar (oil)
