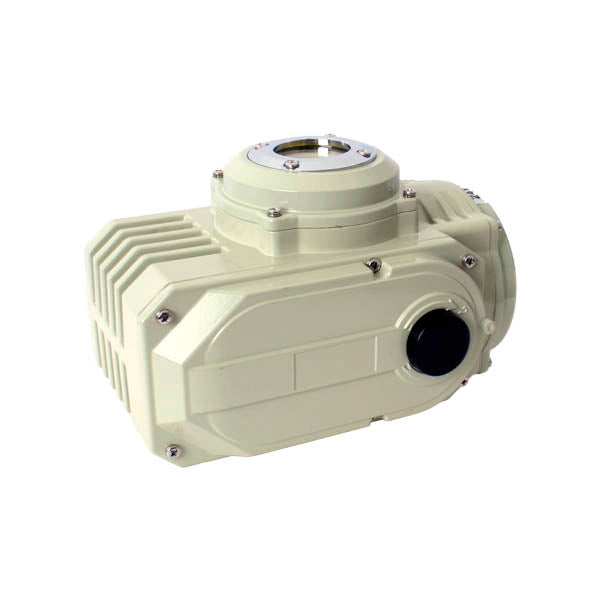

Rotary electric drive for shut-off and adjustable fittings 90° SCBF-HL-10-A
In Stock
Product Code:
SCBF-HL-10-A
Brand:
Specialist
17 068,56 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Rotary electric actuator for shut-off and control valves SCBF-HL-10-A features an adjustable rotation angle 0~90 degrees and torque up to 100 Nm. This electric actuator is designed for precise control of industrial ball valves or butterfly valves with DN 50~125, with a standardised mounting interface for actuators F05/F07 according to ISO 5211/DIN3337.
The model SCBF-HL-10-A is powered by AC voltage AC220V. This model can be ordered with heating, different power supply, and signal options.
| Output Torque | 100 Nm |
|---|---|
| Motor Power | 23 W |
| Rated Current | 0.32 A |
| Operating Time | 30 s |
| Rotation Angle | from 0 to 90° (adjustable) |
| Input Signal | 4-20 mA (standard), 1-5 V or 0-10 V on request |
| Output Signal | 4-20 mA, other types on request |
| Power Supply Voltage | AC 220 Volts (standard), on request DC24V, AC24V, AC110V |
| Protection | IP67 |

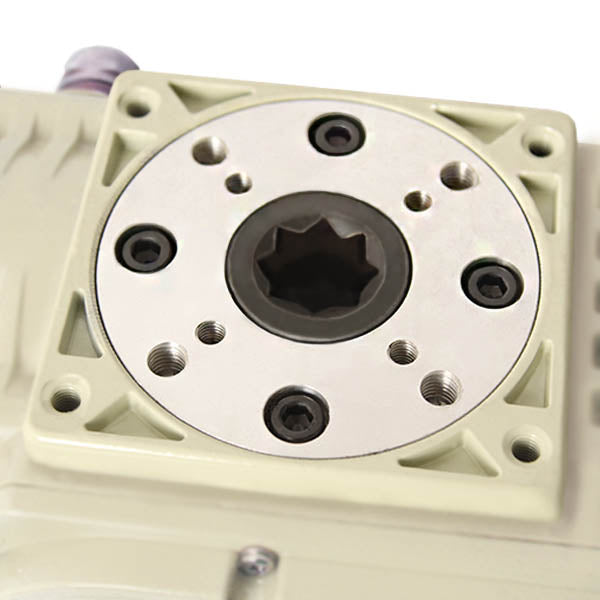

| Shaft Slot | Star or square 14×14 mm |
| Flange | F05/F07 |
| Ambient Temperature | from −25 to 60 °C |
| Weight | 4 kg |
