Rotary electric drive for 90° shut-off valves SCBF-HL-05
In Stock
Product Code:
SCBF-HL-05
Brand:
Specialist
6 528,90 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

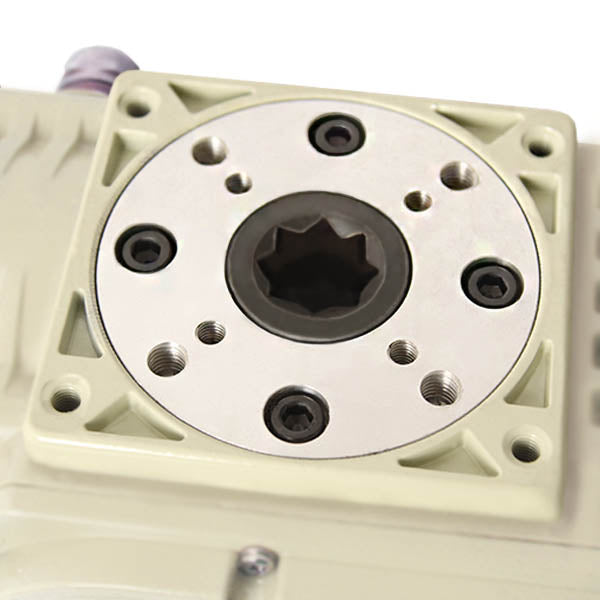

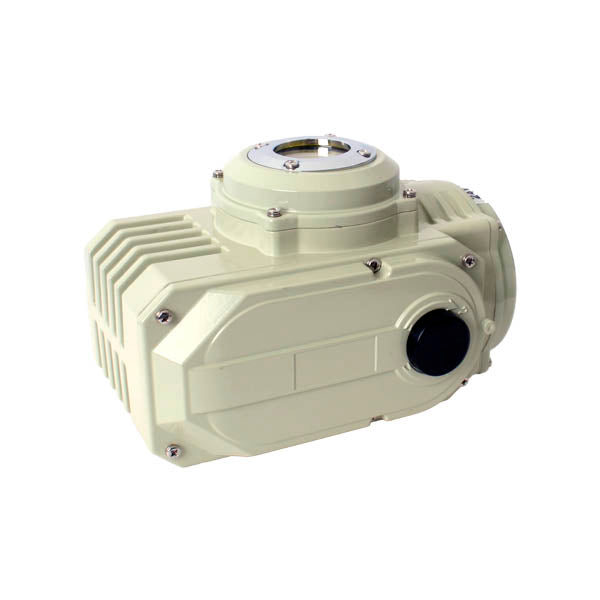

Rotary electric actuator for shut-off valves SCBF-HL-05 has a rotation angle of 90 degrees and a torque of up to 50 Nm. This electric actuator is designed for "open-close" operation with industrial ball valves or butterfly valves with a DN up to 80 mm, featuring a standardized mounting platform for actuator attachment F05/F07 according to ISO 5211/DIN3337.
Model SCBF-HL-05-A is powered by alternating current at AC220V. Available on order with alternative power, with heating. You may also be interested in the model with 4-20 mA regulation.
| Output torque | 50 Nm |
|---|---|
| Motor power | 10 W |
| Rated current | 0.24 A |
| Actuation time | 30 s |
| Rotation angle | from 0 to 90° (open and close) |
| Power supply voltage | AC 220 Volt (standard), on request DC24V, AC24V, AC110V |
| Protection | IP67 |
| Ambient temperature | from −25 to 60 °C |
| Shaft slot | Square 14×14 mm |
| Flange size | F05/F07 |
| Weight | 2.2 kg |
