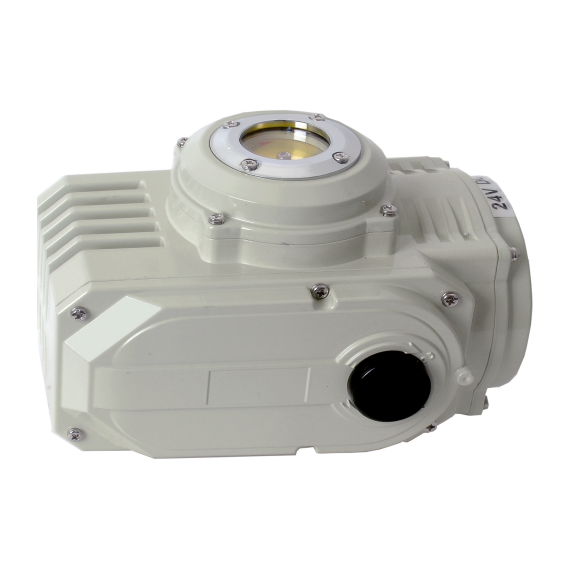

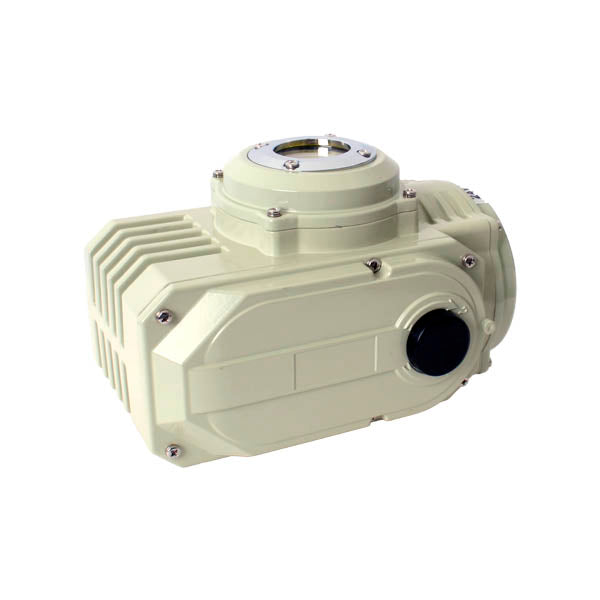

Rotary electric actuator for shut-off and control valves SCBF-HL-05-A has an adjustable rotation angle 0~90 degrees and a torque of up to 50 N⋅m. This electric actuator is designed for precise control of industrial ball valves or butterfly valves with up to 80 mm DN, equipped with a standardized mounting platform for the actuator F05/F07 according to ISO 5211/DIN3337.
Model SCBF-HL-05-A is powered by alternating current voltage AC220V. Available on order — with different power supply, control signal and with heating.
| Output torque | 50 N⋅m |
|---|---|
| Motor power | 10 W |
| Rated current | 0.24 A |
| Operating time | 30 s |
| Rotation angle | from 0 to 90° (adjustable) |
| Input signal | 4-20 mA (standard), 1-5 V or 0-10 V on request |
| Output signal | 4-20 mA, other types on request |
| Power supply voltage | AC 220 Volts (standard), on request DC24V, AC24V, AC110V |
| Protection | IP67 |
| Ambient temperature | from −25 to 60 °C |

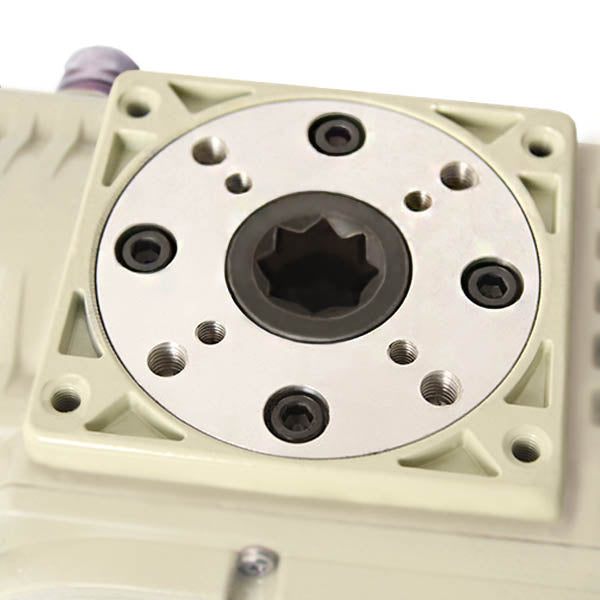

| Shaft key | Square 14×14 mm |
| Flange size | F05/F07 |
| Weight | 2.2 kg |
