Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Name: Disc rotary latch DU 50 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-50-HL-05
Price: 7820.16 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Електропривод

50 Нм 100 Нм

Model

Manufacturer

Specialist

from 7 748,76 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-50-HL-05

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM Електропривод=50 Нм

SCBF-D674-10XEC-50-HL-05

7 820,16 UAH

In Stock

SCBF-D674-10XES-50-HL-05

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM Електропривод=50 Нм

SCBF-D674-10XES-50-HL-05

7 748,76 UAH

In Stock

SCBF-D674-10XFS-50-HL-10

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE Електропривод=100 Нм

SCBF-D674-10XFS-50-HL-10

10 471,26 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

41 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 50

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Електропривод

50 Нм, 100 Нм

Тип контролю

With electric drive

Description

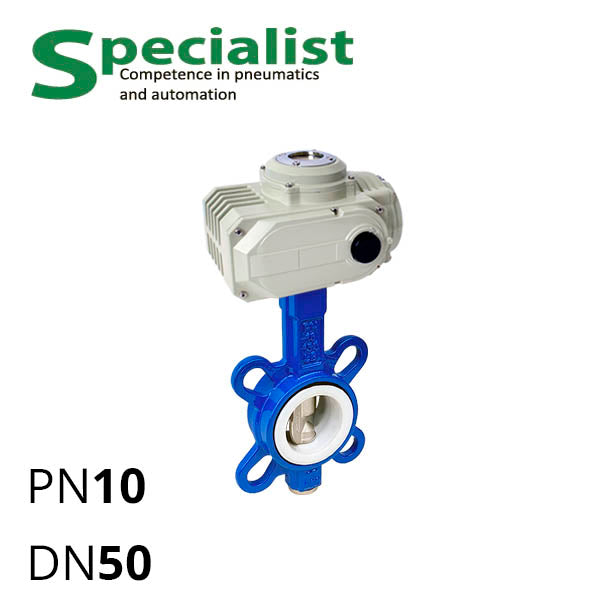

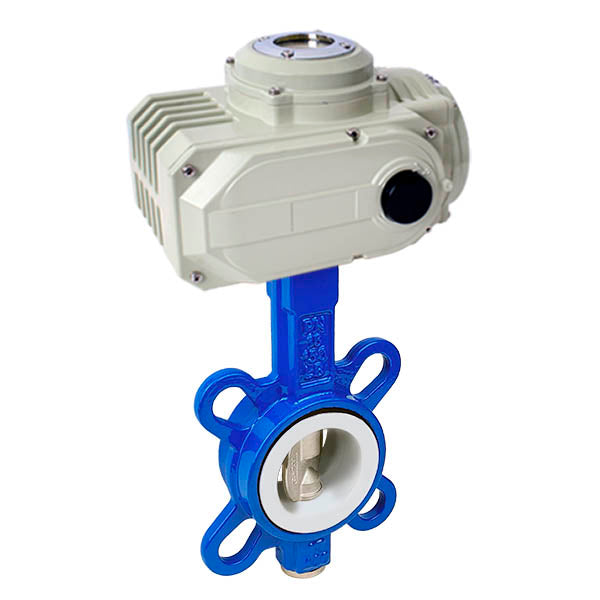

SCBF-D674-10XEC/10XES/10XFS-50-HL-05 is an industrial stainless steel wafer butterfly valve DN 50 with electric actuator. For wafer type installation. The butterfly valve "butterfly" is constructed with a body of WCB and a disc made of food-grade stainless steel CF8 or CF8M, equivalent to AISI 304/316 SS. It is detachable and repairable. The actuator mechanism is designed for opening and closing the work medium in pipes with a nominal diameter of DN 50 mm.

These stainless steel wafer butterfly valves DN 50 are equipped with a shut-off type actuator, which has 2 positions: open and closed. The working medium should be checked for compatibility with SS304/SS316 and EPDM/PTFE. For liquids containing organic acids (acetic, citric, lactic, etc.), SS304+EPDM is suitable, whereas for petroleum products or steam, SS316+PTFE should be chosen.

Permissible working pressure (by default) — PN up to 10 bar.

Table — Main Parameters of Electric Actuated Butterfly Valve SSCBF-D674-10XEC/10XES/10XFS-50-HL-05
DN	50 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB to ASTM A216
Disc Material	CF8 or CF8M (SS304 or SS316)
Seal Material	EPDM or PTFE
Operating Temperature EPDM	from −30 to 95° C
Operating Temperature PTFE	from −40 to 160° C
Installation Thickness	41 mm
Electric Actuator	SCBF-HL-05/10 (2 pos.)
Power Supply	220 Volts
Actuator Torque	50 Nm or 100 Nm
