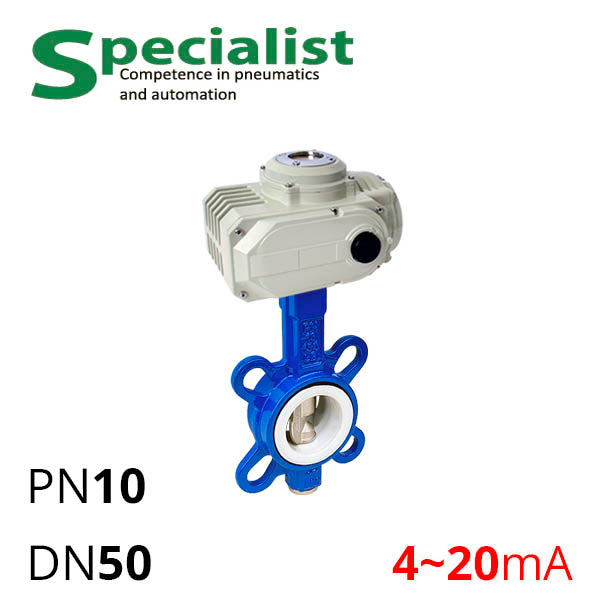

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Name: Disc rotary latch DU 50 stainless with electric drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-50-HL-05-A
Price: 16068.18 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Електропривод

50 Нм 100 Нм

Model

Manufacturer

Specialist

from 15 996,78 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-50-HL-05-A

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Диск=SS304 Ущільнення=EPDM Електропривод=50 Нм

SCBF-D674-10XEC-50-HL-05-A

16 068,18 UAH

In Stock

SCBF-D674-10XES-50-HL-05-A

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=EPDM Електропривод=50 Нм

SCBF-D674-10XES-50-HL-05-A

15 996,78 UAH

In Stock

SCBF-D674-10XFS-50-HL-10-A

Disc rotary latch DU 50 stainless with electric drive SCBF-D674

Диск=SS316 Ущільнення=PTFE Електропривод=100 Нм

SCBF-D674-10XFS-50-HL-10-A

18 719,28 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

41 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 50

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Електропривод

50 Нм, 100 Нм

Тип контролю

With electric drive

Description

Industrial regulating stainless steel wafer-type butterfly valve with electric actuator from the series SCBF-D674-10XEC/10XES/10XFS-50-HL-05-A is a dismantlable and repairable "butterfly" valve with a disc made of food-grade stainless steel CF8 or CF8M, which are analogous to AISI 304/316 SS. It is installed for medium regulation on pipes with a nominal passage diameter of DN 50 mm.

These stainless steel wafer-type butterfly valves DN 50 are equipped with a regulating type of actuator, which can stop proportionally to the signal 4-20 mA in intermediate positions between 0~90° to change the flow of the working medium, which should be checked for compatibility with SS304/SS316 and EPDM/PTFE. For liquids with organic acid content (acetic, citric, lactic, etc.), SS304+EPDM is suitable, whereas for oil products or steam, SS316+PTFE should be chosen. Contact Specialist's hotline if you want us to select a valve with suitable materials for you.

The allowable working pressure (by default) — PN up to 10 bar.

Table — Main Parameters of Electric Actuated Butterfly Valve SSCBF-D674-10XEC/10XES/10XFS-50-HL-05-A
DN	50 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB to ASTM A216
Disc Material	CF8 or CF8M (SS304 or SS316)
Seal Material	EPDM or PTFE
Operating Temperature EPDM	from −30 to 95° C
Operating Temperature PTFE	from −40 to 160° C
Mounting Thickness	41 mm
Electric Actuator	SCBF-HL-05/10-A (multi-position)
Power Supply	220 Volts
Control Signal	4-20 mA
Actuator Torque	50 N⋅m or 100 N⋅m
Type	Shut-off and Regulating Valve
