Knife gate latch DU 200 cast iron SCBF-PZ673X-10JC-200 with flywheel

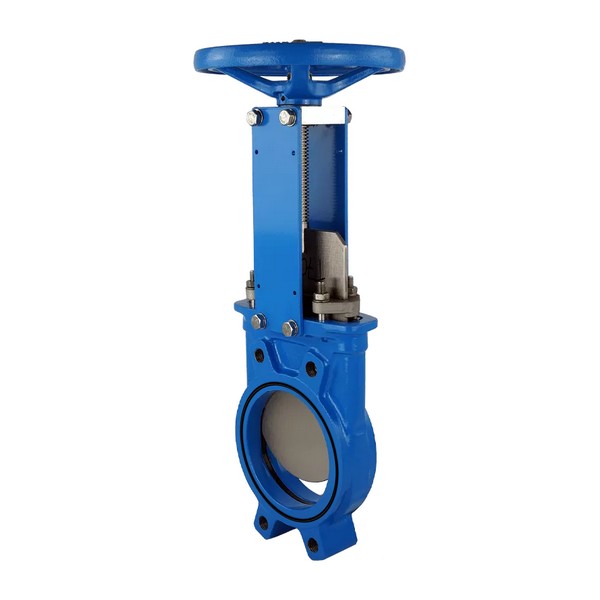

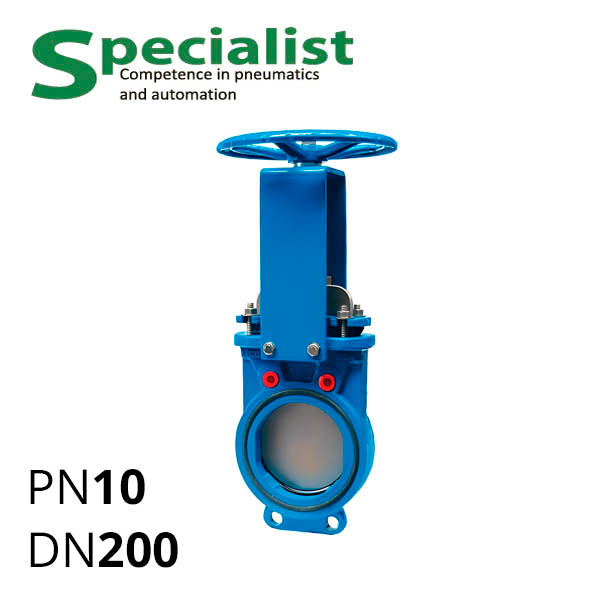

Model SCBF-PZ673X-10JC-200-M is a cast iron wedge gate valve flanged DN200 PN10 with a rising stem and handwheel for manual closure. This bi-directional knife gate DN 200 made of cast iron is designed for operation with media without pressure or under pressure 9.8 bar and temperatures up to 80°C, including for gas, liquids, and bulk materials.

The company “Specialist” offers the production of knife gate valves based on series from the online shop, but with customer-required modifications: with rubber lining for the wedge, stainless steel, more compact without a rising stem, with high-temperature EPDM or Viton rubber. We select materials for your working environment

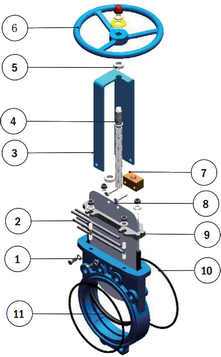

Design Features of the Standard Gate SCBF-PZ673X-10JC-200-M with DN200

• Reinforced NBR. Rubber seal reinforced with steel wire around the seat perimeter under the wedge — helps maintain shape, increases lifespan and airtightness.
• Rising Stem. Serves as an indicator of the gate position DN 200, and is also a more reliable design.
• WCB. Although WCB is called cast iron, it is actually cast carbon steel — it is more impact-resistant and withstands high pressure, which is important for industrial valves.
• Standard flange connection: PN10, PN16, 10K, 150LB, TABLED, DIN.
• Operating pressure: 10 kg/cm² for DN200. This is when converting pressure to other units 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Designation PN 10.
