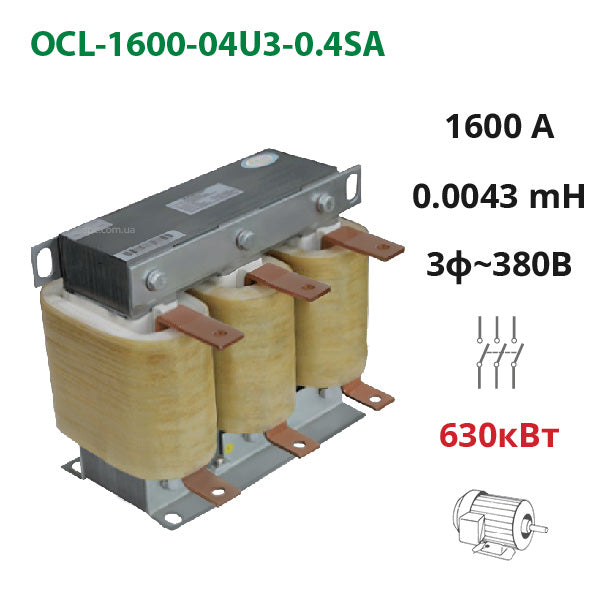

Motor (output) choke 1600A, 380V, 630kW, 0.0043 mH (OCL-1600-04U3-0.4SA)
In Stock
Product Code:
SPLC-OCL-1600-04U3-0.4SA
Brand:
Specialist
116 928,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Three-phase motor choke 1600A, 380V, 630kW, 0.0043 mH OCL-1600-04U3-0.4SA is installed at the output of the frequency converter to filter the current supplied to three-phase 380 V electric motors. The purpose of the output motor choke is as follows:
- Creating an inductive resistance that limits the motor supply current, thus preventing overload and damage;
- Preventing sharp current spikes during motor start-up, which can fail the equipment;
- Cleaning the current sinusoid from unwanted high harmonics (high-frequency noise) occurring in the electric drive.
Use the AC output choke in the circuit between the inverter and the asynchronous motor to improve drive power quality and ensure safe and long-term equipment operation.
Technical specifications of the motor output choke OCL-1600-04U3-0.4SA
| Operating Voltage | 3 phases 380 V |
|---|---|
| Voltage Drop | 1% for 380 V (less than 4%) |
| Operating Frequency | 50/60 Hz |
| Operating Current | 1600 A |
| Maximum Current | may exceed operating by no more than 150% for 60 s |
| Inductance | 0.0043 mH |
| Insulation Class | F, H |
| Protection Class | IP00 - IP22 |
| Noise | ≤65 dB |
| Temperature Rise | ≤85 k |
| Dielectric Strength | AC 3000 V/50 Hz/5 mA/10 s |
| Insulation Resistance | 100 VDC, ≤100 MΩ |
| Ambient Operating Temperature | -25 ~ +45℃ |
Operating conditions of the motor choke (line reactor) OCL-1600-04U3-0.4SA
- In the temperature range from minus 10 to 45℃, the choke parameters are tabular. For temperatures above 55℃, the nominal current decreases by approximately 2% for each additional +1℃.
- The altitude above sea level should not exceed 2000 m.
- Air humidity less than 90%.
- Environment: free from harmful gases, flammable objects, with good ventilation.
When placing the choke in a cabinet, ensure ventilation for adequate equipment cooling.
