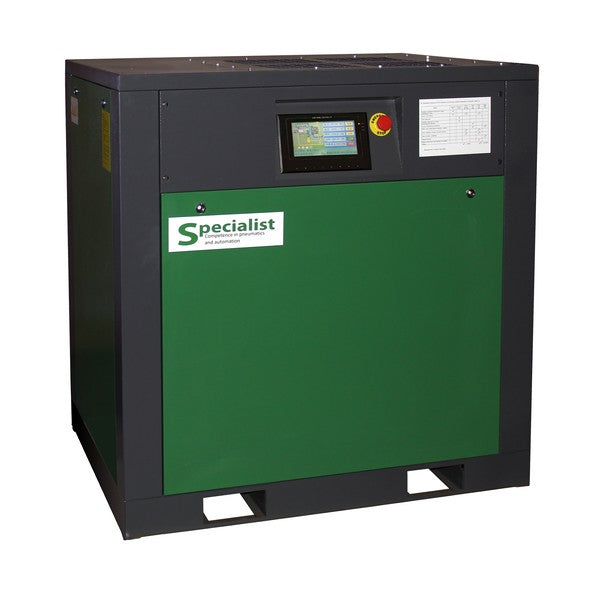

Screw compressor 7700 l/min, 10 bar, 45 kW (SCC-ZA-60)

The SCC-ZA-60 is a screw compressor with a capacity of 45 kW and 7700 L/min by Specialist, ready to use for stationary installation. Designed for compression of air at high pressure — from 7 to 10 bar (default), up to 12 bar — on request.

The compressor is controlled via a controller with a touch screen Touch Screen-display which supports Cyrillic. Through Wi-Fi connection, you can view compressor parameters and receive notifications about filter replacements on a mobile device or computer. The housing has a dust and moisture protection rating of IP23.

Productivity of SCC-ZA series single-stage screw compressors and model selection

When selecting a model, consider that any compressor's productivity depends on the outlet air pressure. Use the table to buy the necessary power ZA screw compressor.

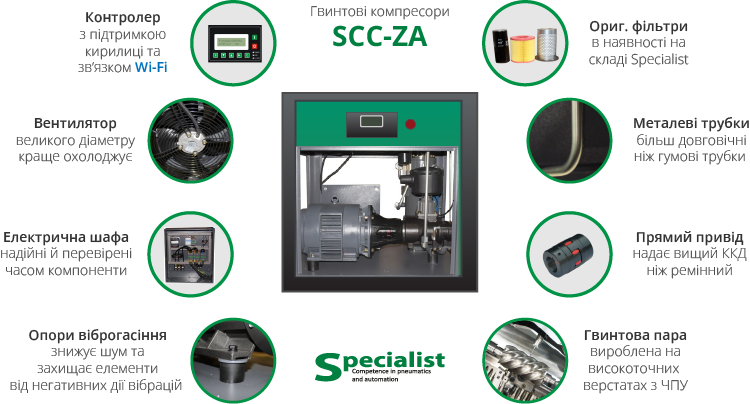

Design and Advantages of the SCC-ZA Screw Compressor

The compressor consists of the following main elements:

• screw block (pair)
• direct-drive electric motor
• air-oil separator
• oil pipeline system
• cooling system
• air pipeline system
• electrical control system (controller and built-in electric cabinet)

Compared to counterparts in the Ukrainian market, Specialist industrial screw compressors are assembled from high-quality and durable components. We have filters and spare parts for post-warranty service available in stock.

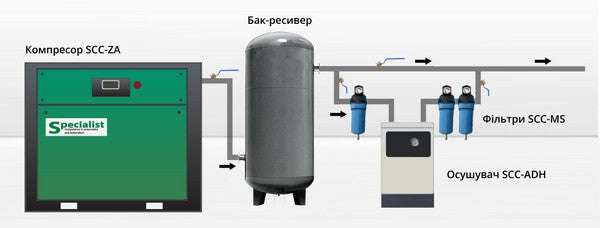

Connecting the SCC-ZA Compressor

We supply SCC-ZA series screw compressors, ready for connection and operation. For power, the compressor should be connected to a three-phase AC network with a voltage of 380 V and a frequency of 50 Hz. To the airline — using a hose with cylindrical pipe threads (size depends on the model).

More detailed installation requirements for the compressor (room ventilation, distances to walls) are provided in the manual.
