Specialist compressors series SCC-ZAY-60 are a ready assembly of an oil-filled screw compressor for stationary installation. Designed for high air pressure boost — from 7 to 10 bar (by default), up to 12 bar — on request.

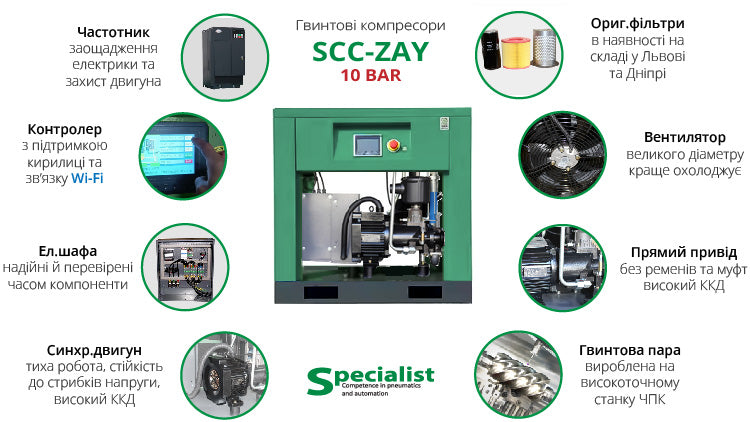

The compressor is controlled via a controller with a touch screen display that supports Cyrillic. Through Wi-Fi connectivity, you can view compressor parameters and receive filter replacement notifications on a mobile device or computer. The casing has an IP23 dust and moisture protection rating.
A feature of this series is the presence of a built-in frequency converter that allows you to adjust not only the boost pressure but also the compressor's performance. This saves electricity and increases the working life of the compressor.
When selecting a model, bear in mind that the performance of any compressor depends on the output air pressure. The highest volume 8 cubic meters of air — at low pressure 7 atm. Use the table to purchase the SCC-ZAY-60 screw compressor of the required power.
| Model | SCC-ZAY-60 | ||
|---|---|---|---|
| Power, kW | 45 | ||
| Performance at indicated boost pressure | 0.7 MPa | 8 m3/min | 8000 l/min |
| 0.8 MPa | 7.7 m3/min | 7700 l/min | |
| 1.0 MPa | 7 m3/min | 7000 l/min | |
| 1.2 MPa* | 5.8 m3/min* | 5800 l/min* | |
Note that the controller can be set for 11-12 bar, but the manufacturer does not recommend operation at the maximum permissible pressure values. For continuous boosting, consider 1.2 MPa compressors.
The compressor consists of the following main elements:
Compared to counterparts on the Ukrainian market, Specialist industrial screw compressors are assembled with high-quality and durable components. We have filters and spare parts in stock for after-sales service.

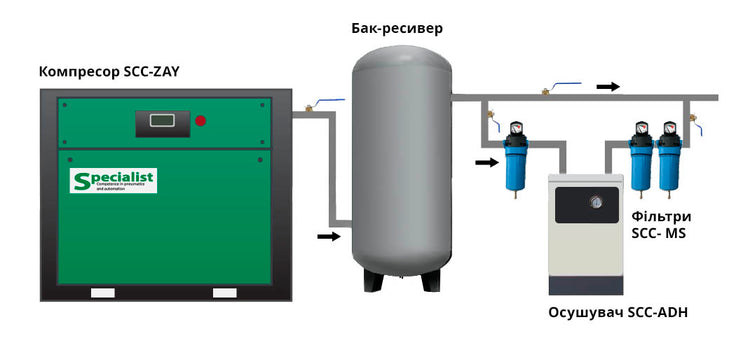

We supply screw compressors series SCC-ZAY-60 ready for connection and operation. The compressor should be connected to a three-phase AC power network with a voltage of 380 V and a frequency of 50 Hz. To the air duct — using a pipe with cylindrical thread (size depends on the model).
More detailed installation requirements of the compressor (room ventilation, wall distances) are provided in the instruction manual.
Some models of SCC-ZAY compressors are in stock at the "Specialist" warehouse in Ukraine, others we offer for delivery on order within 60 days. Our company also supplies both individual compressors and complex equipment for compressed air operation — receivers, dryers, filters, pressure boosters, valves, regulators, distributors, cylinders, etc.
Call us to get a commercial offer with a price and a detailed presentation of the equipment we can offer for your request.
