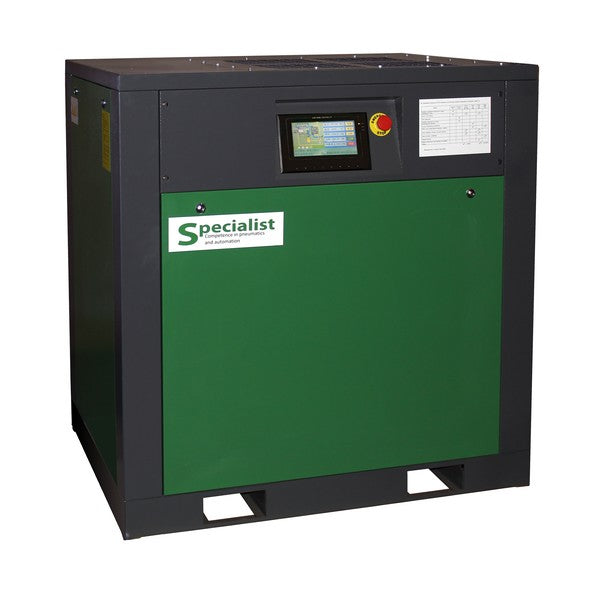

Screw compressor 7~10 bar, max. 2400 l/min, 15 kW (SCC-ZA-20)

The SCC-ZA-20 is a screw compressor 15 kW with a capacity of up to 2400 L/min from Specialist, which is a ready-to-assemble oil-filled screw compressor for stationary installation, featuring direct drive, a touchscreen control panel, and Wi-Fi. Designed for high-pressure air compression — from 7 to 10 bar (default), up to 12 bar — available on order.

Single-stage compressor control is via a controller with a touchscreen Touch Screen display that supports Cyrillic. Through Wi-Fi connection, you can view compressor parameters and receive notifications about filter replacements on a mobile device or computer. The casing has a dust and moisture protection rating of IP23.

Performance of SCC-ZA Series Screw Compressors and Model Selection

When selecting a model, consider that the performance of any compressor depends on the output air pressure. At a maximum of 10 atm, the nominal volume is 2000 L/min. Use the table to purchase the ZA series screw compressor with the required power.

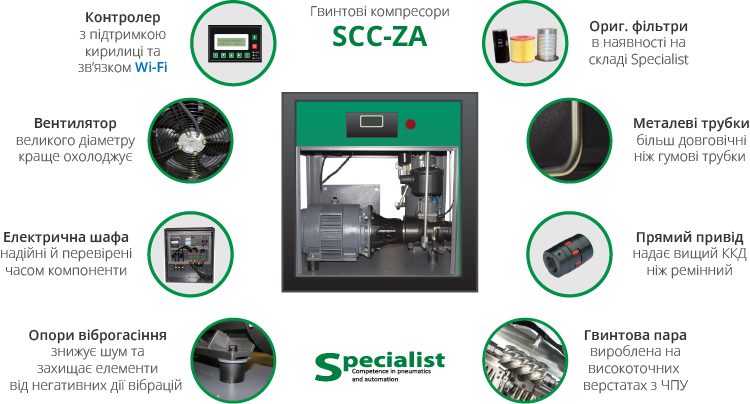

Design and Advantages of SCC-ZA Screw Compressor

The compressor consists of the following main elements:

• screw block (pair)
• direct drive electric motor
• air-oil separator
• oil pipeline system
• cooling system
• air pipeline system
• electrical control system (controller and built-in electrical cabinet)

Compared to other similar products on the Ukrainian market, Specialist's industrial screw compressors are assembled from high-quality and durable components. We have filters and spare parts for after-warranty service available in stock.

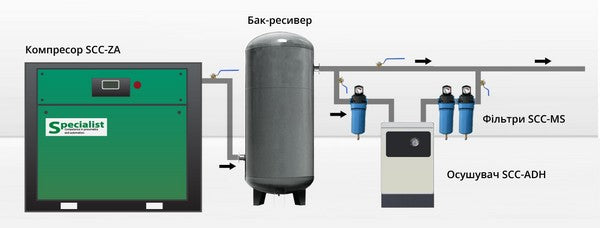

Connecting the SCC-ZA Compressor

We supply the SCC-ZA series screw compressors, which are ready for connection and operation. For power supply, the compressor must be connected to a three-phase AC power supply with a voltage of 380 V and a frequency of 50 Hz. To the air pipeline — by means of a cylinder thread pipe (size depends on the model).

More detailed installation requirements for the compressor (room ventilation, distance to walls) are provided in the instruction.
