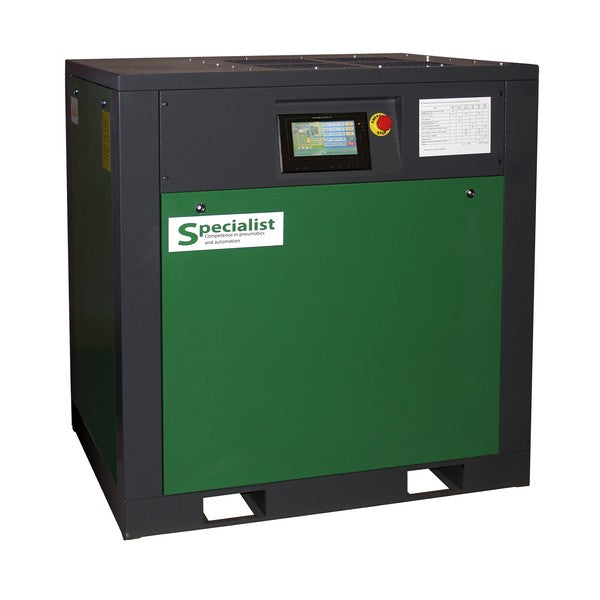

Screw compressor 55 kW, 7~10 bar, up to 10800 l/min (SCC-ZA-75)

SCC-ZA-75 is a screw compressor 55 kW with max. capacity 10800 l/min from Specialist, which is a ready assembly of an oil-injected screw compressor for stationary installation. Designed for generating high air pressure — from 7 to 10 bar (by default), up to 12 bar — on request.

Compressor management is performed via a controller with a touch Touch Screen display supporting Cyrillic. With Wi-Fi connection, you can view compressor parameters and receive filter replacement notifications on a mobile device or computer. The housing has dust and moisture protection rating IP23.

Performance of single-stage screw compressors series SCC-ZA-75 and model selection

When selecting a model, consider that the performance of any compressor depends on the outlet air pressure. Use the table to purchase the ZA screw compressor of the desired power.

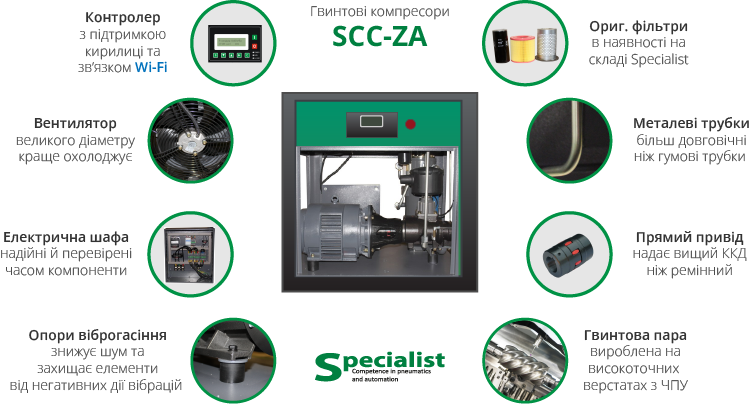

Construction and advantages of the SCC-ZA-75 screw compressor

The compressor consists of the following main components:

• screw unit (pair)
• direct-drive electric motor
• air-oil separator
• oil pipeline system
• cooling system
• air pipeline system
• electrical management system (controller and built-in electrical cabinet)

Compared to market analogues in Ukraine, industrial screw compressors from Specialist are assembled with high-quality and durable components. We have filters and spare parts available for post-warranty service.

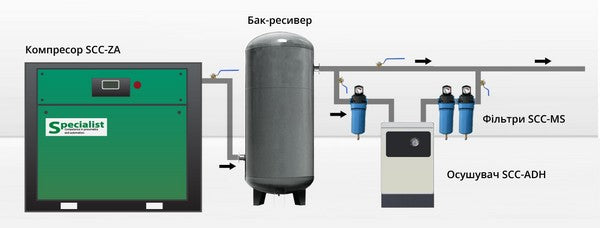

Connection of SCC-ZA-75 compressor

We supply screw compressors of the SCC-ZA-75 series, ready for connection and operation. For power supply, the compressor must be connected to a three-phase AC network with voltage 380 V and frequency 50 Hz. Connection to the air duct is through a nozzle with a pipe cylindrical thread (size depending on the model).

More detailed installation requirements for the compressor (room ventilation, distances to walls) are shown in the instructions.
