Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

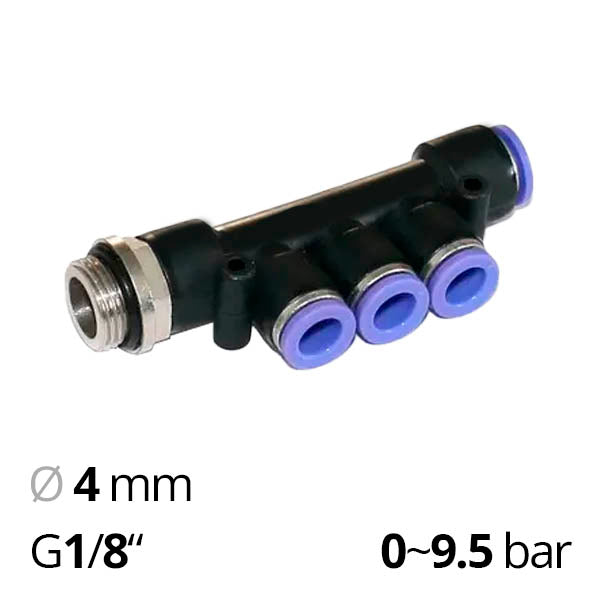

Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance

Name: Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance
Brand: Specialist
SKU: SF-EPKB 4-G01
Price: 155.94 UAH
Availability: InStock

In Stock

Zanga diameter

4 mm 6 mm 8 mm

Thread size

G 1/4 G 1/8 G 3/8

Model

Manufacturer

Specialist

from 155,94 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 6 variants


Name

Model Price Availability Qty

Action

SF-EPKB 4-G01

Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance

Zanga diameter=4 mm Thread size=G 1/8

SF-EPKB 4-G01

155,94 UAH

In Stock

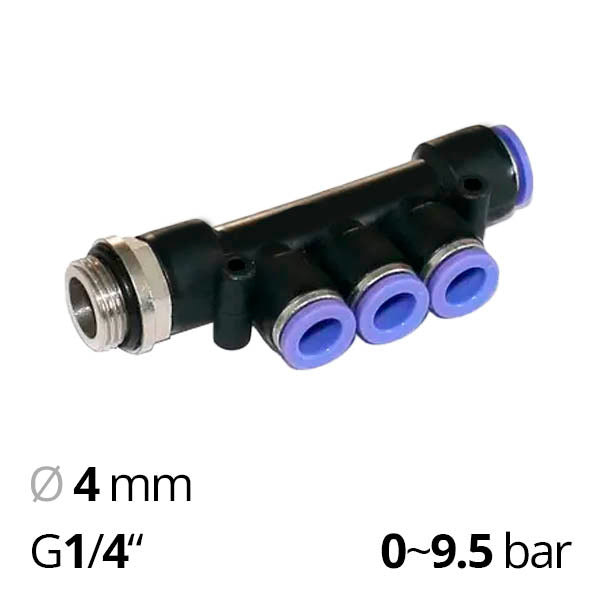

SF-EPKB 4-G02

Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance

Zanga diameter=4 mm Thread size=G 1/4

SF-EPKB 4-G02

155,94 UAH

In Stock

SF-EPKB 6-G01

Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance

Zanga diameter=6 mm Thread size=G 1/8

SF-EPKB 6-G01

155,94 UAH

In Stock

SF-EPKB 6-G02

Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance

Zanga diameter=6 mm Thread size=G 1/4

SF-EPKB 6-G02

155,94 UAH

In Stock

SF-EPKB 8-G02

Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance

Zanga diameter=8 mm Thread size=G 1/4

SF-EPKB 8-G02

187,14 UAH

In Stock

SF-EPKB 8-G03

Collet adapter SF-EPKB for 4 pipes, with external thread at the entrance

Zanga diameter=8 mm Thread size=G 3/8

SF-EPKB 8-G03

155,94 UAH

In Stock

Technical specifications

Tube O.D.

4 мм, 6 мм, 8 мм

Connection type

With external thread, Collet fitting

Thread

G 1/4", G 1/8", G 3/8"

Body material

Plastic

Inlet pressure

9.5 bar

Variations

Union

Fitting type

Splitter

Description

At Specialist, you can buy the SF-EPKB T-shaped push-in splitter fitting for six tubes with an outer diameter of 4, 6, 8, 10, 12, or 16 mm. At the inlet side — male metric thread M5 or pipe cylindrical thread G1/8", 1/4", 3/8", 1/2"

The fittings are made using nickel-plated bronze (thread) and technical plastic (push-in part). NBR gaskets are used for sealing in the pipeline. Threads are sealed with an NBR ring. Operating temperature range from minus 10 to plus 60°C. The plastic fitting SF-EPKB is designed for compressed air pressure up to 9.5 bar, as well as water and other working environments compatible with the fitting materials.
