Bronze fitting SF-Z2010 series corner adapter equal passage bronze with external thread

Do you have any questions about the product?
We will be happy to answer them in messengers

Bronze fitting SF-Z2010 series corner adapter equal passage bronze with external thread

Name: Bronze fitting SF-Z2010 series corner adapter equal passage bronze with external thread
Brand: Specialist
SKU: SF-Z2010 1/8
Price: 75.72 UAH
Availability: InStock

In Stock

Thread size

G 1/8 G 1/4 G 3/8 G 1/2

Model

SF-Z2010 1/8

Manufacturer

Specialist

from 75,72 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SF-Z2010 1/8

Bronze fitting SF-Z2010 series corner adapter equal passage bronze with external thread

Thread size=G 1/8

SF-Z2010 1/8

75,72 UAH

In Stock

SF-Z2010 1/4

Bronze fitting SF-Z2010 series corner adapter equal passage bronze with external thread

Thread size=G 1/4

SF-Z2010 1/4

102,90 UAH

In Stock

SF-Z2010 3/8

Bronze fitting SF-Z2010 series corner adapter equal passage bronze with external thread

Thread size=G 3/8

SF-Z2010 3/8

175,74 UAH

In Stock

SF-Z2010 1/2

Bronze fitting SF-Z2010 series corner adapter equal passage bronze with external thread

Thread size=G 1/2

SF-Z2010 1/2

230,04 UAH

In Stock

Technical specifications

Connection type

With external thread

Thread

1/8″, 1/4″, 3/8″, 1/2″

Body material

Nickel-plated bronze

Variations

Straight connector

Fitting type

Angular 90°

Description

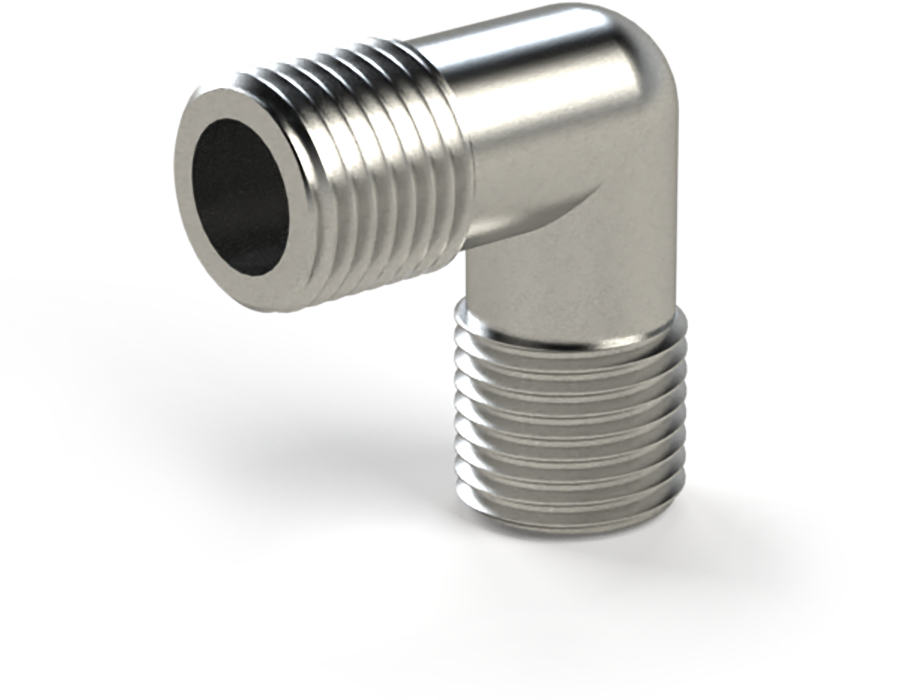

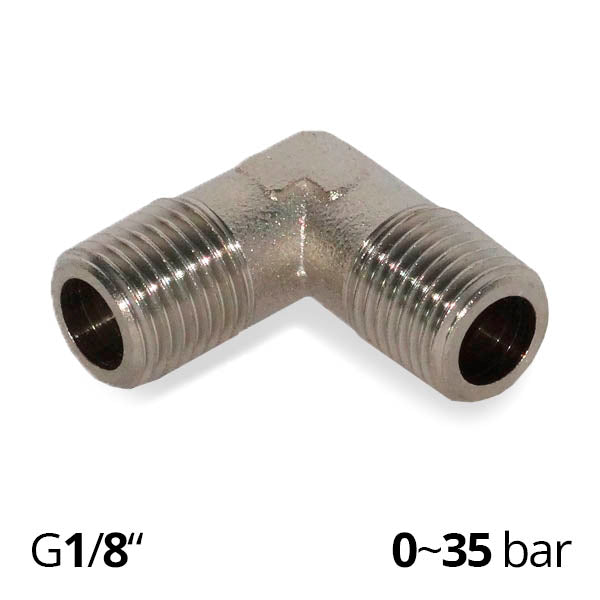

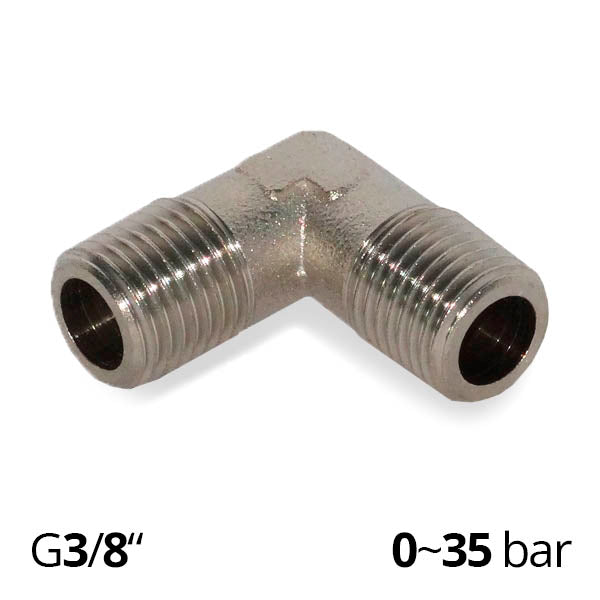

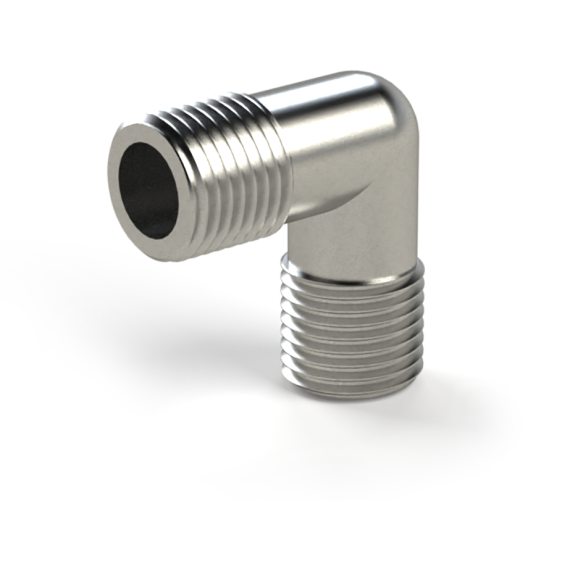

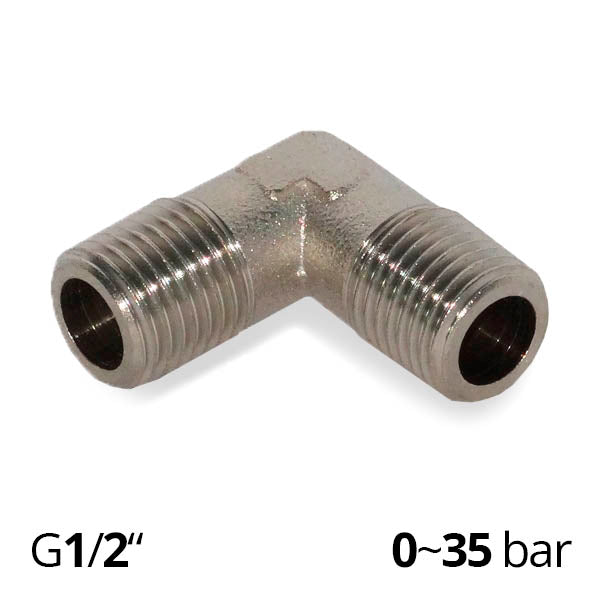

Bronze threaded fitting series SF-Z2010 is a metal 90° elbow transitional L-shaped connector with external (male) thread. Connection threading can be metric M5 or cylindrical pipe G1/8″, G1/4″, G3/8″, G1/2″, G3/4″, G1″, identical on both sides.

Nickel-plated bronze is used for manufacturing these metal threaded fittings. The SF-Z2010 series fittings are designed for use with compressed air under high pressure up to 35 bar (3.5 MPa). When used with other working mediums compatible with the fitting materials, the permissible working pressure and temperature may differ from the values specified for compressed air.
