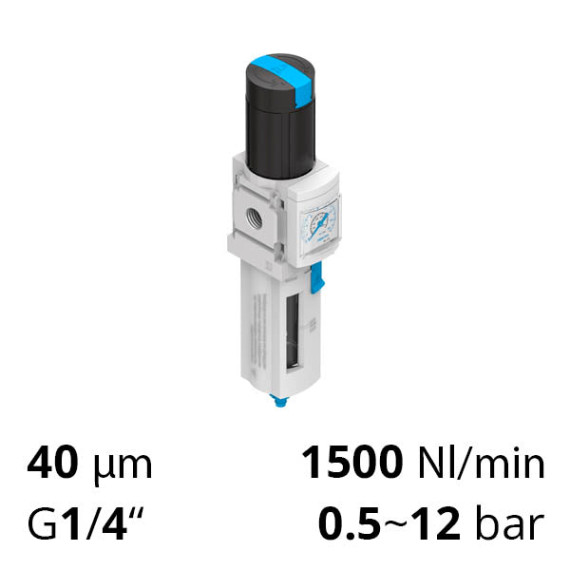

Festo air filter-regulator with built-in cylinder lock and pressure gauge
In Stock
Product Code:
MS4-LFR-1/4-D7-ERM-AS
Brand:
Festo
2 947,20 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Rotary regulator (Festo) with built-in lock of the MS4-LFR-1/4-D7-ERM-AS series is designed for precise air pressure regulation in the industry. This product combines ease of use with reliable features to ensure stable performance and accuracy when adjusting output pressures in various systems.
Main Features of the Pressure Regulator with Filter
- Integrated Cylinder Lock: Ensures secure locking to prevent unauthorized pressure adjustments, providing stable operation and safety.
- Pressure Regulation: Allows precise adjustment of output pressure using a rotary knob, enabling accurate regulation from minimum to operational levels.
- Spring Locking Mechanism (Spring-loaded locking mechanism): Automatically sets the knob to control mode during unlocking, increasing operational efficiency.
- Durable Construction: Made of robust materials that resist moisture and airborne contaminants, ensuring long-term reliability. Housing materials (polymers and aluminium) are corrosion-resistant and non-reactive with the environment.
- Compatibility: Suitable for use with filter regulators (MS...-LFR), air pressure regulators (MS...-LR(B)), and precise pressure regulators (MS...-LRP(B)), covering a wide range of industrial tasks.
Installation and Maintenance of MS4-LFR-1/4-D7-ERM-AS Air Filter Regulator
- Mounting Options: Can be installed using a mounting bracket (MS...-WR) for reliable fixation in various configurations, ensuring stability during operation.
- Easy Adjustment: Intuitive controls allow easy pressure setting to ensure optimal performance according to specific operational requirements. Extended documentation is available for the regulator.
- Technical Maintenance: Measures are provided for easy disassembly and assembly for cleaning or component replacement, minimizing downtime and maintenance costs.
| Features | Value |
|---|---|
| Size | 4 |
| Actuation Protection | Rotary knob with locking |
| Filtration Degree | 40 µm |
| Condensate Drainage | Manually unscrewable |
| Construction | Filter regulator with manometer |
| Maximum Condensate Capacity | 19 ml |
| Regulator Function | Constant outlet pressure |
| Container Lid | Plastic protective cover |
| Condensate Separation Degree | >75% |
| Manometer | With manometer |
| Operating Pressure | 0.08 MPa ... 1.4 MPa (0.8 bar ... 14 bar) |
| Pressure Adjustment Range | 0.5 bar ... 12 bar |
| Maximum Pressure Hysteresis | 0.25 bar |
| Standard Nominal Flow | 1500 l/min (standardized according to DIN 1343) |
| Operating Medium | Compressed air according to ISO 8573-1:2010 [-:4:-] Inert gases |
| Corrosion Resistance Class (CRC) | 2 - moderate corrosion influence |
| Storage Temperature | -10 °C ... 60 °C |
| Outlet Air Purity Class | Compressed air according to ISO 8573-1:2010 [7:4:4] |
| Medium Temperature | -10 °C ... 60 °C |
| Ambient Temperature | -10 °C ... 60 °C |
| Pore Size | <40 µm |
| Product Weight | 275 g |
| Mounting | Front panel mounting Inline mounting With accessories |
| Inlet and Outlet | G1/4 |
| Material Information | Compliant with RoHS Mounting plate material: Die-cast aluminium Control panel material: PA, POM Seal material: NBR Filter material: PE Housing material: Die-cast aluminium Diaphragm material: NBR Container material: PC Separator material: POM |
Applications for Filter Regulator with Manometer
- Industrial automation
- Pneumatic systems
- Manufacturing processes
- Calibration and testing of equipment
