Knife gate latch DU 125 cast iron SCBF-PZ673X-10JC-125 with flywheel

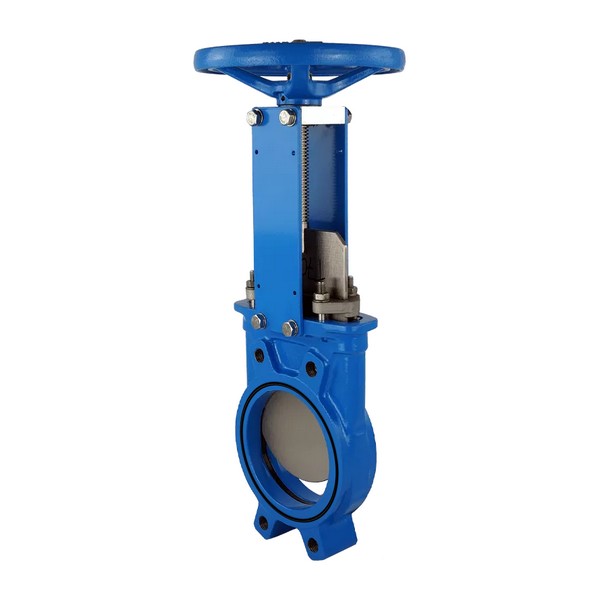

The model SCBF-PZ673X-10JC-125-M is a cast iron wedge gate valve wafer style DN125 PN10 with a rising stem and handwheel for manual closure. This bidirectional knife gate valve DN 125 made of cast iron is designed to work with media with or without pressure 9.8 bar and temperatures up to 80°C, including for gases, liquids, and bulk materials.

Specialist company offers production of knife gate valves based on series from the online store, but with the desired client modifications: with rubber-covered wedge, stainless steel, more compact without rising stem, with high-temperature EPDM or Viton rubber. We will select materials for your working environment

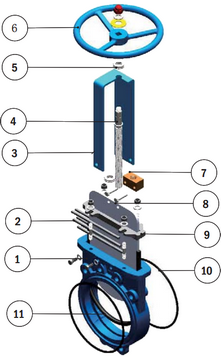

Design features of the standard gate SCBF-PZ673X-10JC-125-M with DN125

• Reinforced NBR. Rubber seal reinforced with steel wire around the perimeter of the seat under the wedge — helps retain shape, increases lifespan, and hermeticity.
• Rising spindle. Serves as an indication of the position of the gate DN125, and also provides a more reliable structure.
• WCB. Although WCB is referred to as iron, it is actually cast carbon steel — more impact-resistant and withstands high pressure, which is important for industrial shut-off valves.
• Standard flange connection: PN10, PN16, 10K, 150LB, TABLED, DIN.
• Operating pressure: 10 kg/cm² for DN125. When converting pressure to other units 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Designation PN 10.
