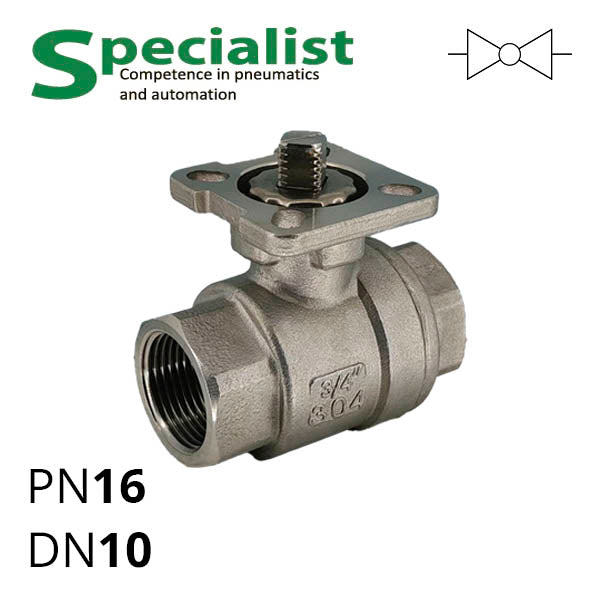

Ball valve 3/8″ stainless DN10 PN16 two-way two-fold SCBV-Q610F-16FC-10

Name: Ball valve 3/8″ stainless DN10 PN16 two-way two-fold SCBV-Q610F-16FC-10
Brand: Specialist
SKU: SCBV-Q610F-16FC-10
Price: 866.16 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 3/8

Model

Manufacturer

Specialist

from 866,16 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q610F-16FC-10

Ball valve 3/8″ stainless DN10 PN16 two-way two-fold SCBV-Q610F-16FC-10

Diameter of conditional passage=10 Thread size=G 3/8

SCBV-Q610F-16FC-10

866,16 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 3/8"

Матеріал диску

Stainless steel AISI 304 SS

Матеріал ущільнення

PTFE

Body material

Steel WCB

Nominal diameter

TWO 10

Тип засувки

Ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

Drive-in site

Description

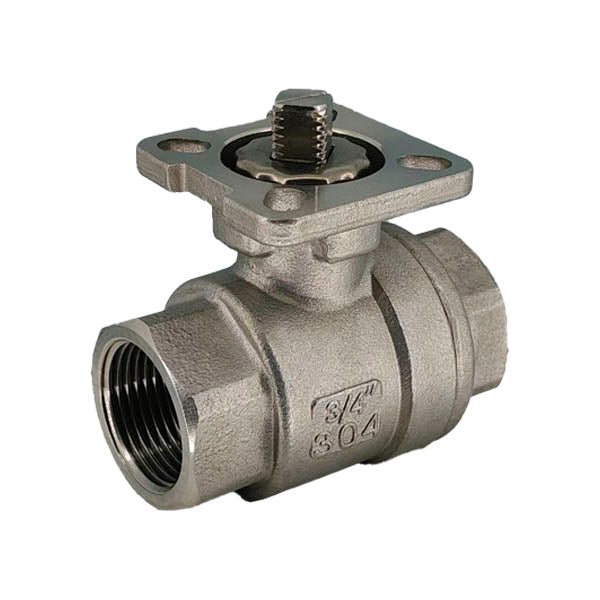

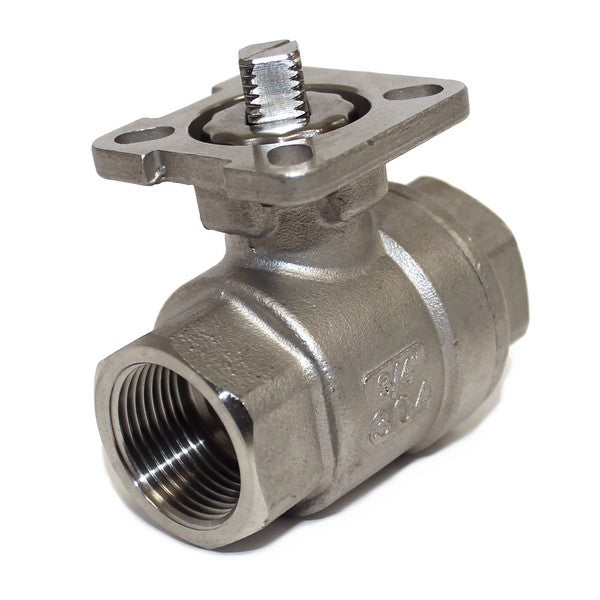

Two-piece two-way ball valves with 3/8″ thread of the SCBV-Q610F-16FC-10 series made of stainless steel and with PTFE seals are used to regulate and shut off the working medium - air, water, gas, oil, chemical products, and other substances compatible with the valve materials. The SCBV-Q610 ball valve has internal threaded connections on both sides and comes with a platform for an electric or pneumatic actuator.

Table — Main characteristics of ball valves SCBV-Q610F-16FC-10
DN	10
Seals and working temperatures	PTFE -40...180 °С
Max working pressure	16 bar (or on order 25, 40 or 64 bar)
Working medium	Air, water, gas, oil, chemical products and other materials compatible with the valve materials

Main elements of the ball valve

The list of components of the SCBV-Q610 ball valve is presented based on similar three-piece ball valves of the Q611 series (figure below). For two-piece ball valves SCBV-Q610, the same element materials are used.

Components of the ball valve with pneumatic actuator

Table — Material of components of the 2-piece 2-way ball valve
#	Name	Material
#	Name	C (by default)	P (on order)
1	Bolt	Stainless Steel 304	Stainless Steel 304
2	Flange*	Standard cast steel WCB	Stainless Steel CF8, CF6M
3	Seal	PTFE	PTFE
4	Ball	Stainless Steel 304	Stainless Steel 316
5	Body	Standard cast steel WCB	Stainless Steel CF8, CF6M
6	Nut	Stainless Steel 304	Stainless Steel 304
7	Stem	Stainless Steel 304	Stainless Steel 316
8	Gasket	PTFE	PTFE
9	Seal	PTFE	PTFE
10	Nut	Stainless Steel 304	Stainless Steel 316
11	Bracket Adapter	Stainless Steel CF8	Stainless Steel CF8
12	Adapter	Stainless Steel 304	Stainless Steel 304
13	Bolt	Stainless Steel 304	Stainless Steel 304
14	Pneumatic or electric actuator (ordered separately)
15	Turn Angle Indicator
