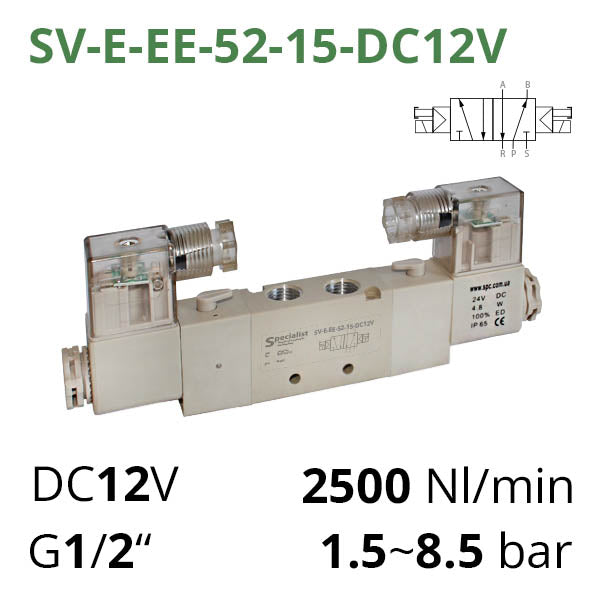

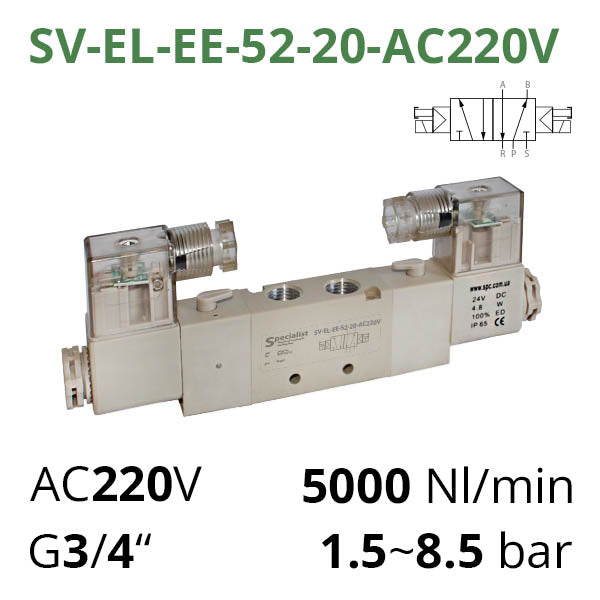

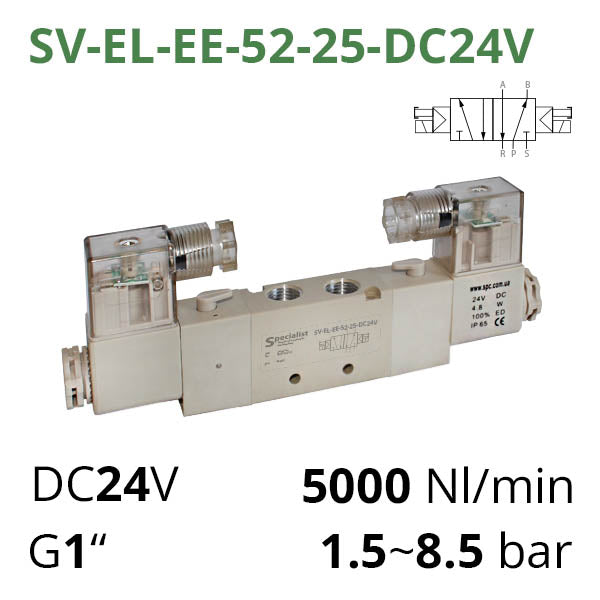

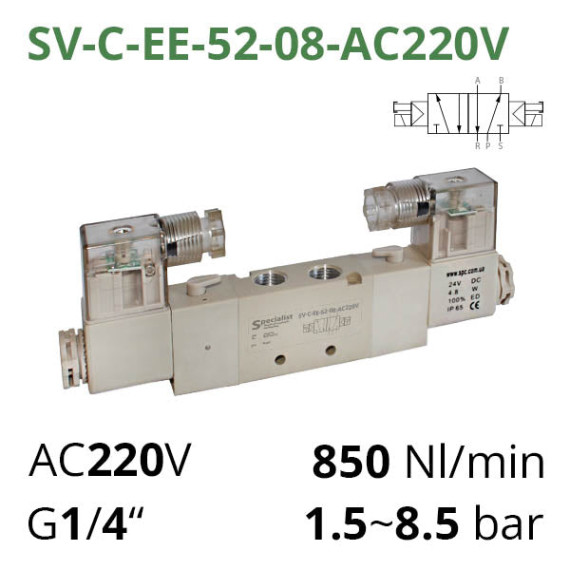

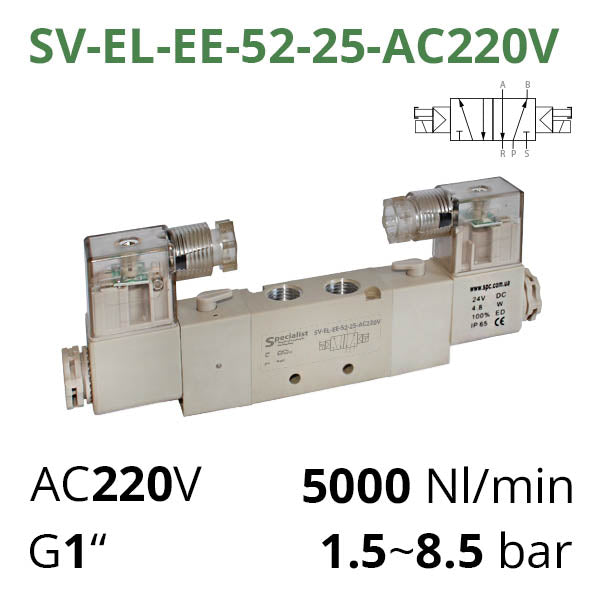

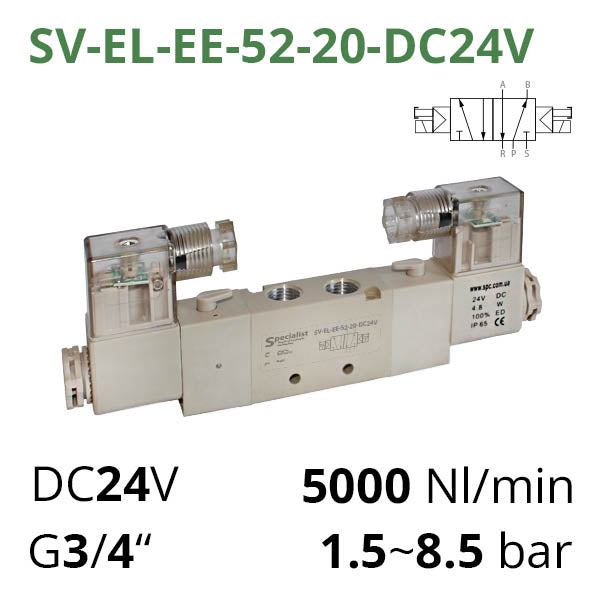

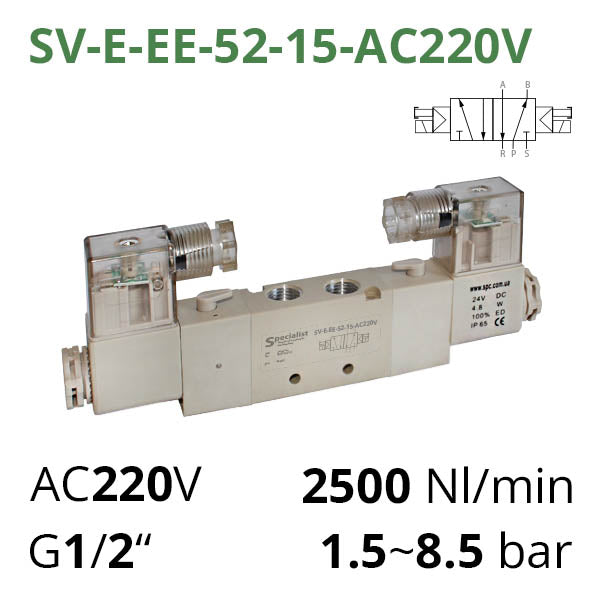

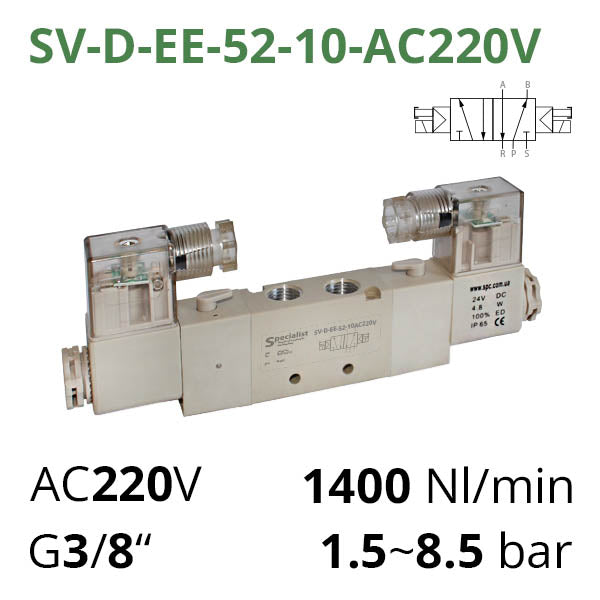

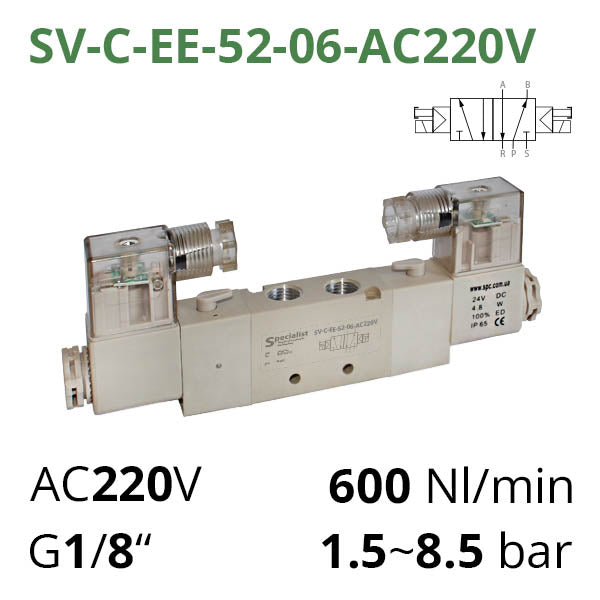

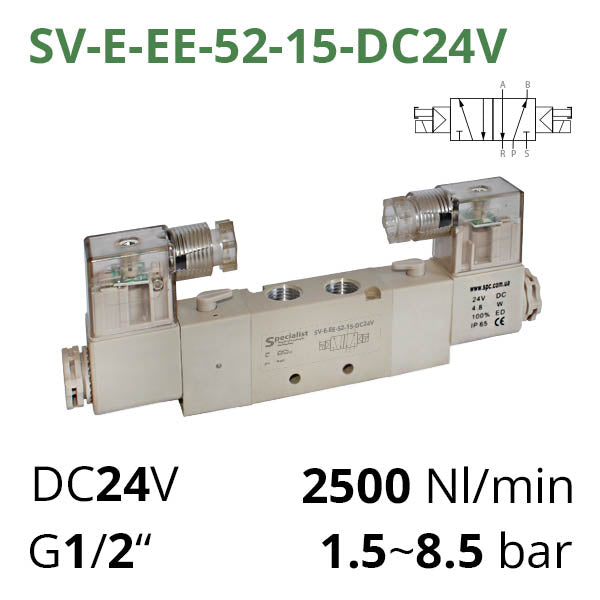

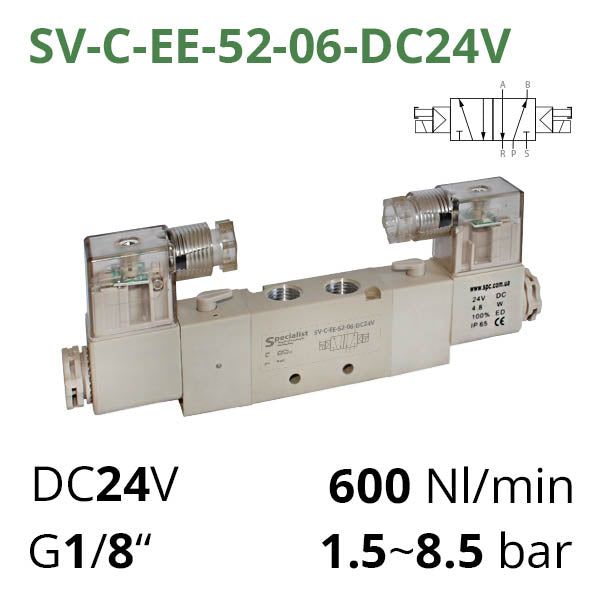

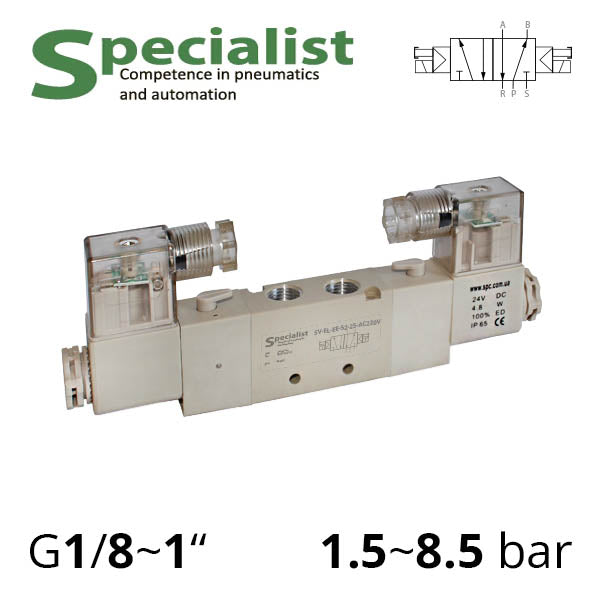

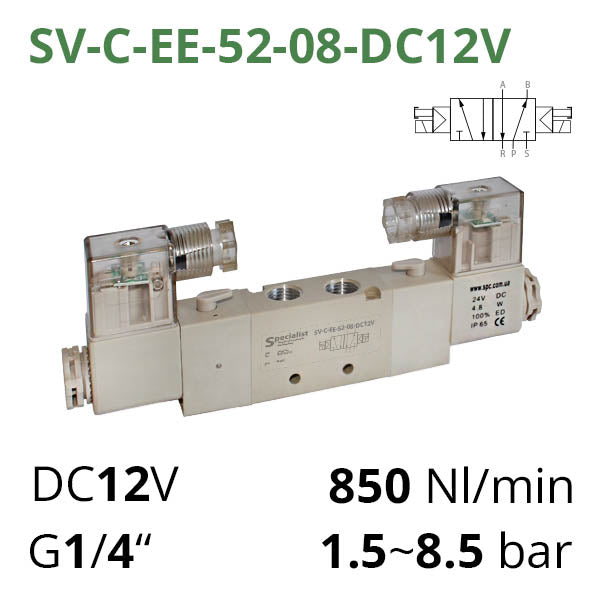

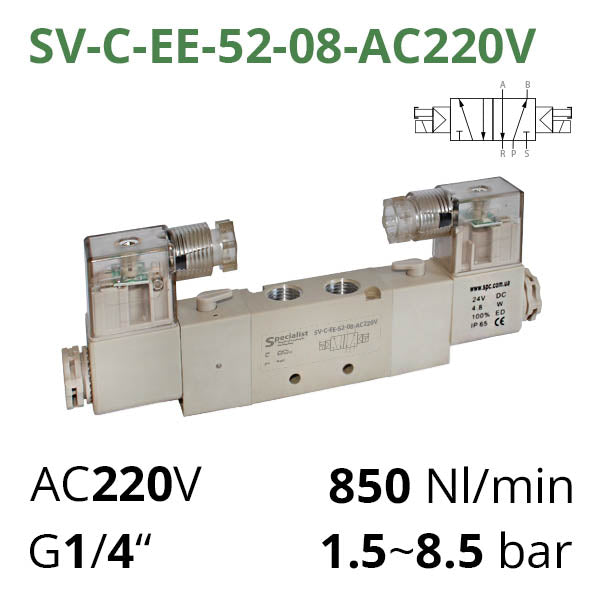

Pneumatic spool valves 5/2 five-line two-position series SV-C, SV-D, SV-E and SV-EL with double-sided electropneumatic control are designed for use with compressed air at an operating pressure of 1.5-8.5 bar. They can be used to control double-acting pneumatic cylinders or for other tasks.
Five-line pneumatic valves have five ports on the body, which are marked with numbers or letters:
Through the online shop, you can buy pneumatic valves with the most common internal tube cylindrical thread for inlets and outlets G1/8″, G1/4″, G3/8″, G1/2″ or G1″. When selecting pneumatic silencers or throttles, consider that the sizes of the exhaust ports of the pneumatic valve are smaller than the inlet-outlet (see the table below).
5/2 pneumatic valves with double-sided electric control are bistable (they maintain either of their two possible positions when controlling signals are absent or supplied simultaneously).
The client can choose coils with the necessary electrical characteristics when ordering:
Other solenoids (e.g., explosion-proof) are installed on the pneumatic valve only upon request.
Pneumatic valves are divided into series C, D, E and EL, which differ from each other by effective cross-sectional area, compressed air flow rate and sizes of connection ports.
| Model | SV-C-EE-52-06 | SV-C-EE-52-08 | SV-D-EE-52-10 | SV-E-EE-52-15 | SV-EL-EE-52-20 | SV-EL-EE-52-25 |
|---|---|---|---|---|---|---|
| Number of lines/positions | 5/2 | 5/2 | 5/2 | 5/2 | 5/2 | 5/2 |
| Effective cross-sectional area | 14 mm2 (CV=0.78) | 16 mm2 (CV=0.89) | 30 mm2 (CV=1.67) | 50 mm2 (CV=2.79) | 95 mm2 (CV=5.0) | 110 mm2 (CV=6.0) |
| Inlet-outlet connection | G1/8″ | G1/4″ | G3/8″ | G1/2″ | G3/8″ | G1″ |
| Exhaust connection | G1/8″ | G1/8″ | G1/4″ | G1/2″ | G1/2″ | G3/4″ |
| Nominal flow rate | 600 l/min | 850 l/min | 1400 l/min | 2500 l/min | 5000 l/min | |
| Working environment | Air, filtration fineness not less than 40 microns | |||||
| Type of control | Electropneumatic (pilot), pneumatic (direct) | |||||
| Operating pressure range | 1.5-8.5 bar | |||||
| Max. input pressure | 12 bar | |||||
| Operating temperature range | -5...+50 °C (in dry air without moisture) | |||||
| Supply voltage | 12 V DC (2.4 W); 24 V DC (3 W); 220 V AC (2.5 VA) | |||||
| Permissible change in supply voltage | -15%...+10% | |||||
| Protection degree, insulation class | IP65, class F | |||||
| Max. operating frequency | 5 cycles/sec | |||||
| Min. switching time | 0.05 s | |||||
