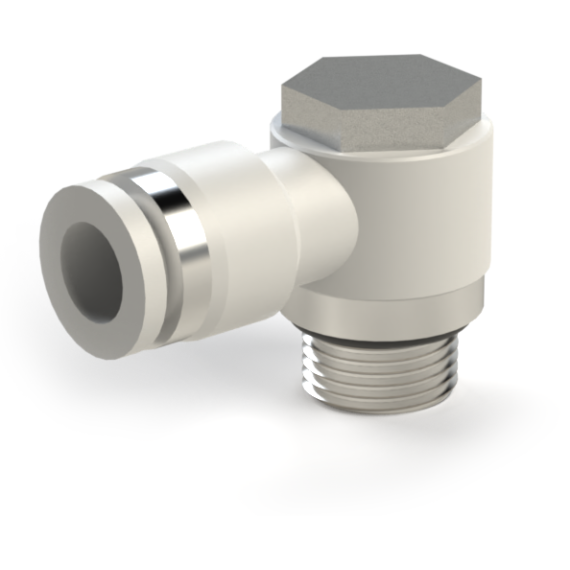

Collet angle fitting SF-EPH for tube, with external thread

Name: Collet angle fitting SF-EPH for tube, with external thread
Brand: Specialist
SKU: SF-EPH 6-G01
Price: 77.94 UAH
Availability: InStock

In Stock

Zanga diameter

12 mm 10 mm 8 mm 6 mm

Thread size

M5 G 1/2 G 1/4 G 1/8 G 3/8

Model

Manufacturer

Specialist

from 66,30 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 11 variants


Name

Model Price Availability Qty

Action

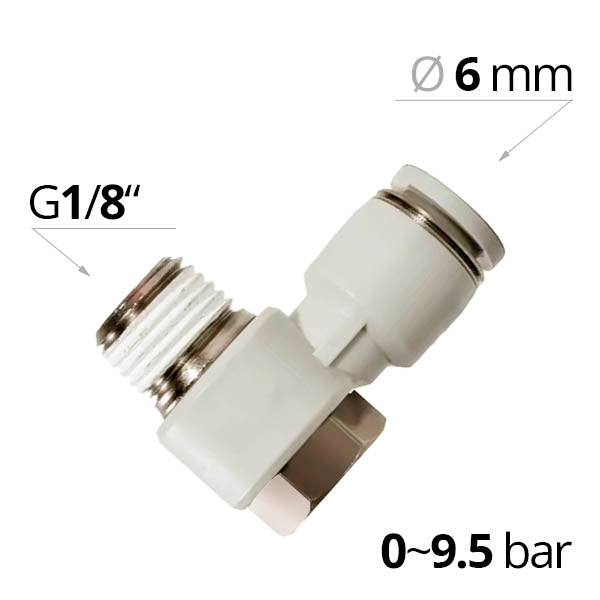

SF-EPH 6-G01

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=6 mm Thread size=G 1/8

SF-EPH 6-G01

77,94 UAH

In Stock

SF-EPH 6-G02

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=6 mm Thread size=G 1/4

SF-EPH 6-G02

105,24 UAH

In Stock

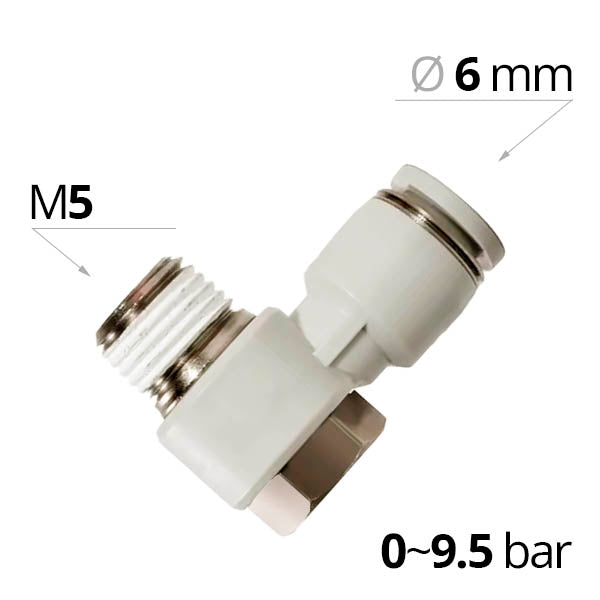

SF-EPH 6-M5

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=6 mm Thread size=M5

SF-EPH 6-M5

66,30 UAH

In Stock

SF-EPH 8-G01

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=8 mm Thread size=G 1/8

SF-EPH 8-G01

72,12 UAH

In Stock

SF-EPH 8-G02

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=8 mm Thread size=G 1/4

SF-EPH 8-G02

107,22 UAH

In Stock

SF-EPH 8-G03

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=8 mm Thread size=G 3/8

SF-EPH 8-G03

179,34 UAH

In Stock

SF-EPH 10-G02

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=10 mm Thread size=G 1/4

SF-EPH 10-G02

113,04 UAH

In Stock

SF-EPH 10-G03

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=10 mm Thread size=G 3/8

SF-EPH 10-G03

206,58 UAH

In Stock

SF-EPH 12-G02

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=12 mm Thread size=G 1/4

SF-EPH 12-G02

152,04 UAH

In Stock

SF-EPH 12-G03

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=12 mm Thread size=G 3/8

SF-EPH 12-G03

198,78 UAH

In Stock

SF-EPH 12-G04

Collet angle fitting SF-EPH for tube, with external thread

Zanga diameter=12 mm Thread size=G 1/2

SF-EPH 12-G04

323,52 UAH

In Stock

Technical specifications

Tube O.D.

6 mm, 8 mm, 10 mm, 12 mm

Connection type

Collet fitting, With external thread

Thread

G 1/2", G 1/4", G 1/8", G 3/8", M5

Body material

Plastic

Variations

Union

Fitting type

Angular 90°

Description

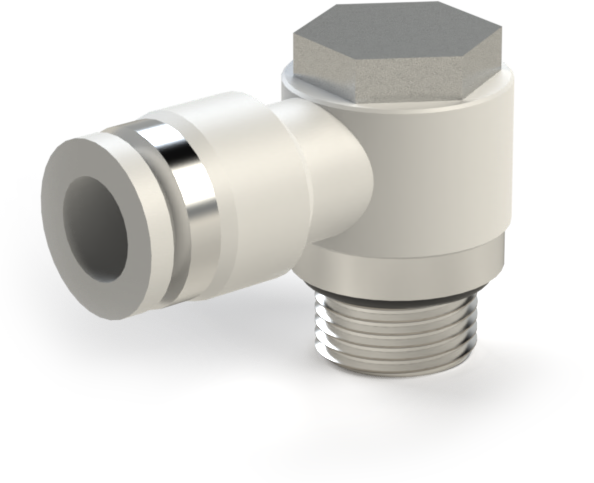

At "Specialist" you can purchase the L-shaped angle fitting SF-EPH with a push-in connection for tubing with an outer diameter of 4, 6, 8, 10, 12, or 16 mm. On the reverse side — male metric thread M5 or cylindrical pipe thread G1/8", 1/4", 3/8", 1/2", and 1/4". Angle - 90°.

The fittings are made from nickel-plated bronze (thread) and technical plastic (push-in part). An NBR sleeve is used for sealing in the pipeline. The threaded ring is sealed with an NBR ring. The operating temperature range is from minus 10 to plus 60°C. The plastic SF-EPH fitting is designed for compressed air pressure up to 9.5 bar, as well as water and other working media compatible with the materials of the angle fitting.
