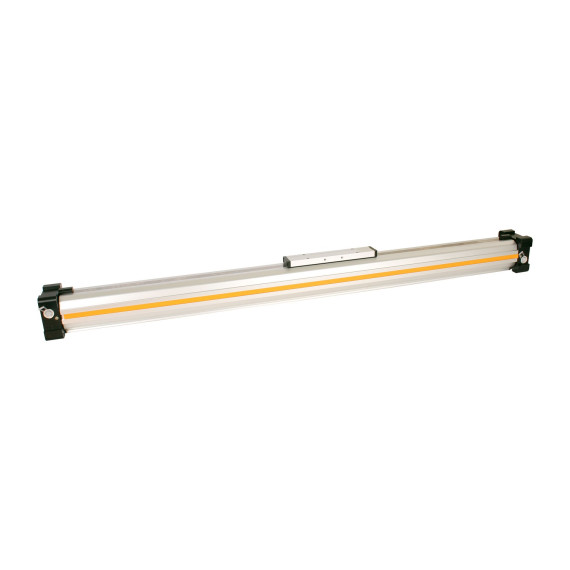

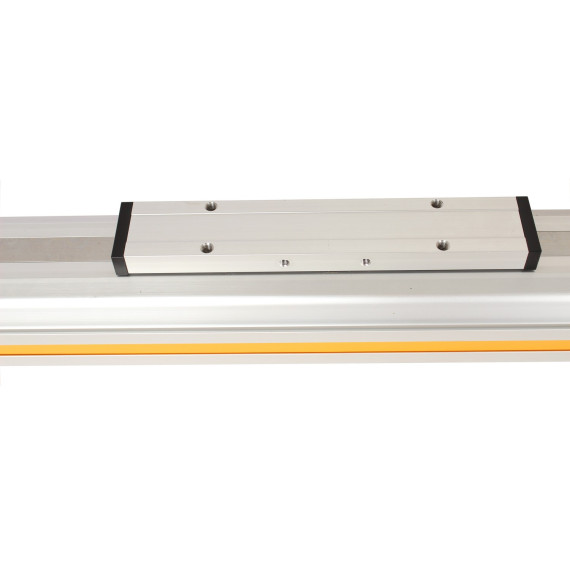

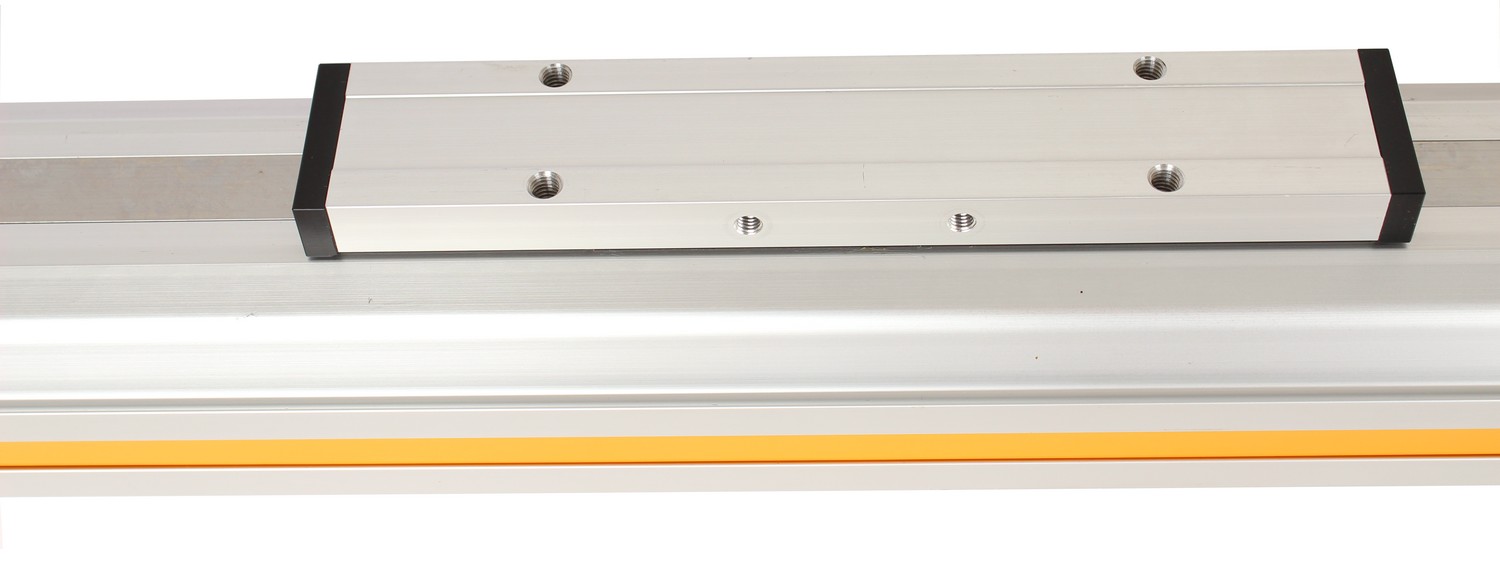

SC-OSP Series Linear Rodless Pneumatic Cylinders are pneumatic cylinders with a long stroke length up to 10 m and mechanical connection of the piston and slider (carriage) that moves along a guide rail.
The company "Specialist" imports these air cylinders to Ukraine with piston diameters from 16 to 80 mm. Please discuss the connection port placement on the cap and speed specifications with the manager when ordering.
| Diameter | 16 | 25 | 32 | 40 | 50 | 63 | 80 | ||
|---|---|---|---|---|---|---|---|---|---|
| Stroke | from 200 mm to 10 m | ||||||||
| Operation | Double-acting, Linear action | ||||||||
| Working medium | Air (after 40 µm filter) | ||||||||
| Working pressure range | from 1.6 to 7 bar | ||||||||
| Operating temperature range | -10 ~ +80 °C (with dry air, moisture-free) | ||||||||
| Moving speed | 50…200 mm/s (low-speed type on request) 200…4000 mm/s or up to 10'000 mm/s (high-speed type on request) | ||||||||
| Damping | Rubber washers | ||||||||
| Thread connection | M5x0.8 | G1/8″ | G1/4″ | ||||||
