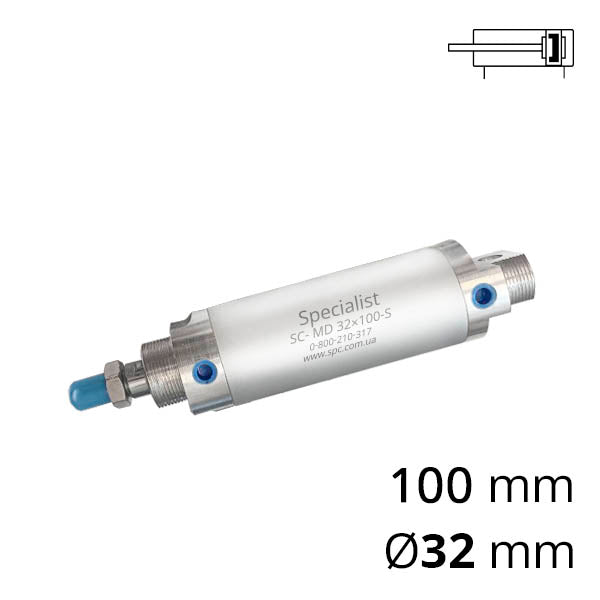

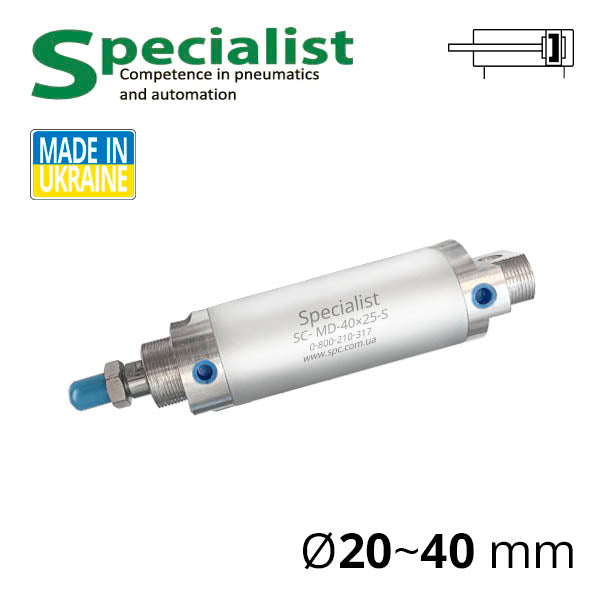

SC-MD series pneumatic cylinders are affordable round pneumatic cylinders with double-action, single-rod design, without cushioning. They can be used in low-frequency settings (up to 1 m/s). They can be utilised in industries as an analogue to the 27 series Camozzi, but there are structural differences — our pneumatic cylinders are dismountable and repairable. By default, we manufacture the rod from chrome steel, and the barrel and caps from aluminium.
| Action | Double |
|---|---|
| Materials | chrome steel (rod), aluminium (barrel, caps) |
| Mounting | cap nuts, clevis mounts or threaded shafts, feet, brackets |
| Stroke | from 10 to 1000 mm (in 1 mm increments) |
| Cylinder Diameter | 20, 25, 32, 40, 50, 63 mm |
| Operating Temperature | 0°C ÷ 80°C (with dry air -20°C) |
| Operating Pressure | from 1 to 10 bar |
| Speed (no load) | from 10 to 1000 mm/s |
| Operating Medium | clean dry air 25 μm, no need for lubrication supply |
