Name: Compact pneumatic cylinder of the SC-SDAR series with anti-rotation protection
Brand: Specialist
SKU: SC-SDAR
Price: 2278.62 UAH
Availability: InStock

All about the product
Technical specifications
Reviews (0)
Similar Products

Technical specifications

Діаметр поршню

12 мм, 16 мм, 20 мм, 25 мм, 32 мм, 40 мм, 50 мм, 63 мм, 80 мм, 100 мм

Довжина ходу

25 мм, 50 мм

Магніт

Без магніту, З магнітом

Description

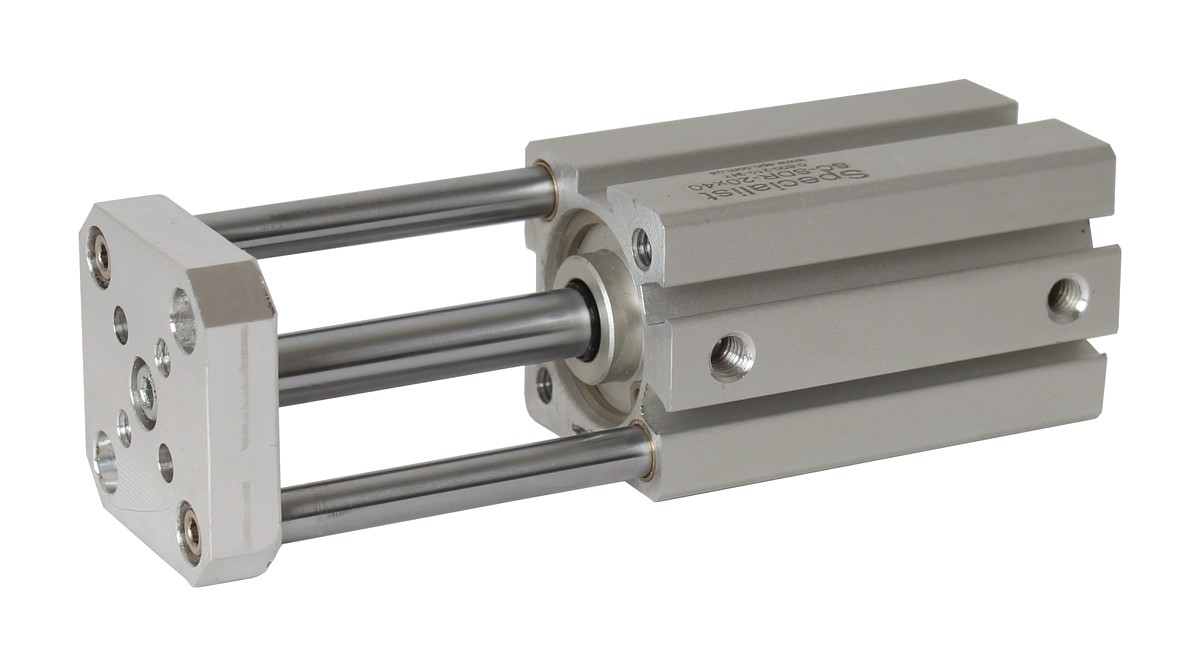

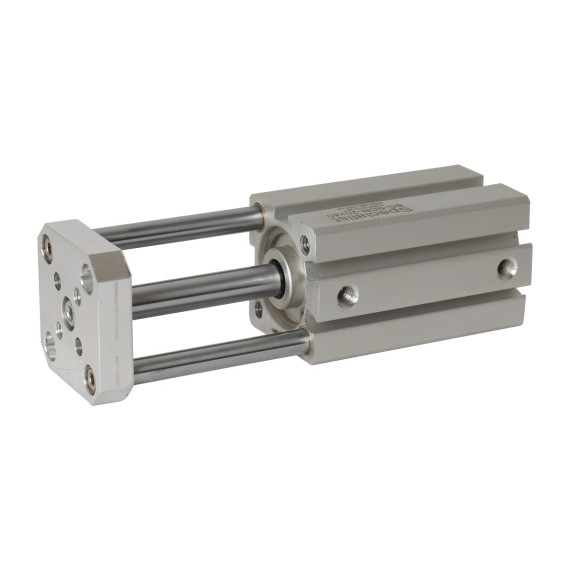

The SC-SDAR compact pneumatic cylinders with anti-rotation protection are double-acting air cylinders with a single rod and built-in anti-rotation guides that lock the platform at the end of the stroke and prevent its rotation. These pneumatic cylinders are used on packaging and labelling lines where positioning of the pneumatic drive and working speed less than 100 mm/s is important.

The SC-SDAR cylinders of our own production "Specialist" can be manufactured with a piston diameter from 12 to 100 mm and any stroke length in multiples of 5 mm, but not exceeding the maximum. The series does not have a built-in damping device, and rubber washers are used to cushion the impact of the piston against the cover. Such pneumatic cylinders are often found in Chinese-made equipment.

Table 1 — Technical specifications of pneumatic cylinders with anti-rotation platform SC-SDAR
Piston Diameter, mm	12	20	25	32	50	80
Maximum Stroke Length, mm	60	100	120	130
Thread Connection	M5×0.8			G1/8"	G1/4"	G3/8"
Type of Action	Double-acting
Working Medium	Compressed air after filtration to no less than 40 microns
Operating Pressure Range	0.1-10 bar
Maximum Inlet Pressure	12 bar
Operating Temperature	−10-70℃ (dry)
Damping	Damping washer
Sensor Type (for SC-SDR cylinder with piston magnet)	SC-CS1-J
