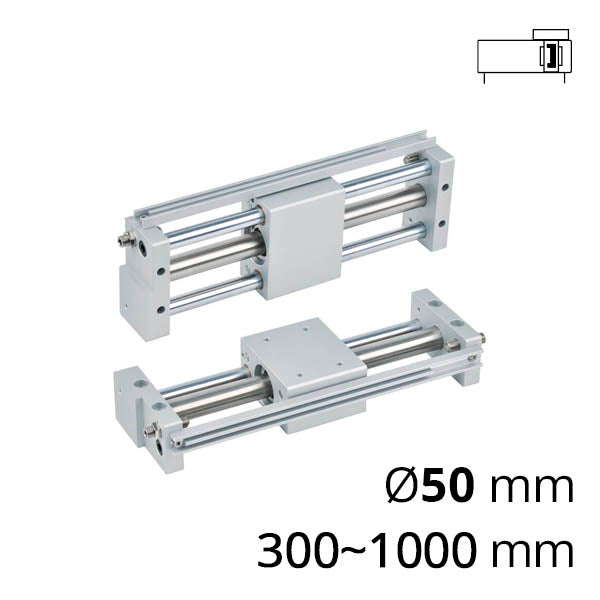

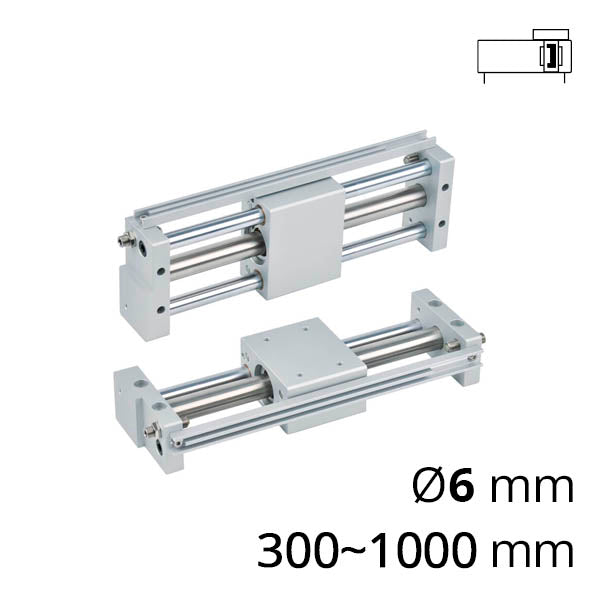

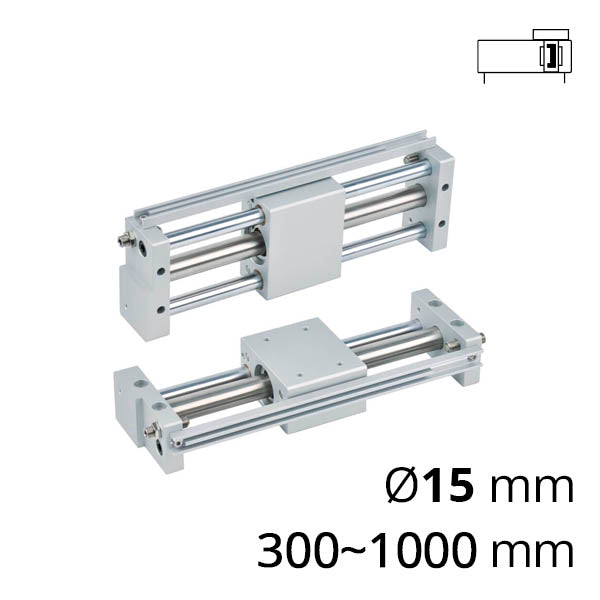

Magnetic rodless pneumatic cylinders with guides, SC-CG3 series, are linear pneumatic cylinders with a moving carriage that has a magnetic connection with the piston with a diameter from 6 to 63 mm and is equipped with two built-in sliding guides.
Rodless air cylinders, unlike classic designs, do not have a rod, therefore, are twice as short in length, and there's no air leakage due to rod seal wear. This makes them reliable. Moreover, the SC-CG3 linear pneumatic cylinders have a high working speed — up to 1 m/s.
You can order a magnetic cylinder with a bracket for sensor mounting and with hydrodampers for smooth stopping at the end of the stroke.
| Diameter | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
|---|---|---|---|---|---|---|---|---|---|
| Max Stroke, mm | 300 | 500 | 600 | 1000 | |||||
| Action | Double-acting, Linear action | ||||||||
| Working Medium | Compressed air (post-filtration 40 μm) | ||||||||
| Working Pressure Range | 1.8 ~7 Bar | ||||||||
| Working Temperature Range | -10 ~ +60 °C (dry air without moisture) | ||||||||
| Moving Speed | 50 ~ 1000 mm/s | ||||||||
| Damping | Rubber rings or hydrodampers (upon request) | ||||||||
| Connection Thread | M5x0.8 | G1/8” | G1/4” | ||||||
